Home >> Cadillac >> 2007 >> CTS V6-2.8L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Courtesy Lamps Inoperative

Courtesy Lamps Inoperative

Courtesy Lamps Inoperative

TEST

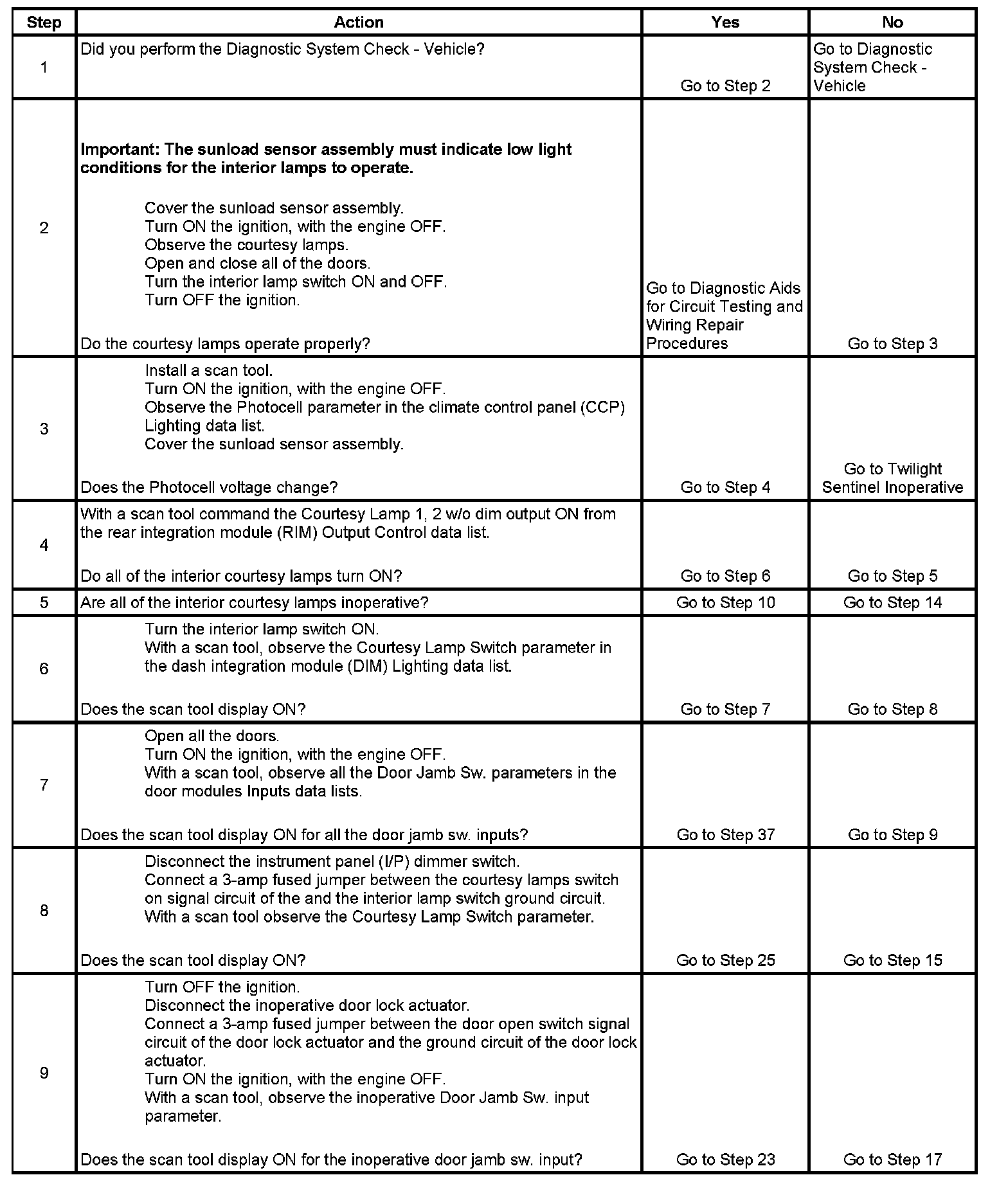

Step 1 - Step 9:

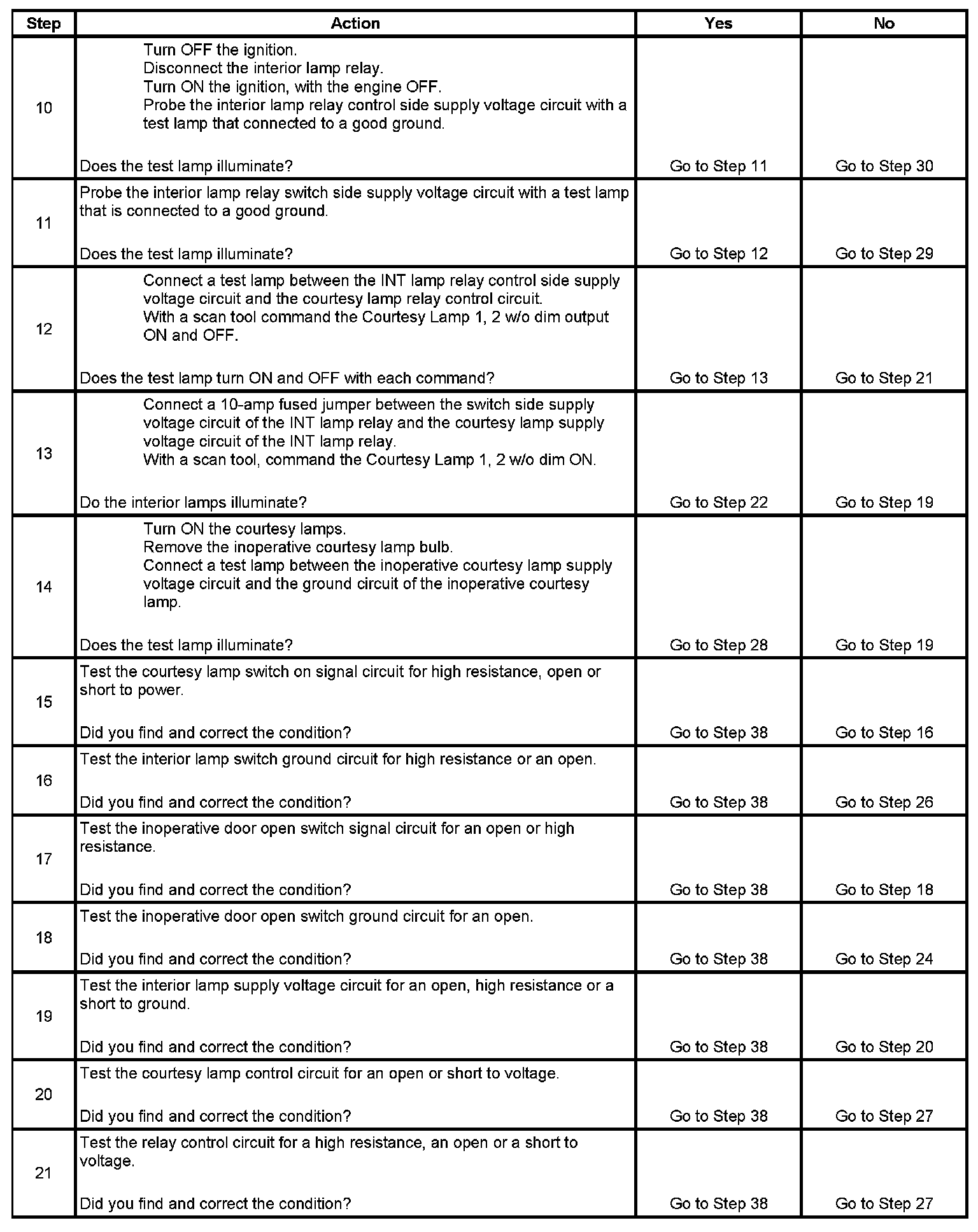

Step 10 - Step 21:

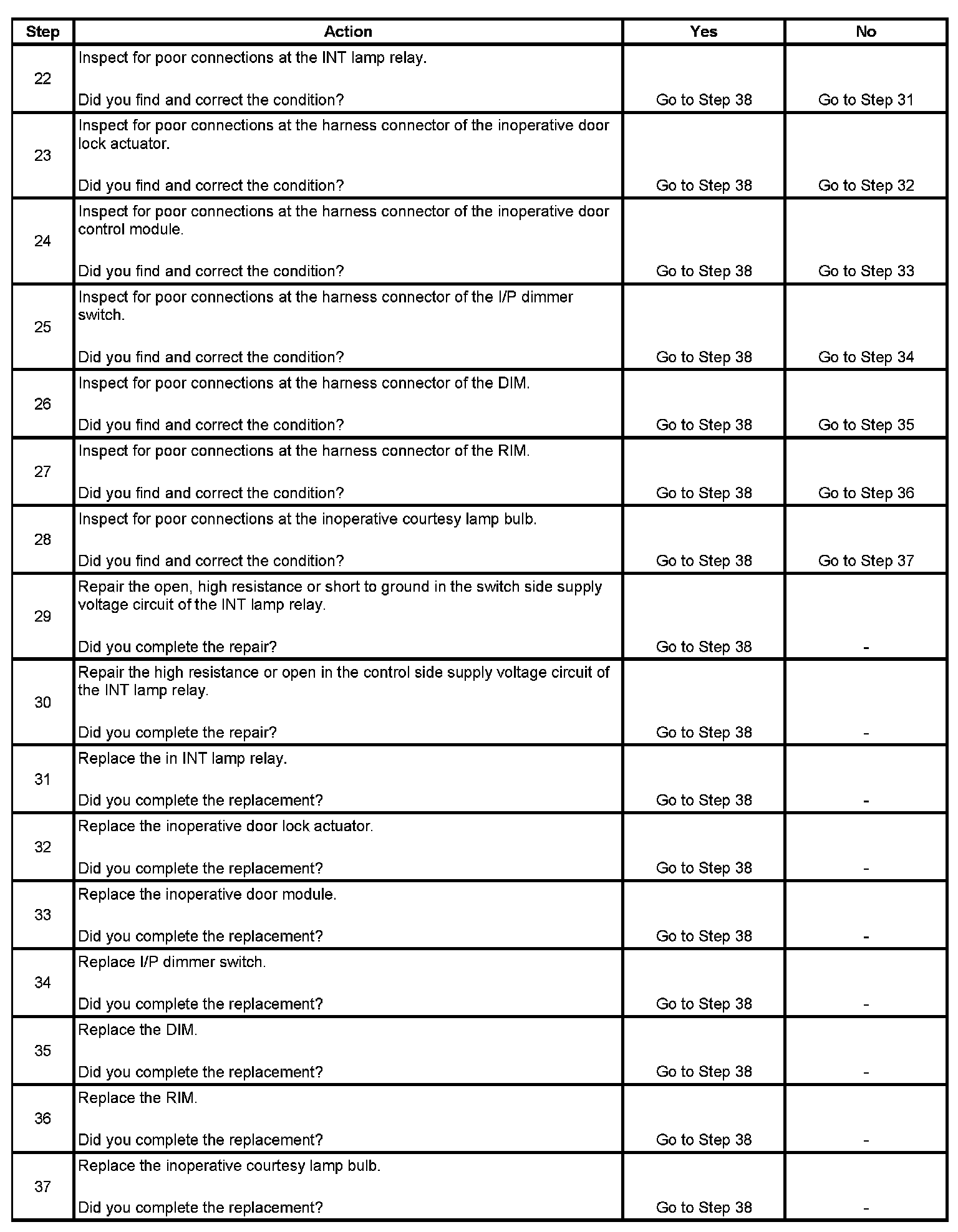

Step 22 - Step 37:

Step 38:
