Horn Switch: Locations

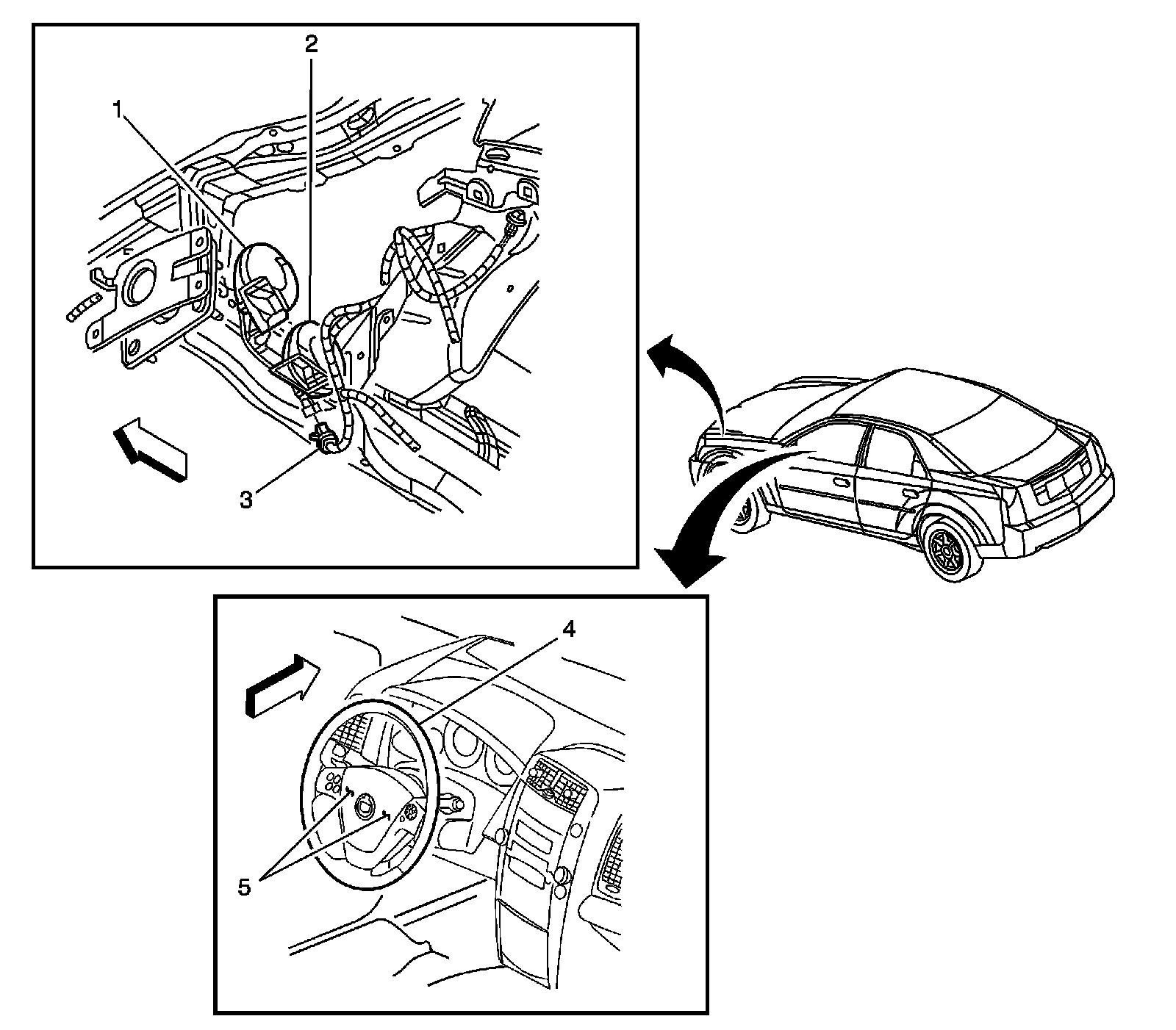

Horn Component Views

Horn Subsystem Components




1 - Horn - Low Note
2 - Horn - High Note
3 - Horn Assembly Connector
4 - Steering Wheel (LHD shown, RHD similar)
5 - Horn Switch (Part of Inflatable Restraint Steering Wheel Module)
