Interior Lights Diagram 1

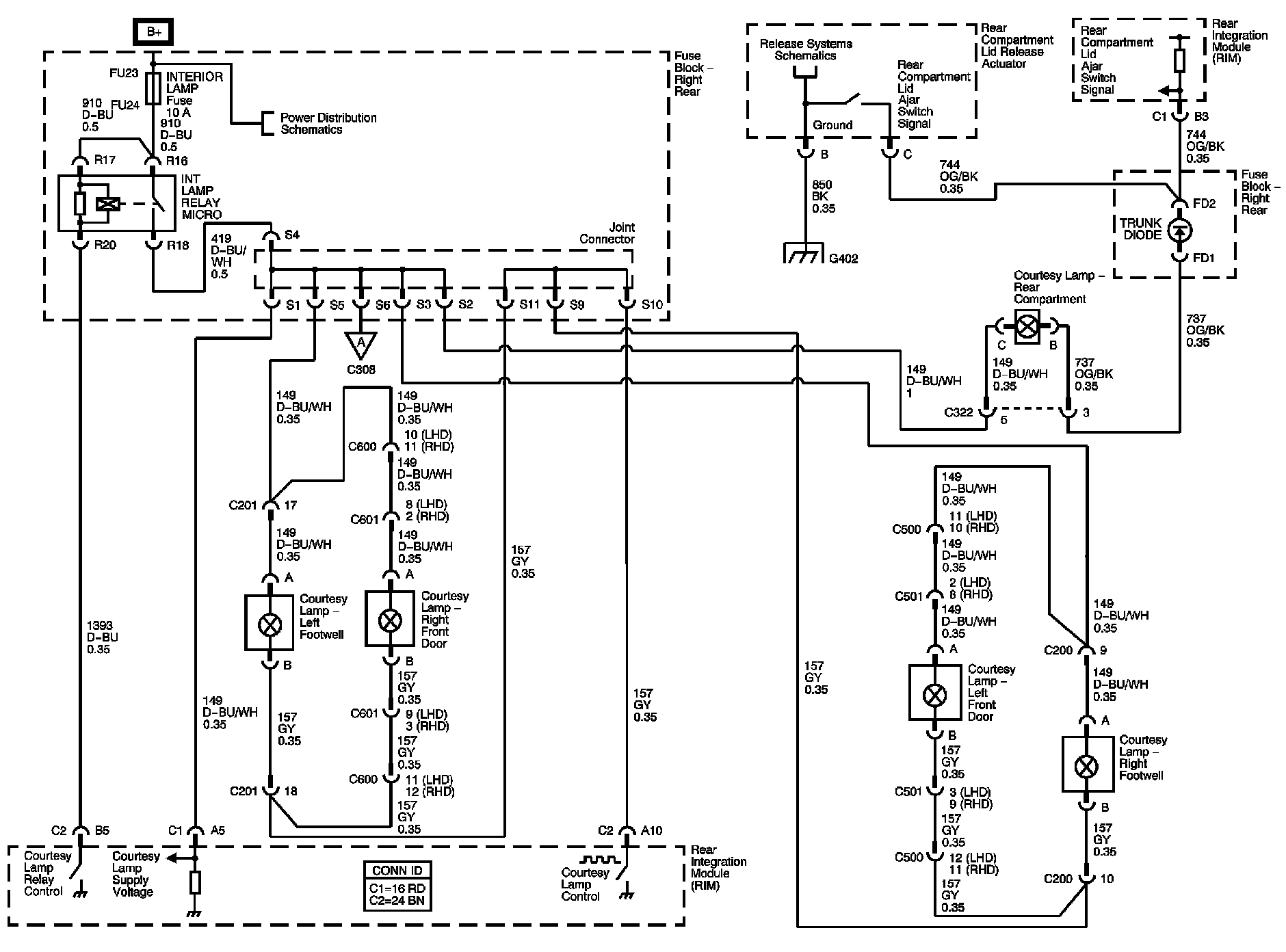

Interior Lights Schematics

Courtesy Lamps

Interior Lights Diagram 1:

Next Diagram: Interior Lights Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
