Secondary Camshaft Drive Chain Tensioner Replacement - Right



Secondary Camshaft Drive Chain Tensioner Replacement - Right Side

Removal Procedure

1. Remove the spark plugs in order to ease crankshaft/engine rotation.
2. Remove the engine front cover.

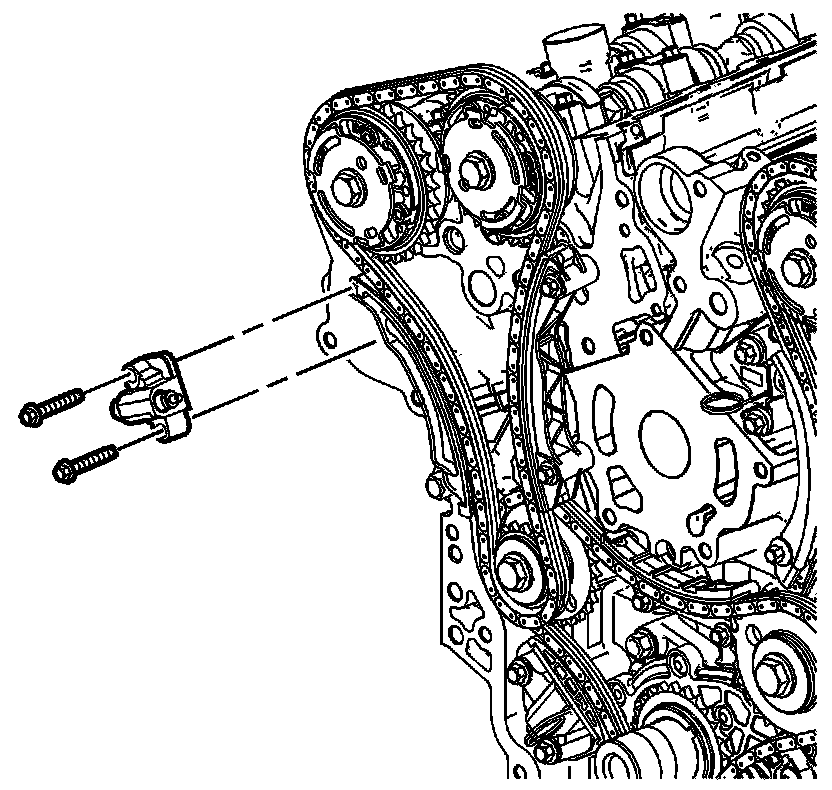

3. Remove the right bank secondary camshaft drive chain tensioner.

Installation Procedure




1. Install the right bank secondary camshaft drive chain tensioner.
2. Install the spark plugs.
3. Install the engine front cover.
