Primary Camshaft Drive Chain Tensioner Replacement



Primary Camshaft Drive Chain Tensioner Replacement

Removal Procedure




1. Remove the spark plugs in order to ease crankshaft/engine rotation.
2. Remove the engine front cover.

Important: If the entire camshaft timing system is not in Stage 2 ( Camshaft Timing Drive Chain Alignment Diagram (Second Design) ), mark the timing chain and sprockets in order to ensure proper reassembly.

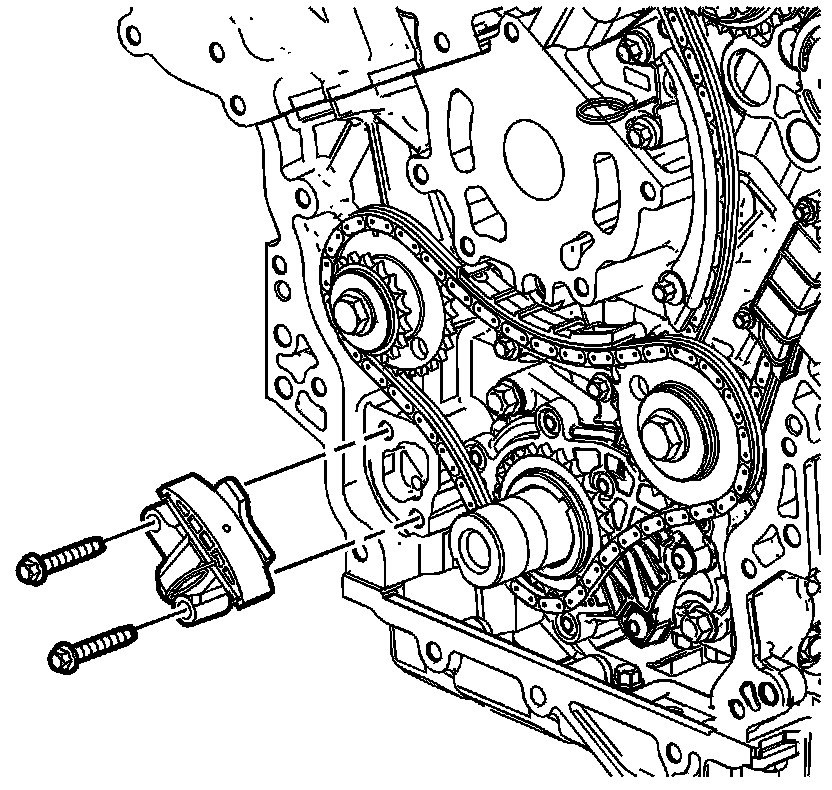

3. Remove the primary camshaft drive chain tensioner.

Installation Procedure




1. Install the primary camshaft drive chain tensioner.
2. Install the spark plugs.
3. Install the engine front cover.
