Secondary Camshaft Drive Chain Shoe Replacement - Left



Secondary Camshaft Drive Chain Shoe Replacement - Left Side

Removal Procedure

1. Remove the spark plugs in order to ease crankshaft/engine rotation.
2. Remove the engine front cover.

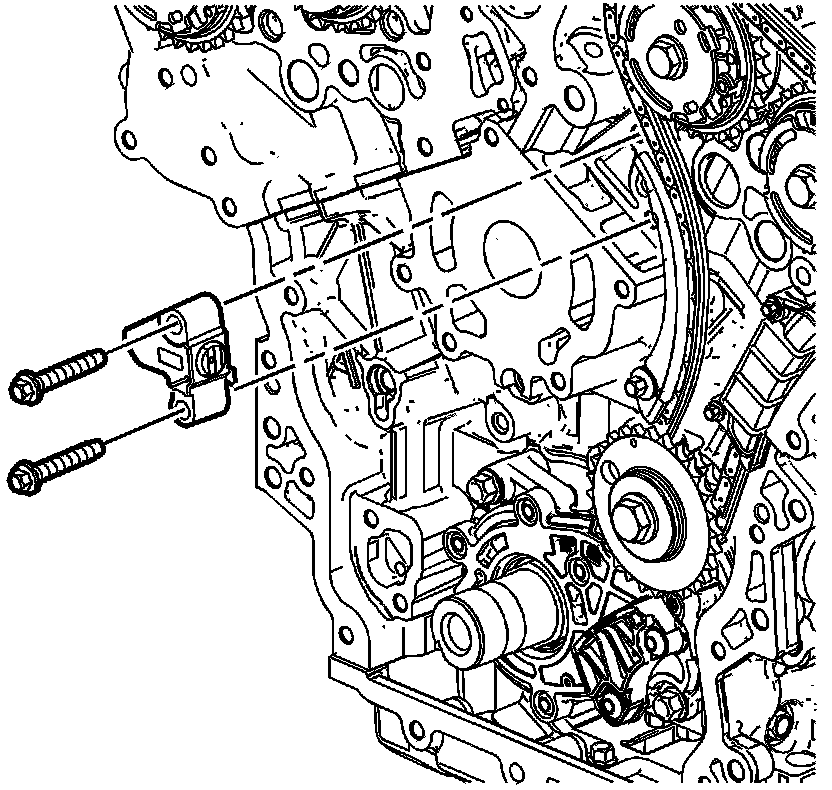

3. Remove the left bank secondary camshaft drive chain tensioner.

Installation Procedure




1. Install the left bank secondary camshaft drive chain tensioner.
2. Install the spark plugs.
3. Install the engine front cover.
