118. Secondary Camshaft Drive Chain Shoe Installation - Left Side

Secondary Camshaft Drive Chain Shoe Installation - Left Side




1. Ensure that the left secondary camshaft drive chain shoe (2) is being installed.

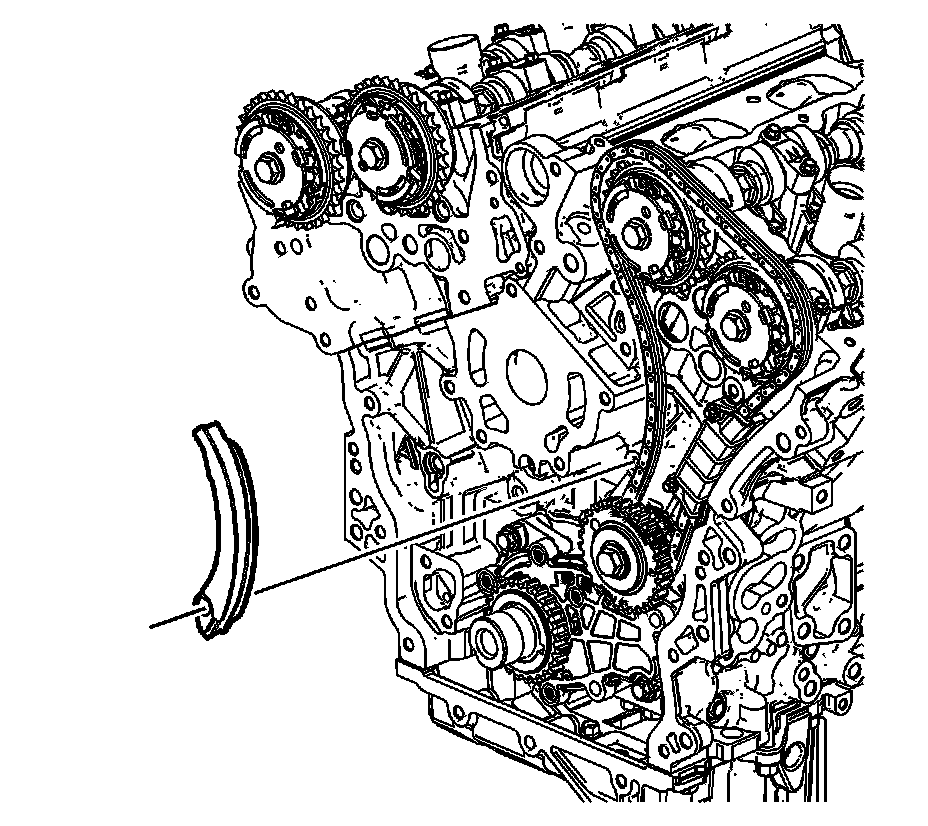

2. Position the left secondary camshaft drive chain shoe.





Notice: Refer to Fastener Notice.

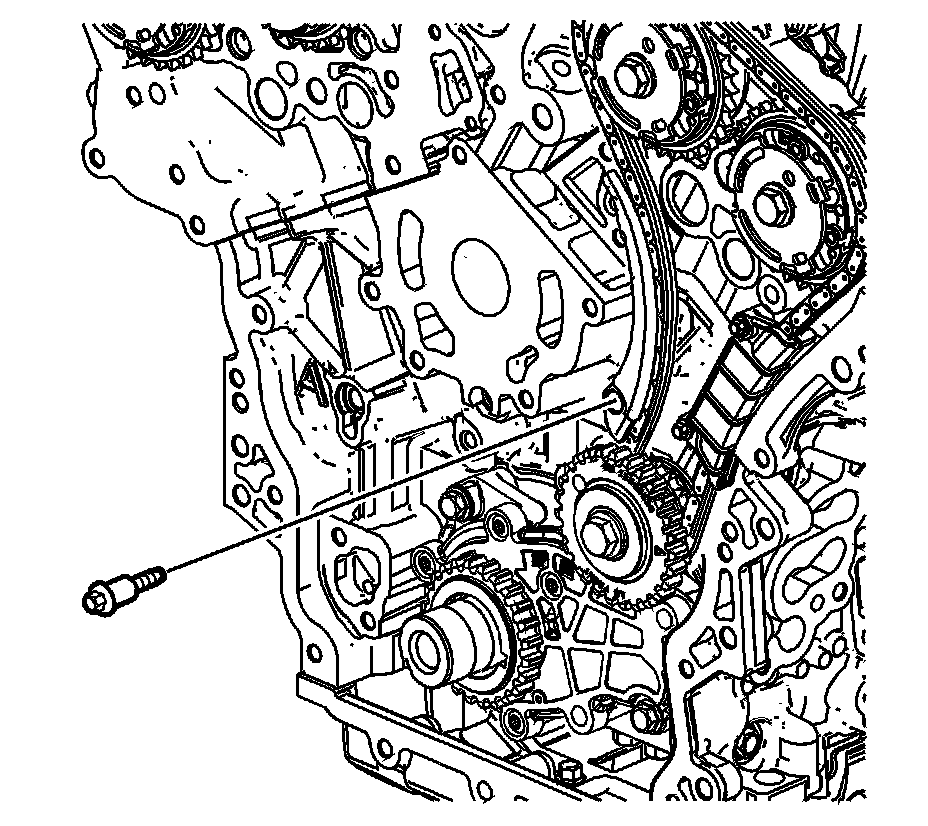

3. Install the secondary camshaft drive chain shoe bolt.

Tighten the secondary camshaft drive chain shoe bolt to 23 N.m (17 lb ft).
