Camshaft Position Actuator Replacement - Bank 2 (Left Side) Intake

Camshaft Position Actuator Replacement - Bank 2 (Left Side) Intake

Removal Procedure





Notice: Refer to Torque Reaction Against Timing Drive Chain Notice.

1. Remove the camshaft.

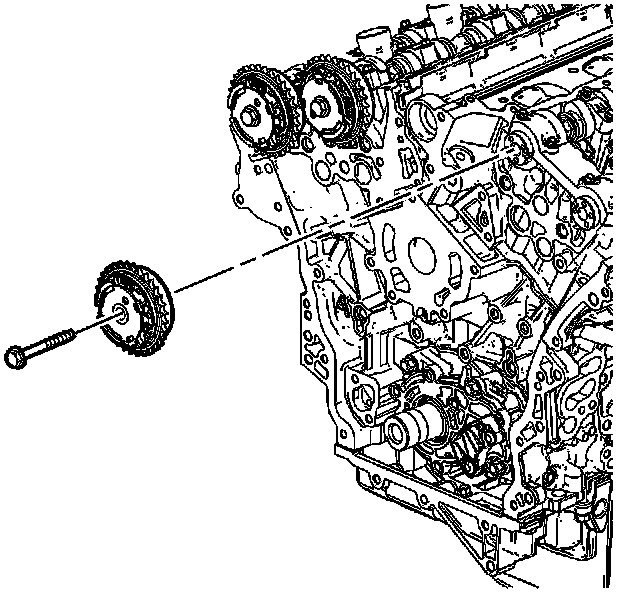

2. Remove the camshaft position actuator from the timing chain.

Installation Procedure




1. Install the camshaft position actuator to the timing chain.

Notice: Refer to Torque Reaction Against Timing Drive Chain Notice.

2. Install the camshaft.
