Passenger Compartment - Under Driver Seat



Harness Routing Views

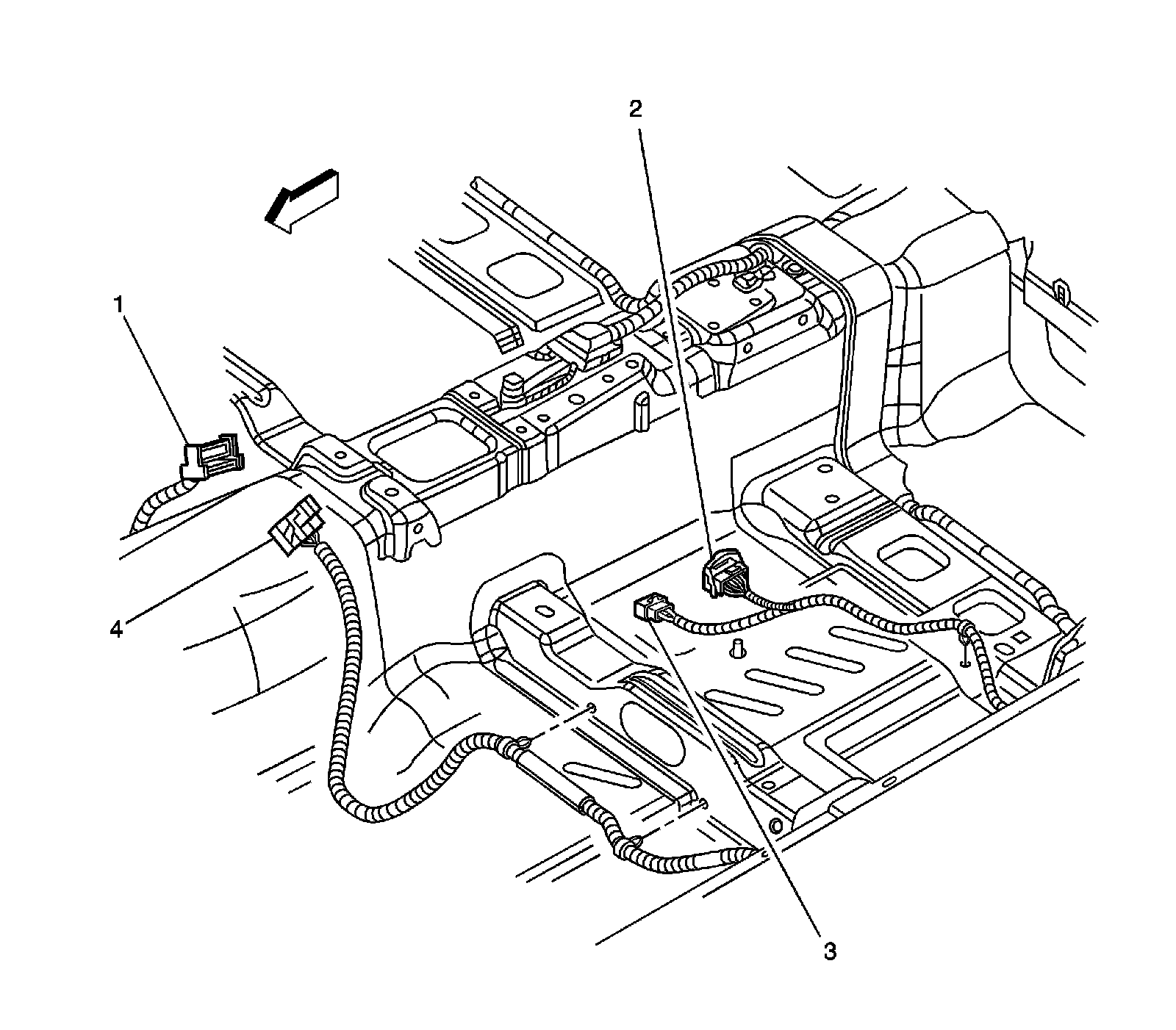

Passenger Compartment - Under Driver Seat




1 - C312 (LHD Shown, RHD Similar)
2 - C300 (LHD Shown, RHD Similar)
3 - C301 (LHD Shown, RHD Similar)
4 - C303 (LHD Shown, RHD Similar)
