Tire Monitoring System

Tire Pressure Monitoring System Schematics

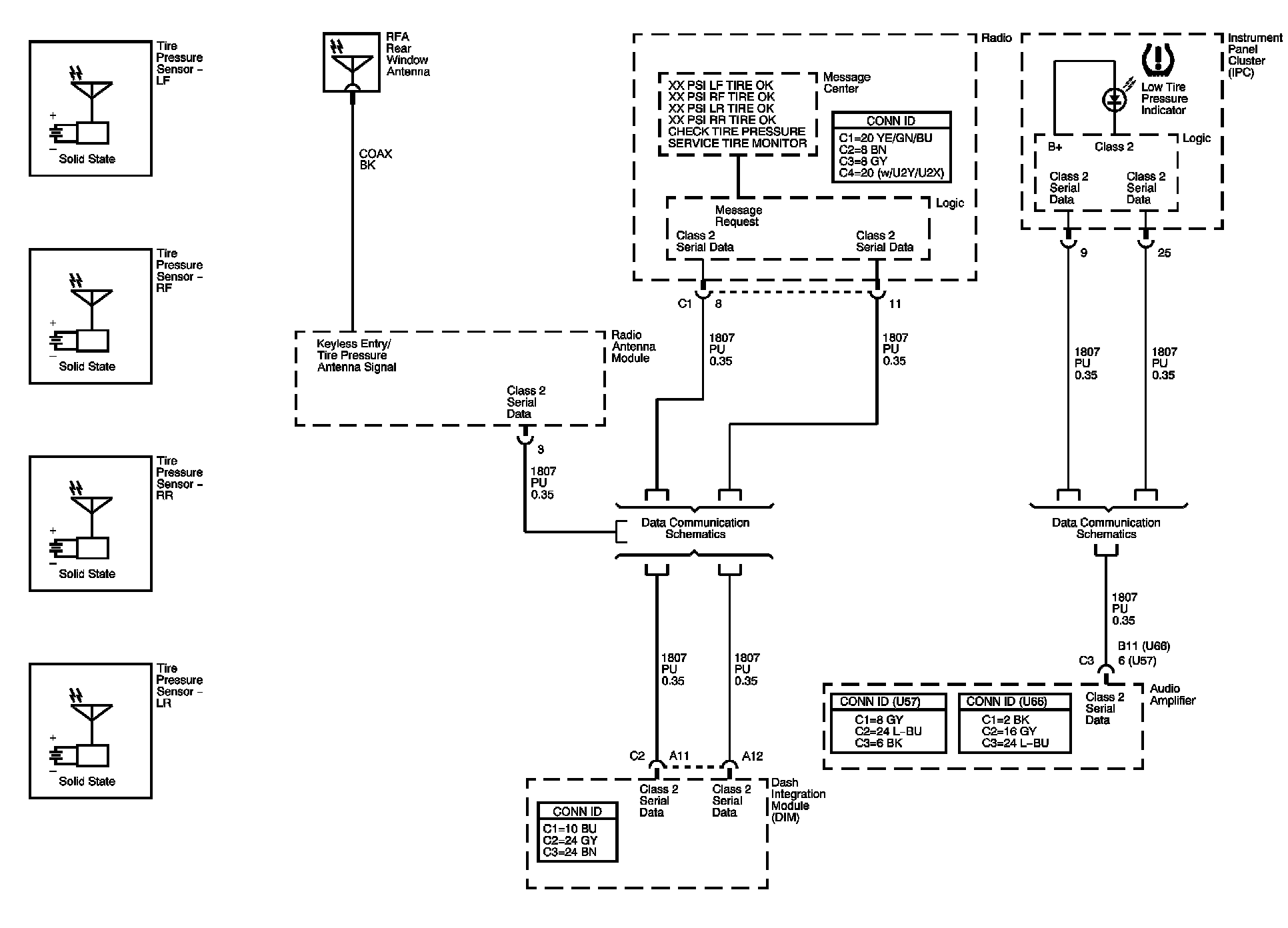

Tire Pressure Monitoring System Schematics:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
