Sunroof / Moonroof

Sunroof Schematics

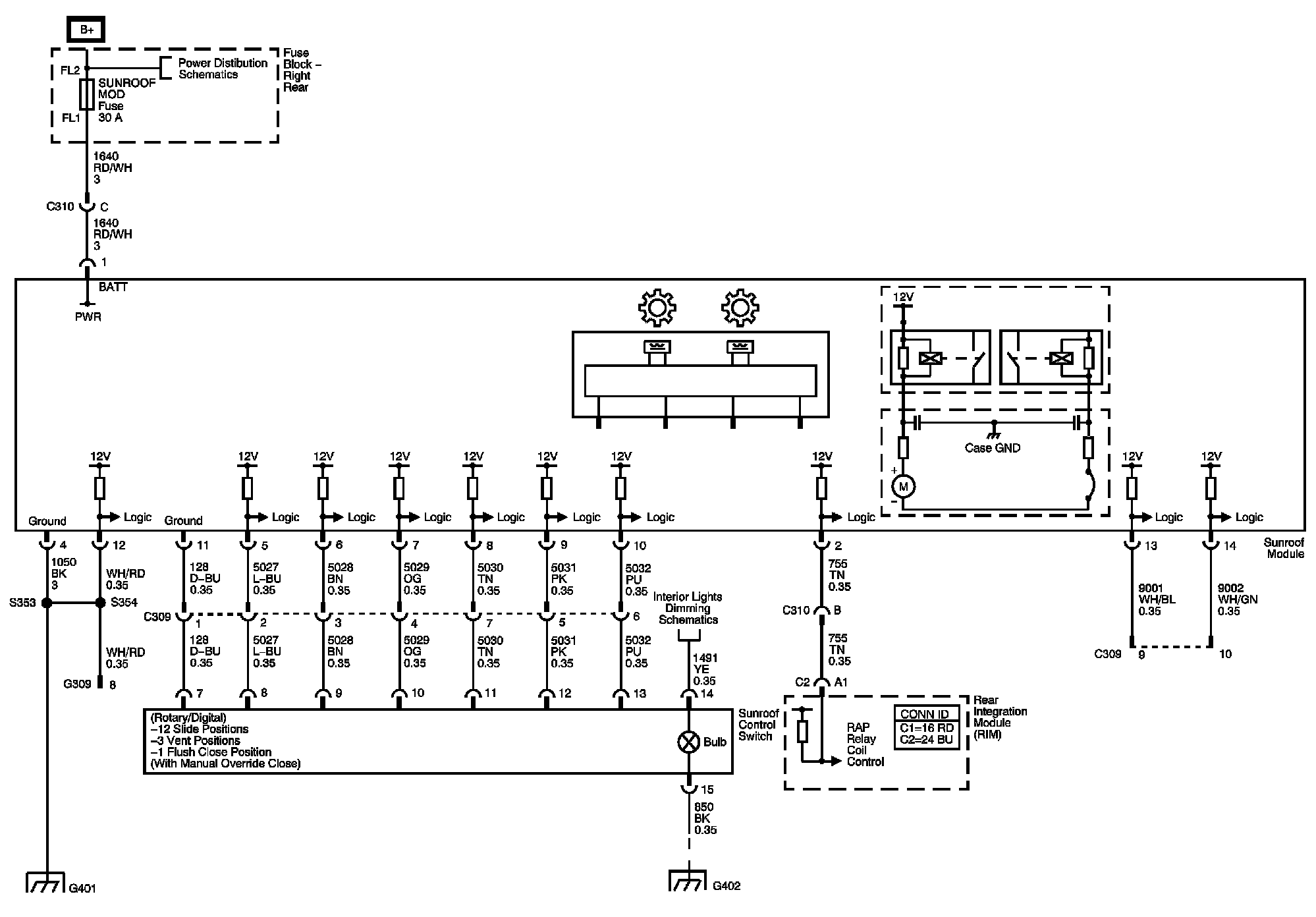

Power Sunroof (CF5) w/Jumper Harness






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
