Power Distribution Diagram 6



Power Distribution Schematics

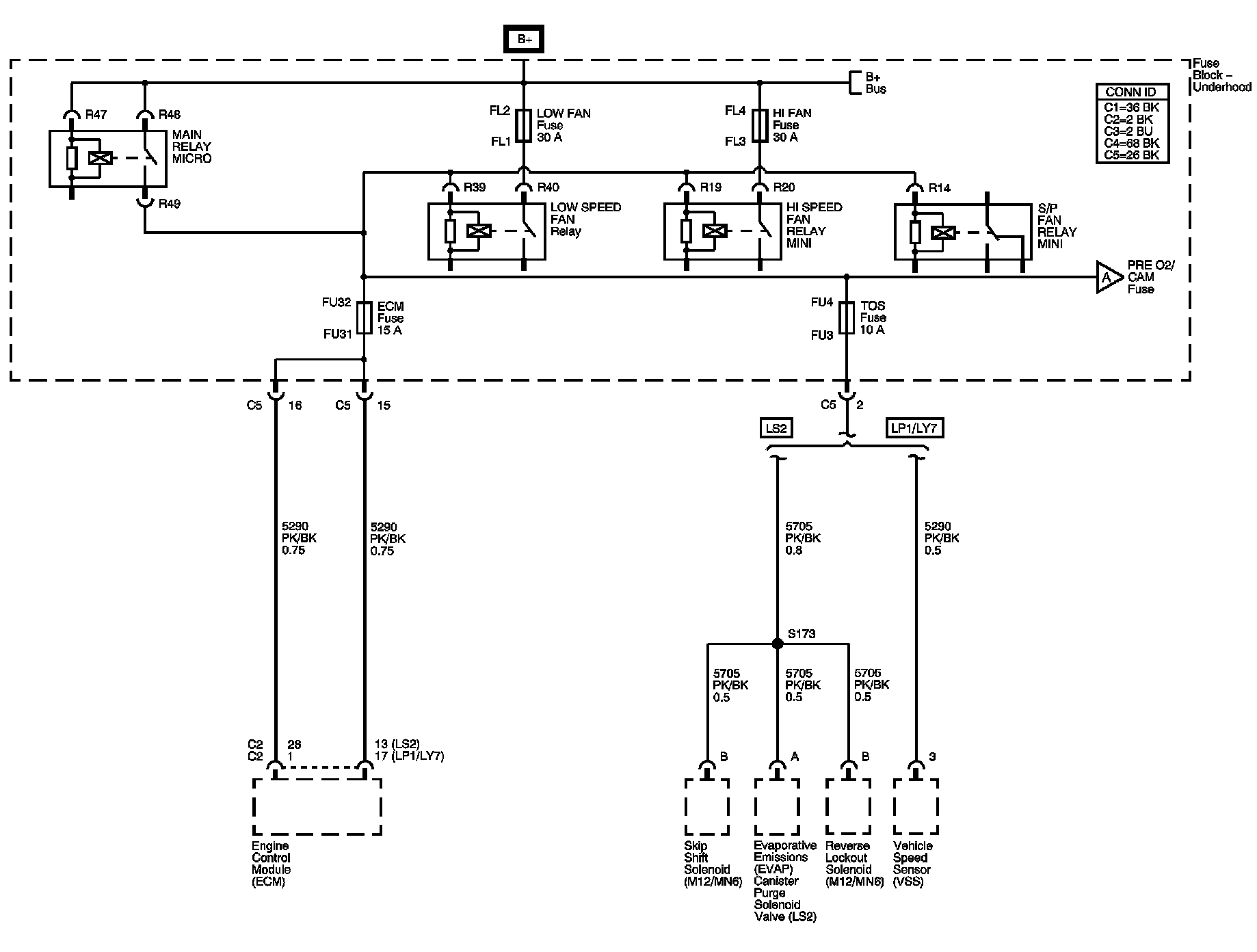

Underhood Fuse Block - COOLING FAN Fuses/Relays, MAIN Relay, ECM, and TOS

Power Distribution Diagram 6:






Next Diagram: Power Distribution Diagram 7

Previous Diagram: Power Distribution Diagram 5


Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
