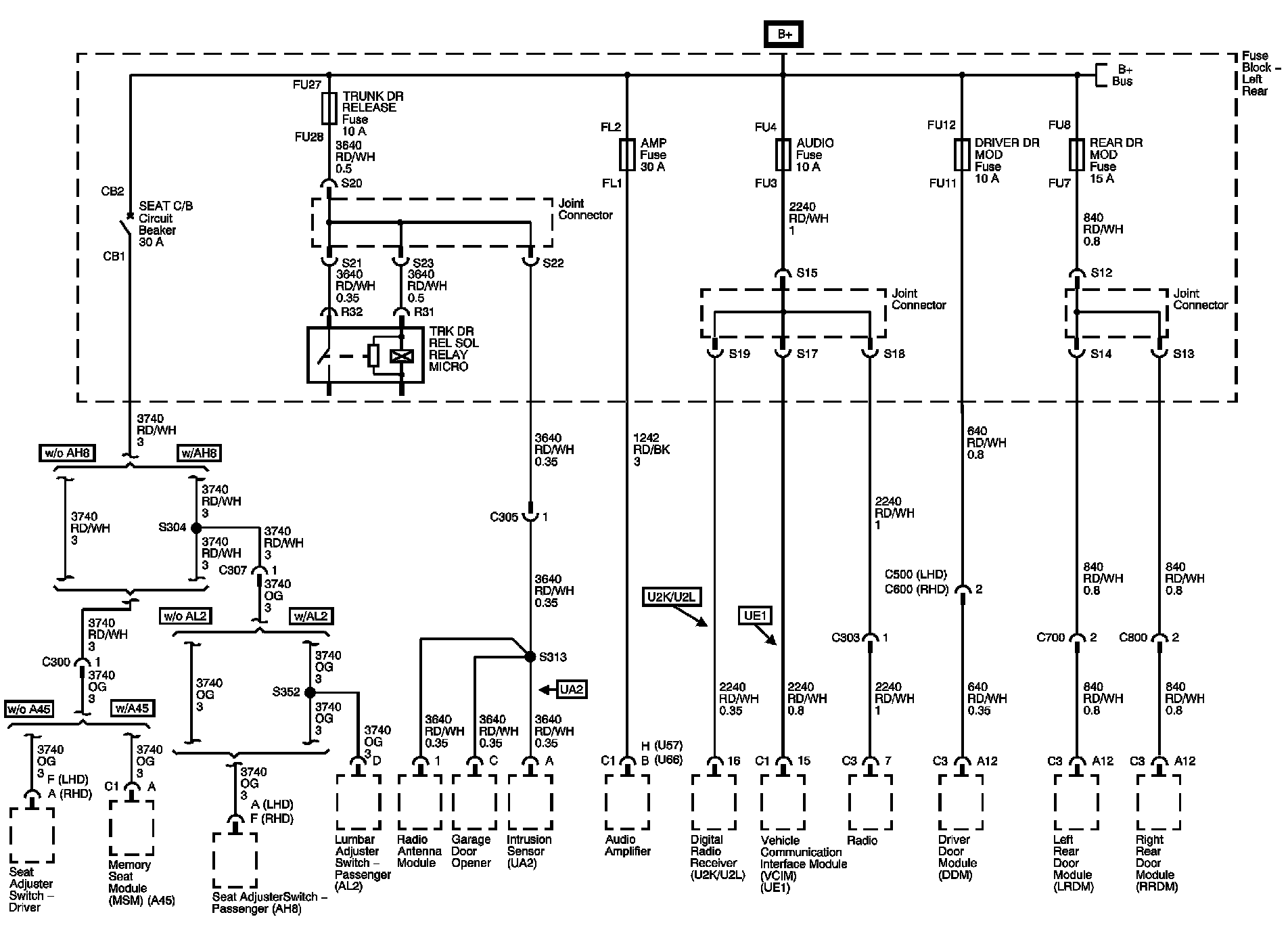

Power Distribution Diagram 16

Power Distribution Schematics

Left Rear Fuse Block - SEAT Circuit Breaker, TRUNK Relay/Fuse, AMP, AUDIO, DRIVER DR MOD, and REAR DR MOD Fuses

Power Distribution Diagram 16:

Next Diagram: Power Distribution Diagram 17

Previous Diagram: Power Distribution Diagram 15

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
