Power Distribution Diagram 14



Power Distribution Schematics

Underhood Fuse Block - WASH NOZ, STRG CTLS, and IGN MOD/MAF Fuses

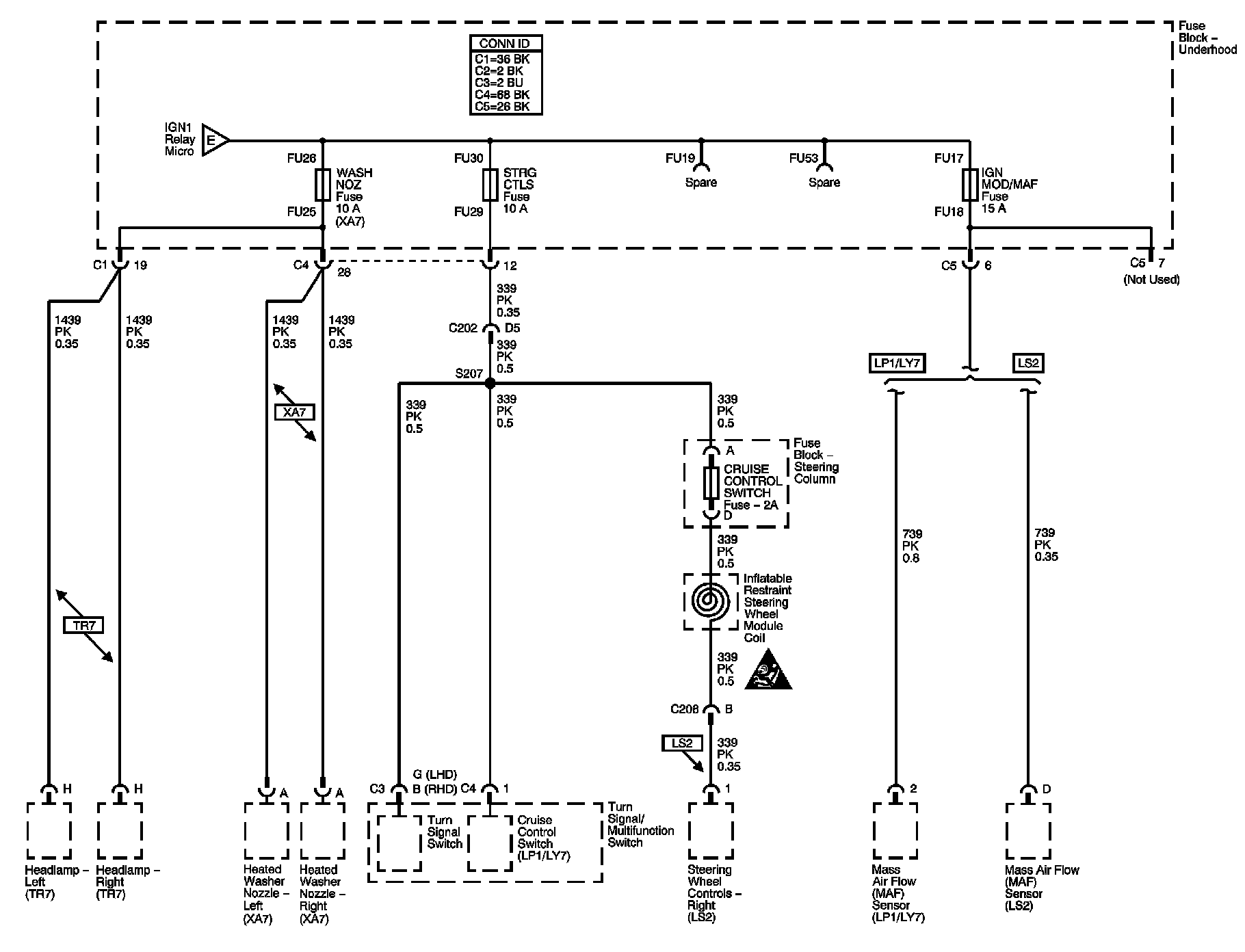

Power Distribution Diagram 14:





Next Diagram: Power Distribution Diagram 15

Previous Diagram: Power Distribution Diagram 13


Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
