Power Distribution Diagram 13



Power Distribution Schematics

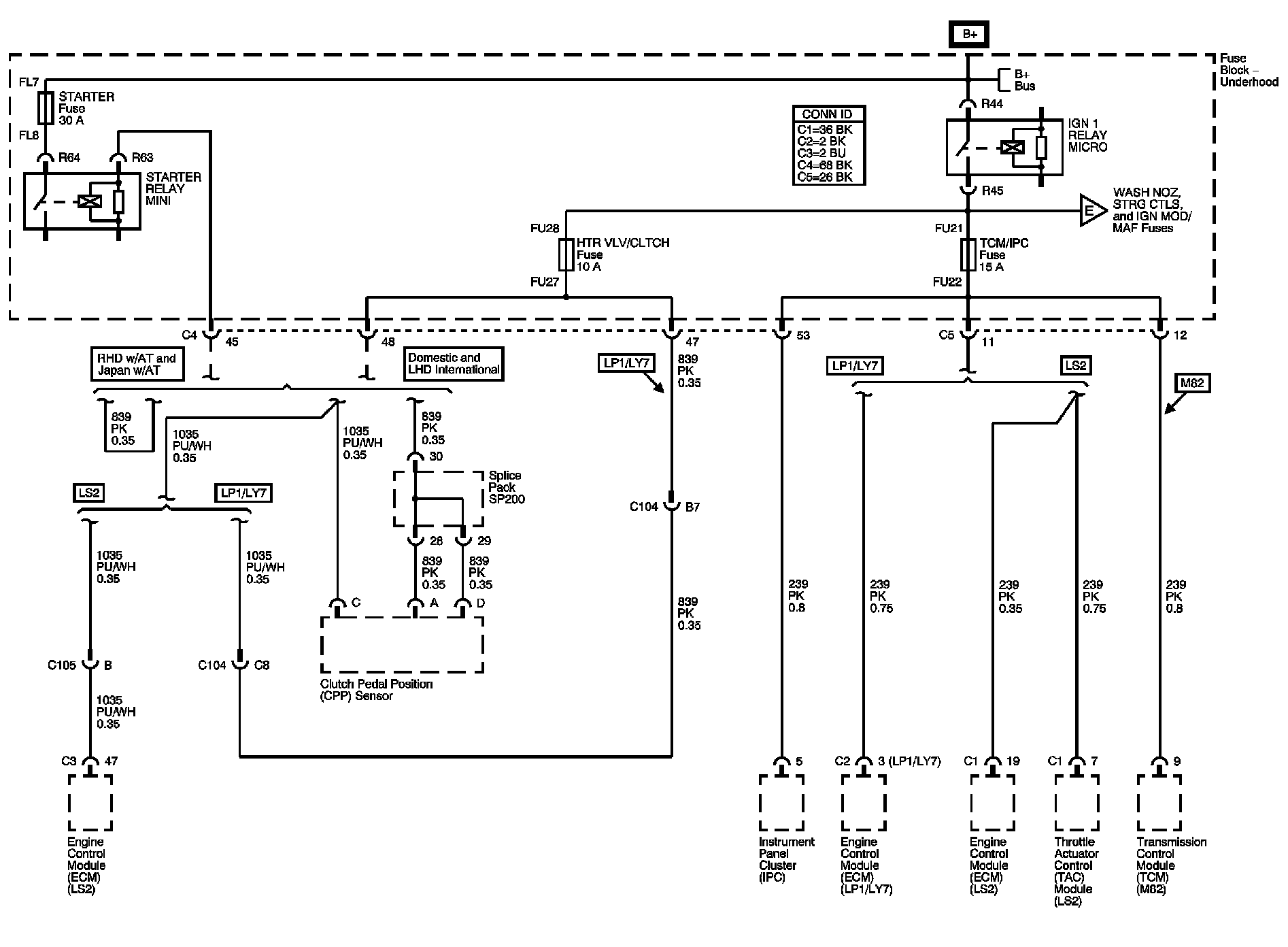

Underhood Fuse Block - STARTER Relay, IGN 1 Relay, HTR VLV/CLUTCH, and TCM/IPC Fuses

Power Distribution Diagram 13:





Next Diagram: Power Distribution Diagram 14

Previous Diagram: Power Distribution Diagram 12


Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
