Power Distribution Diagram 1



Power Distribution Schematics

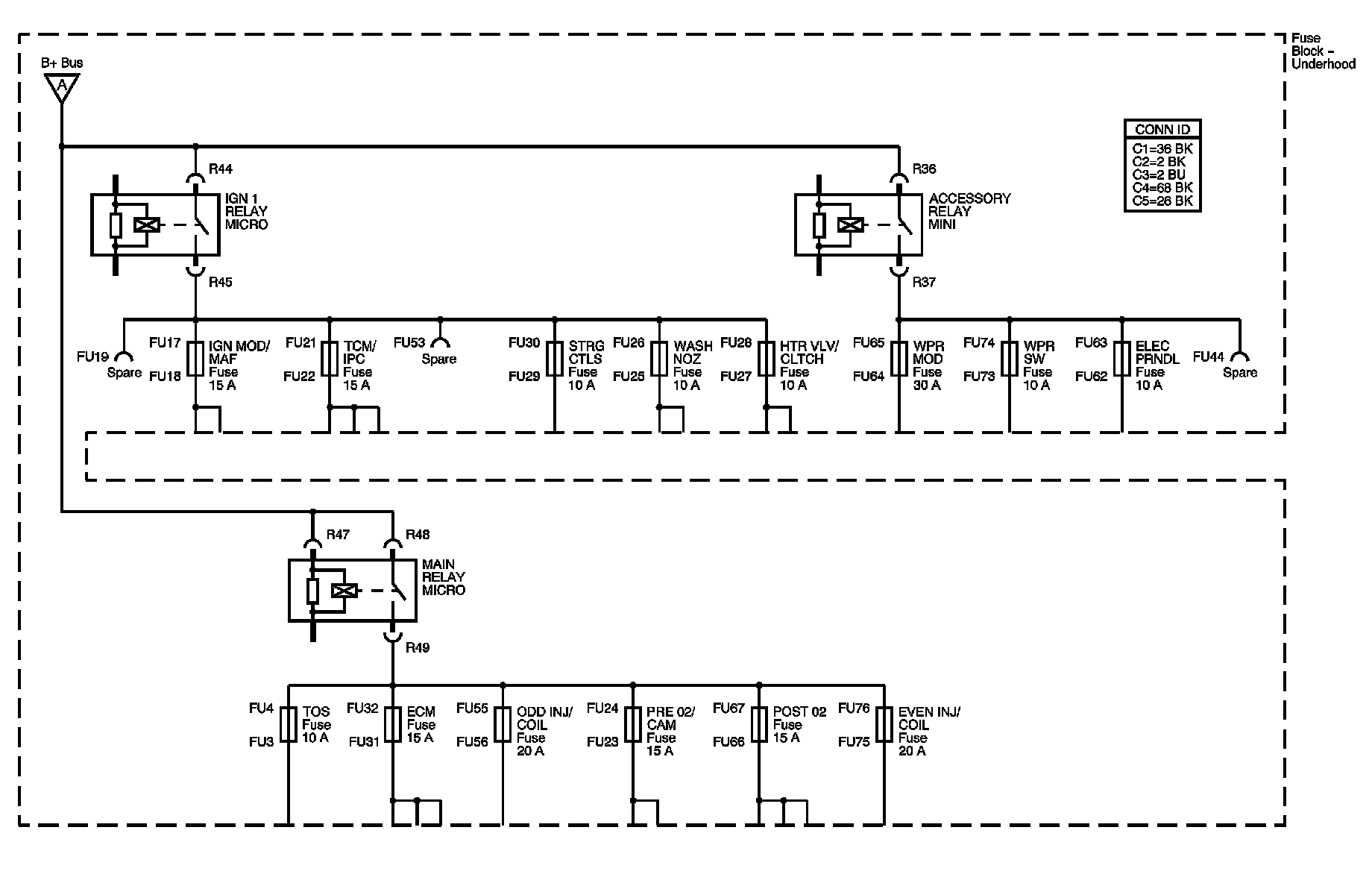

Underhood Fuse Block B+ Bus 1 of 2

Power Distribution Diagram 1 (1 Of 2):

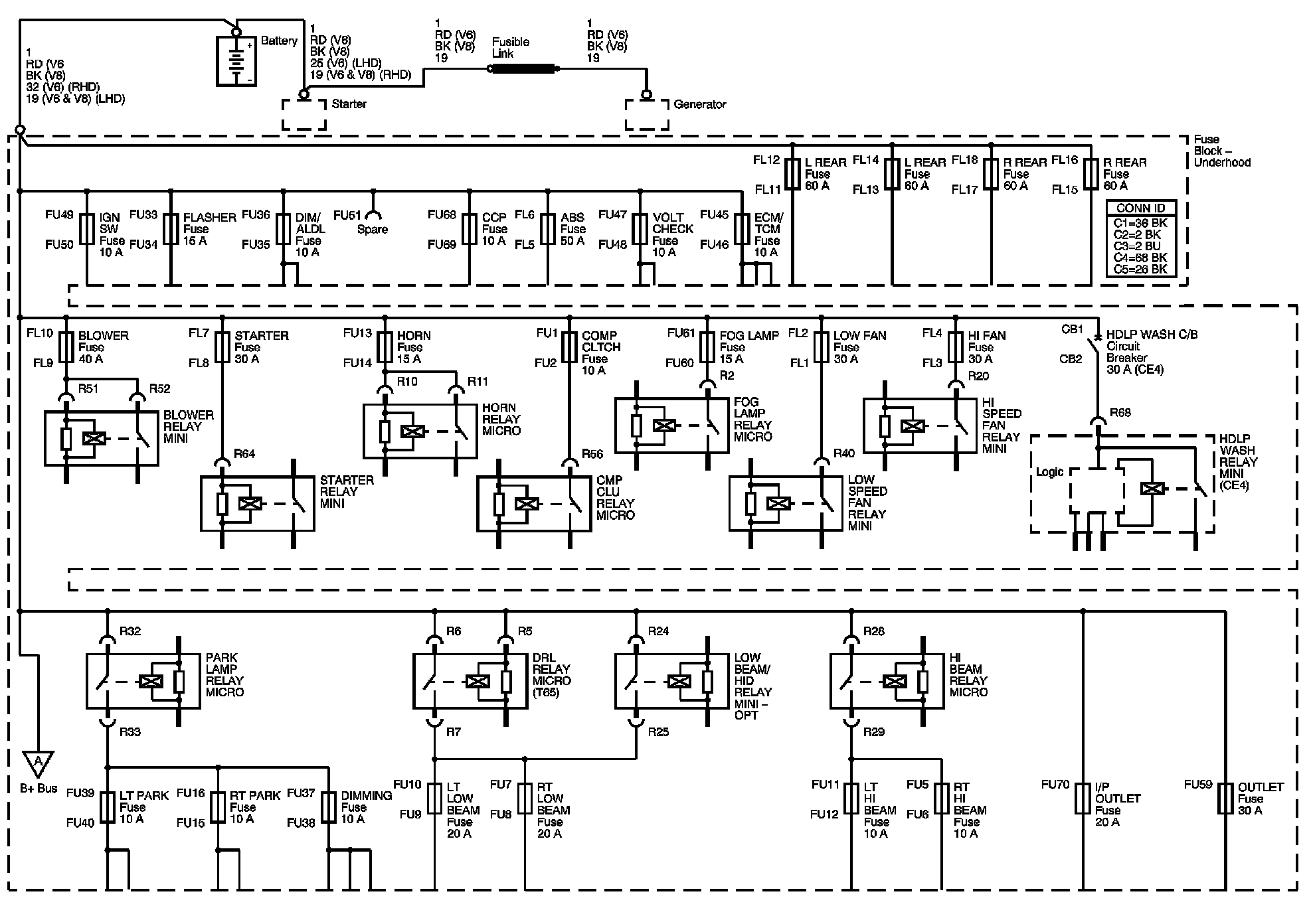

Underhood Fuse Block B+ Bus 2 of 2

Power Distribution Diagram 1 (2 Of 2):





Next Diagram: Power Distribution Diagram 2


Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
