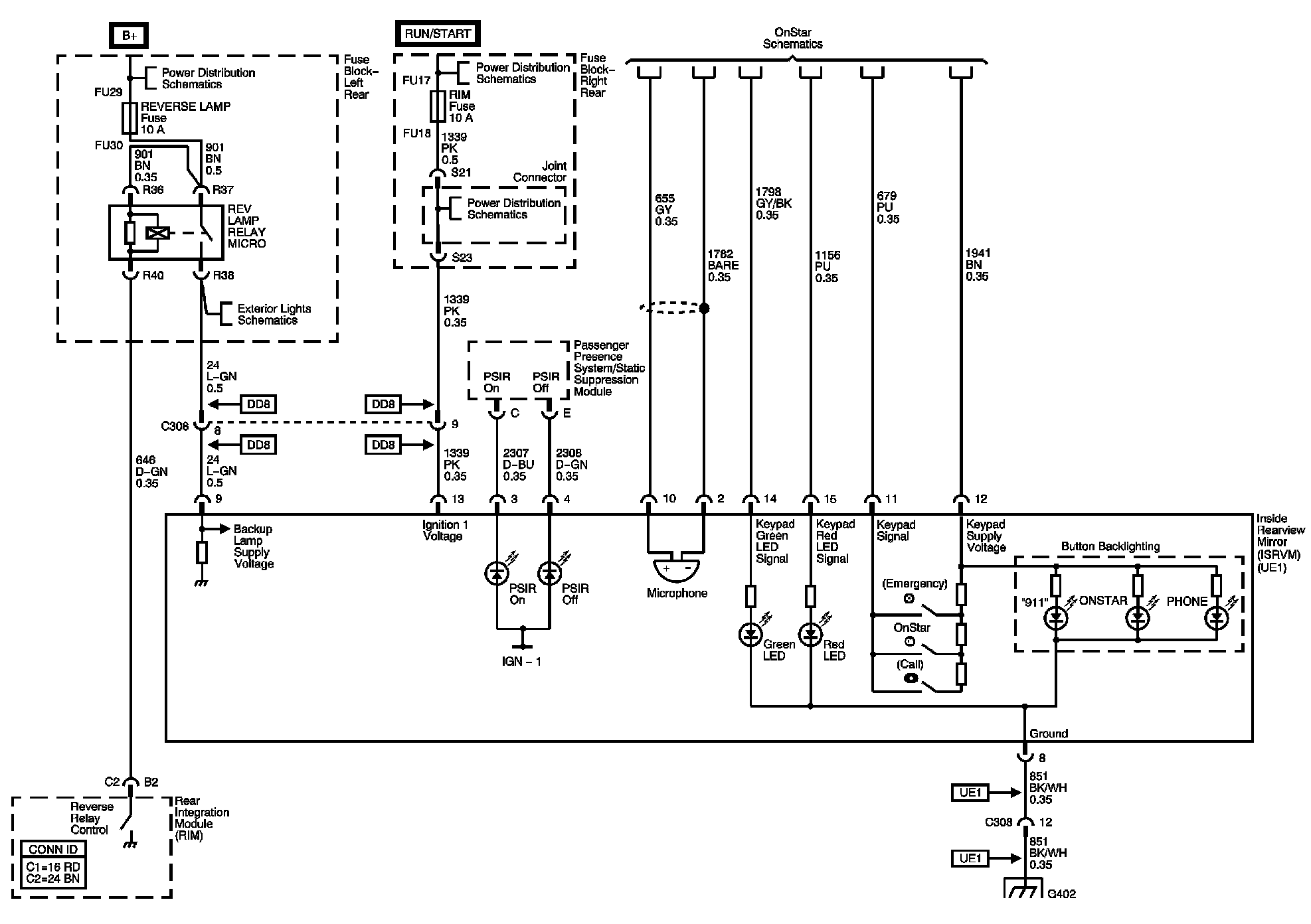

Inside Rearview Mirror Schematics



Inside Rearview Mirror Schematics

UE1






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
