Instrument Cluster Schematics

Instrument Cluster Schematics

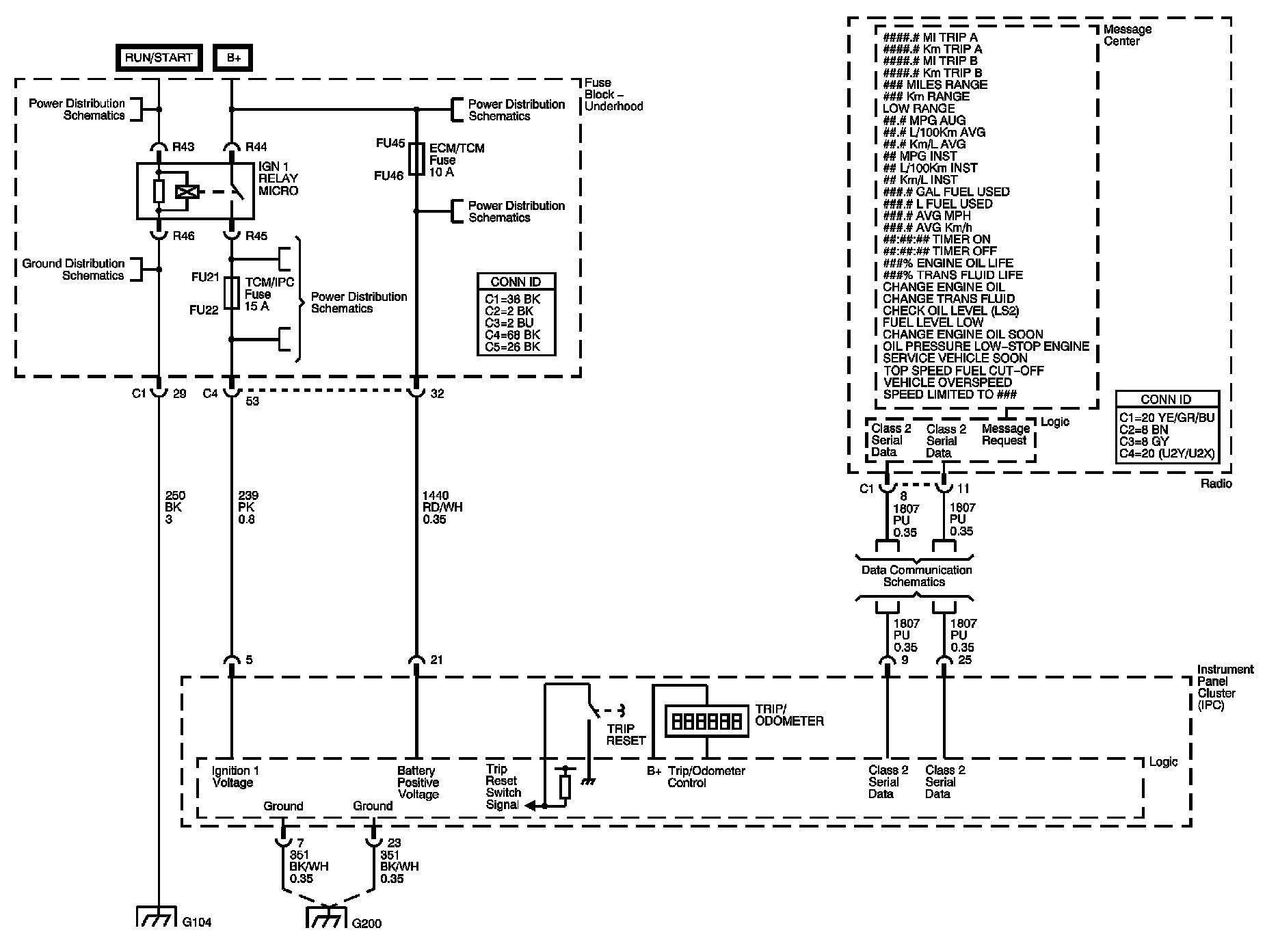

Power, Ground, Serial Data, Odometer, and DIC

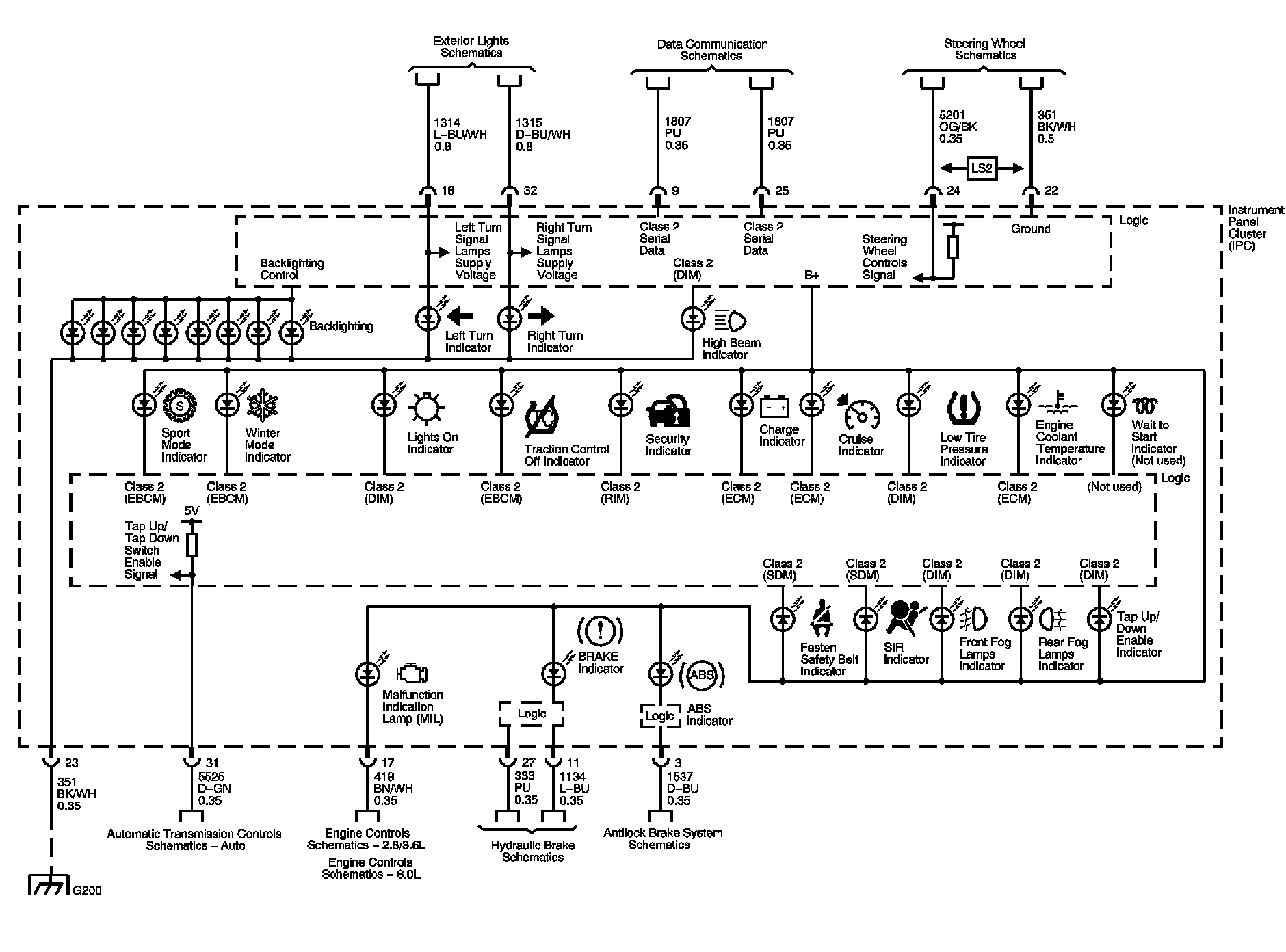

Indicators

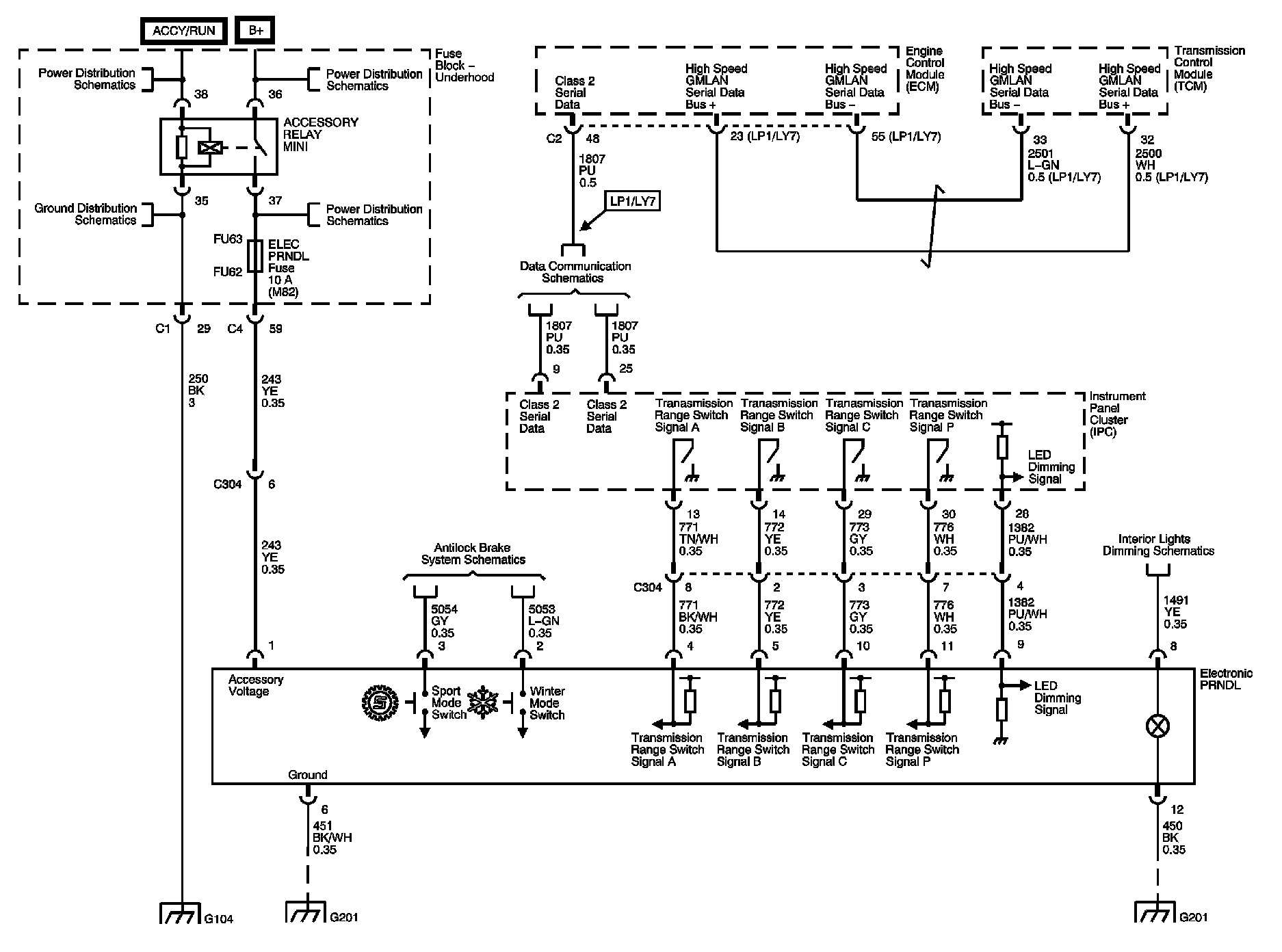

Electronic PRNDL (M82)

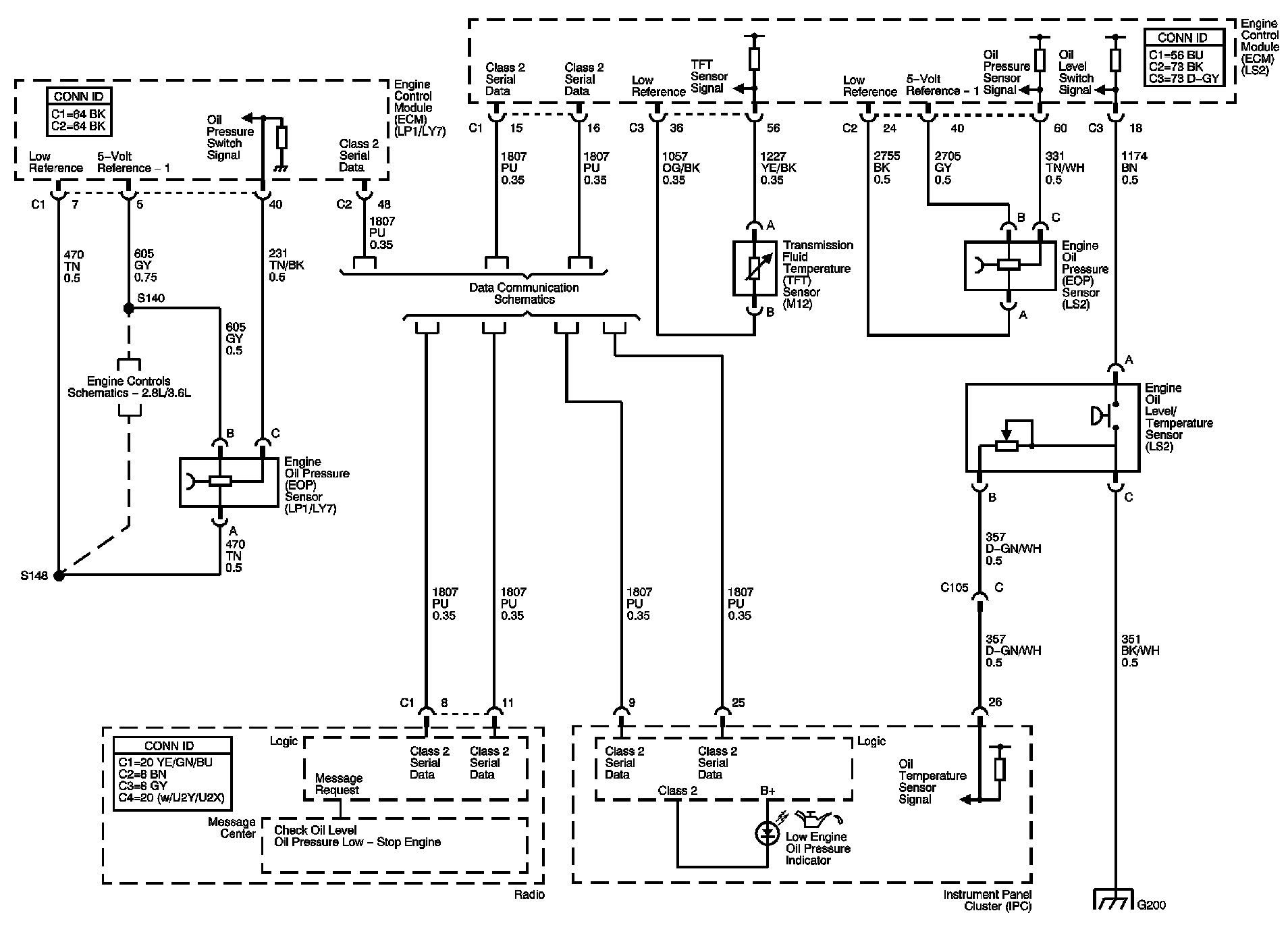

Engine Oil Pressure (EOP) Sensor, Engine Oil Level/Temperature Sensor, TFT, and Indicators

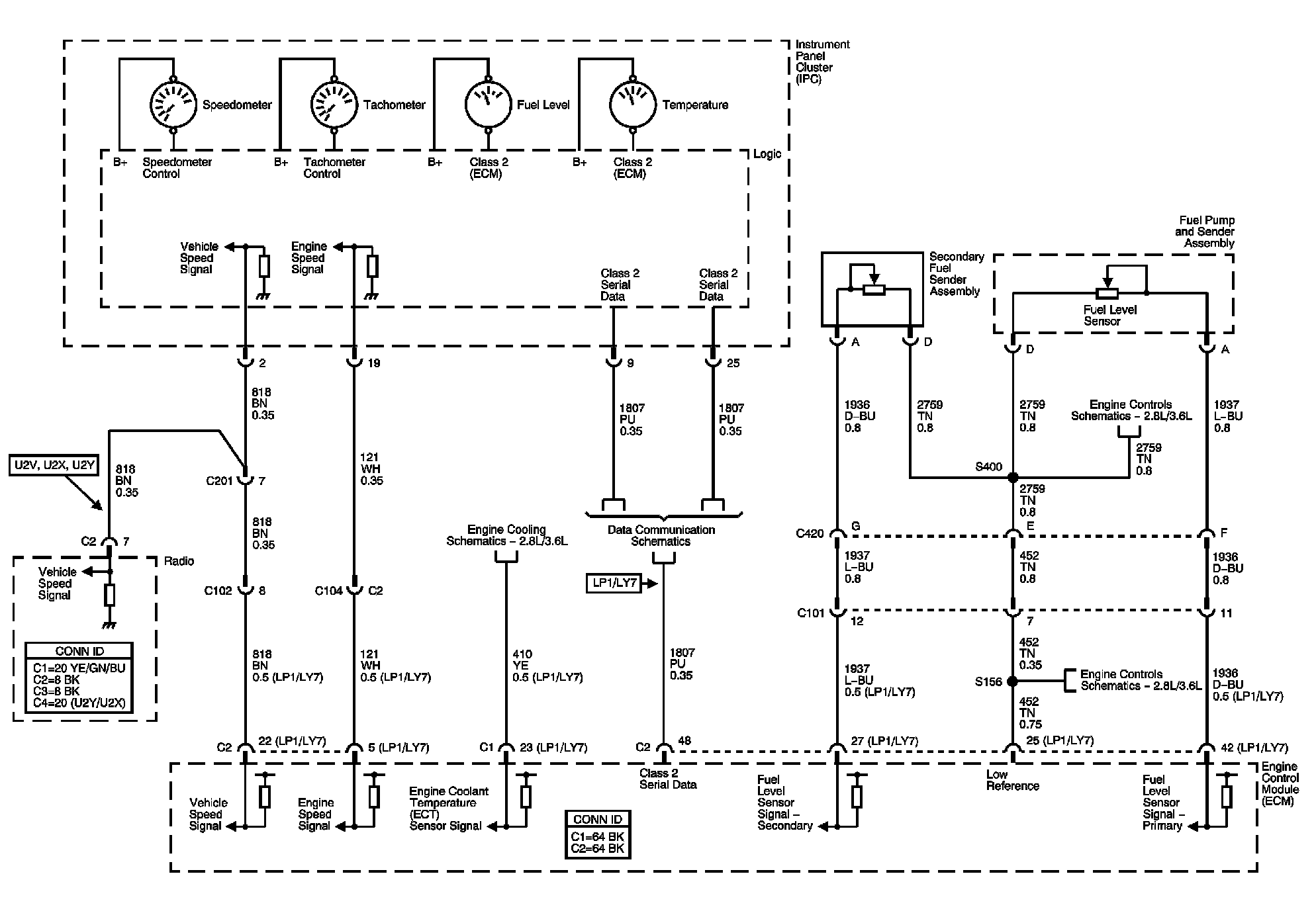

Gages - 2.8L/3.6L (LP1/LY7)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
