Driver Information System Schematics



Driver Information System Schematics

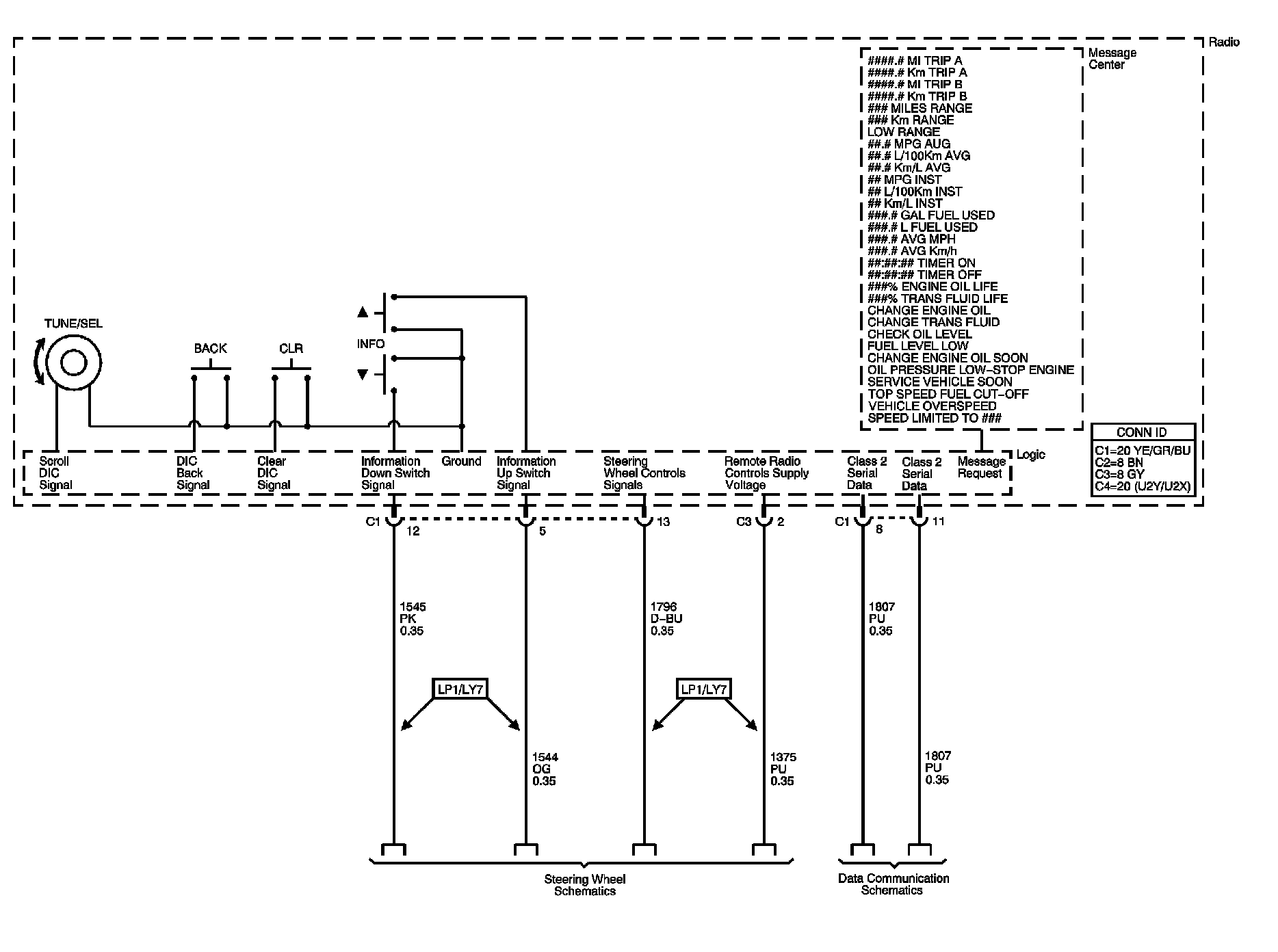

Driver Information Center (DIC) System (LP1/LY7)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
