Heating and Air Conditioning

HVAC Schematics

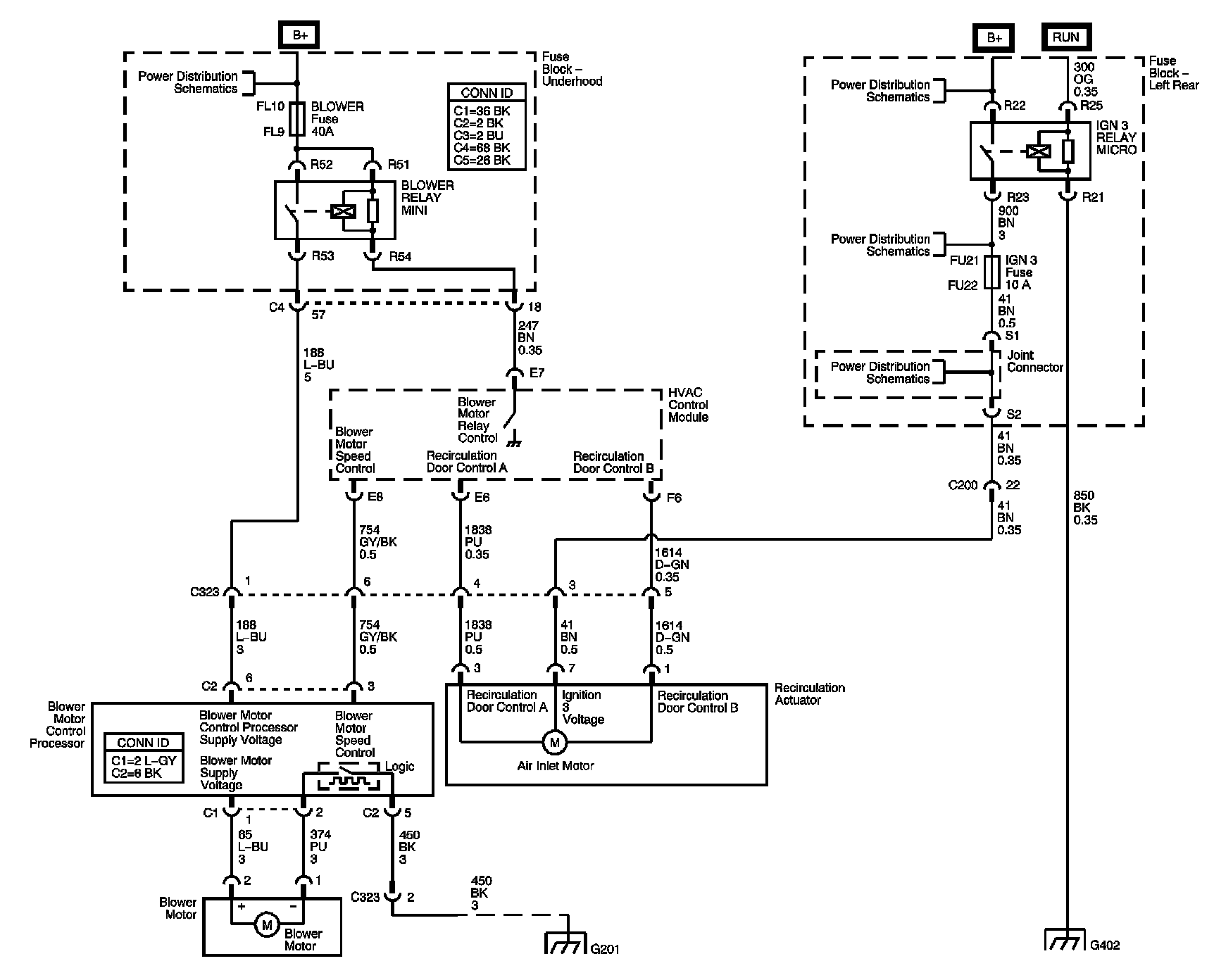

Blower Motor Controls

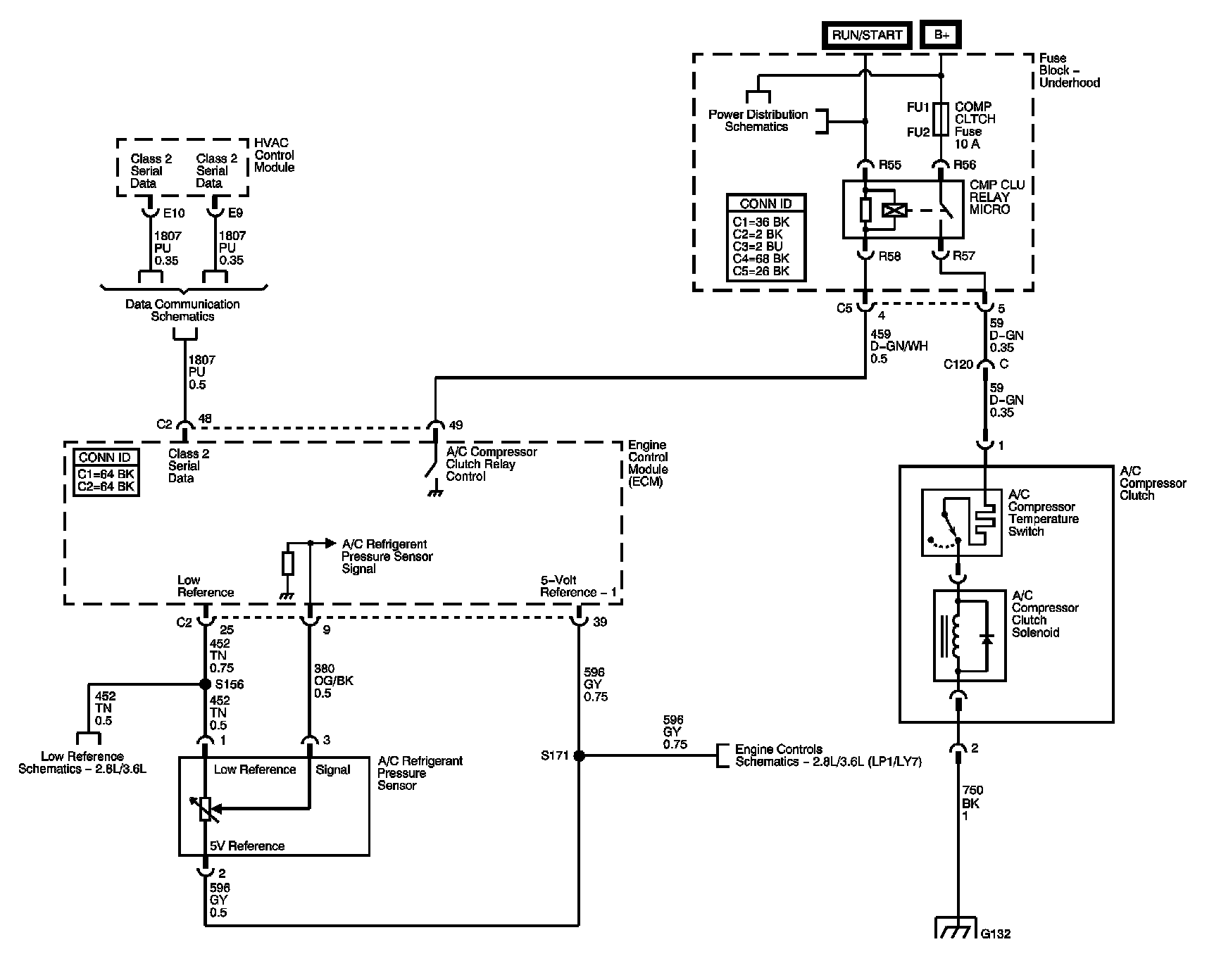

A/C Compressor Controls 2.8L/3.6L (LP1/LY7)

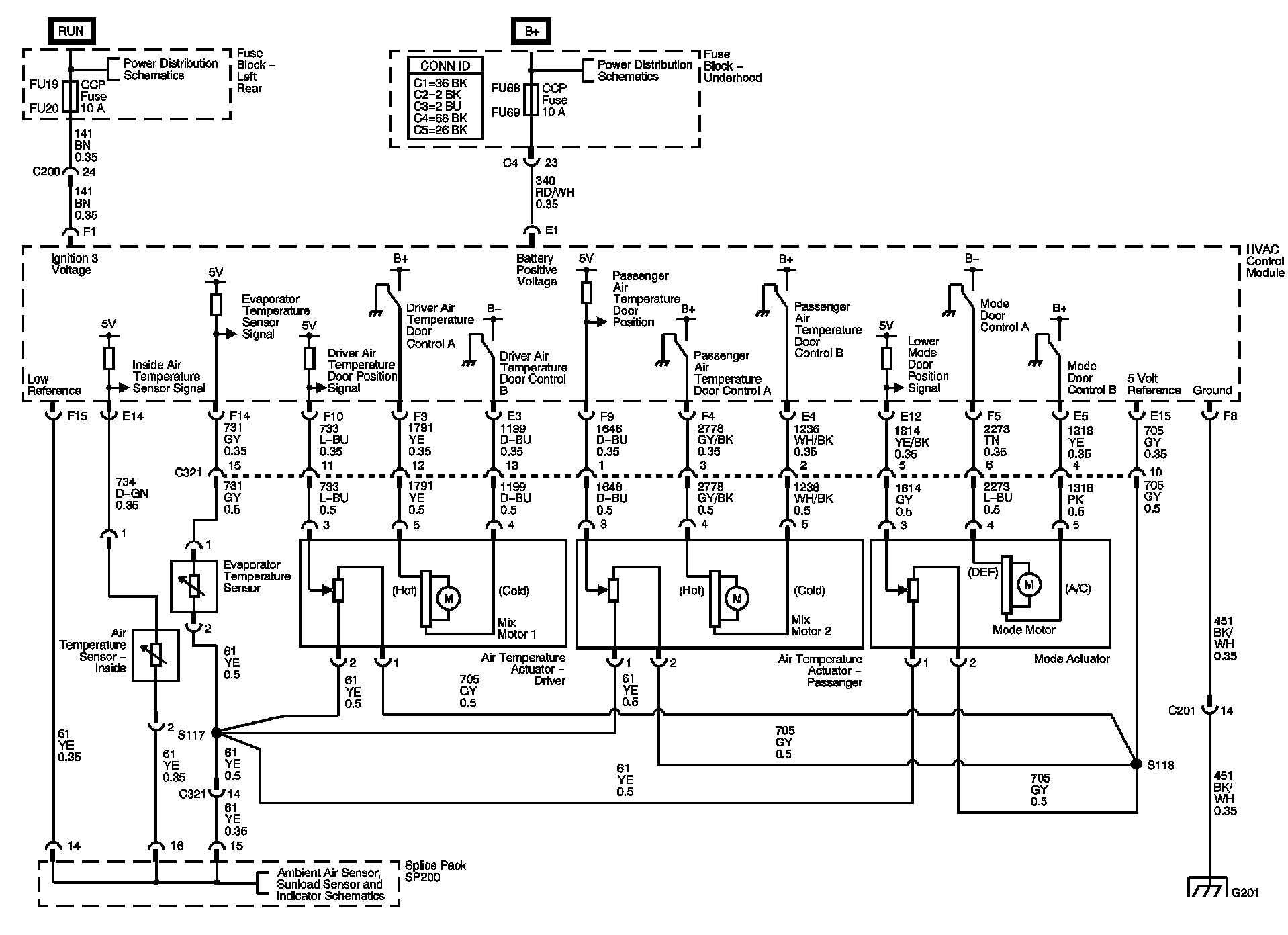

Air Delivery/Temperature Control Actuators (LHD)

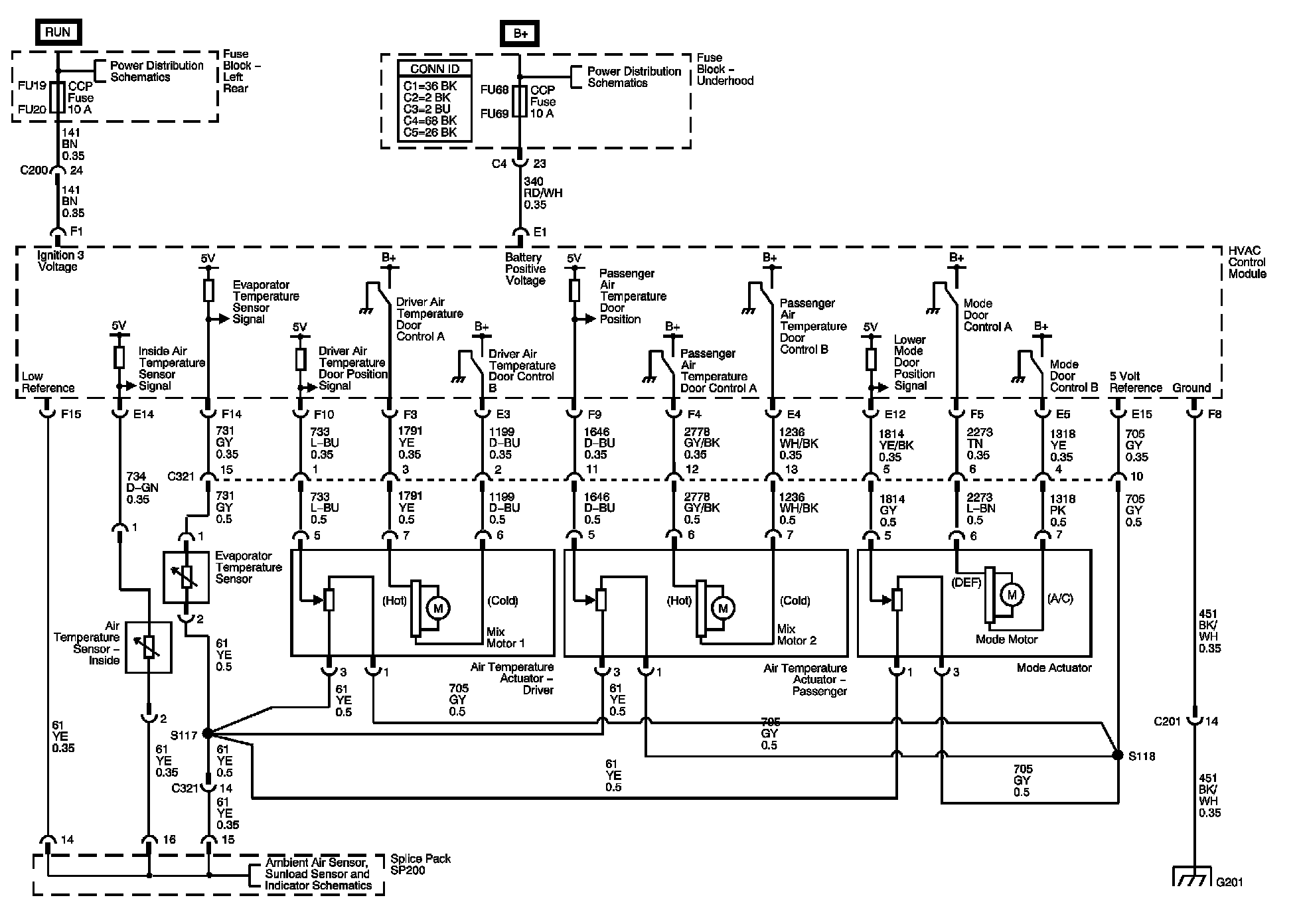

Air Delivery/Temperature Control Actuators (RHD)

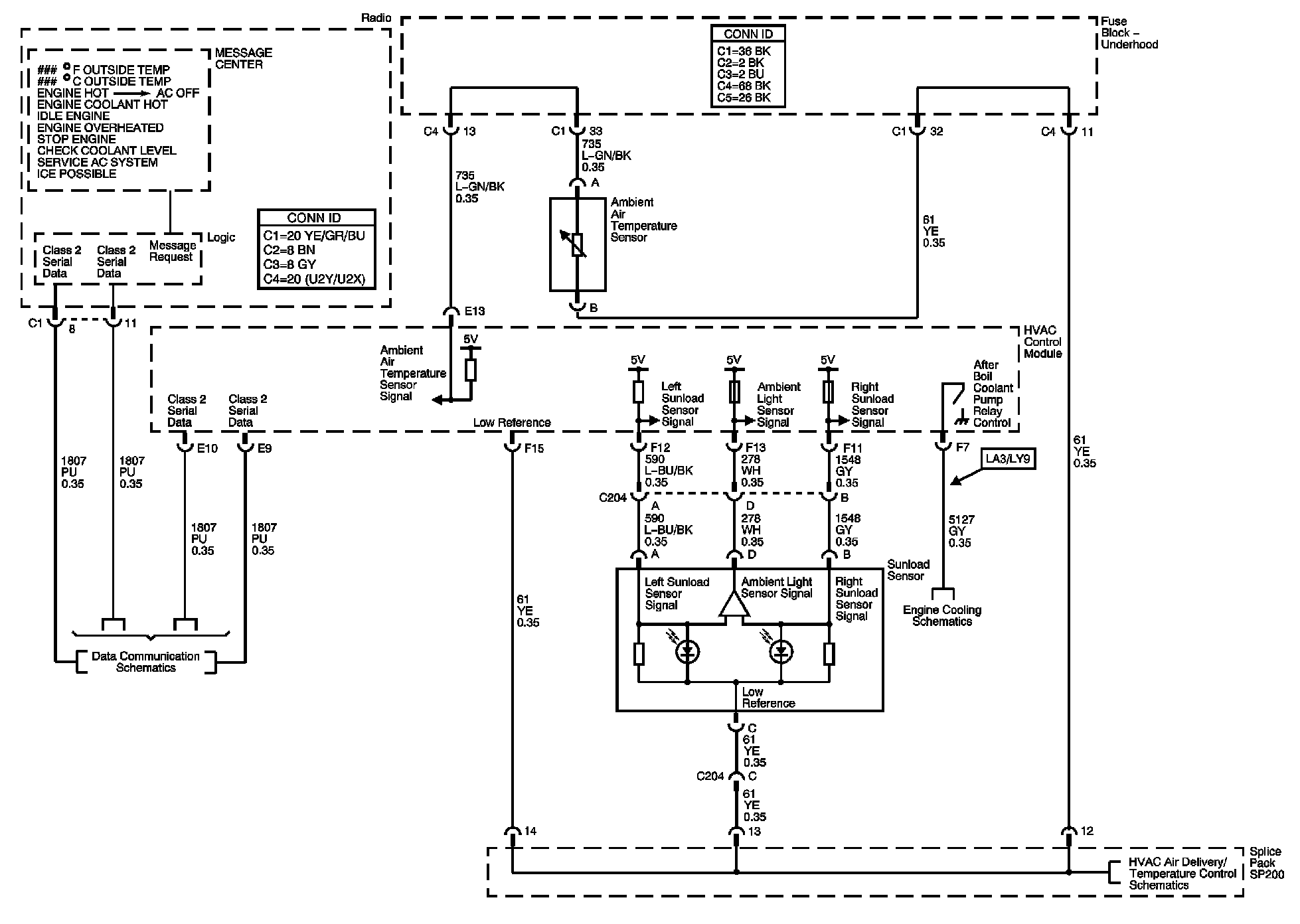

Ambient Air Temperature Sensor, Sunload Sensor, and DIC






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
