System Diagram

Engine Cooling Schematics

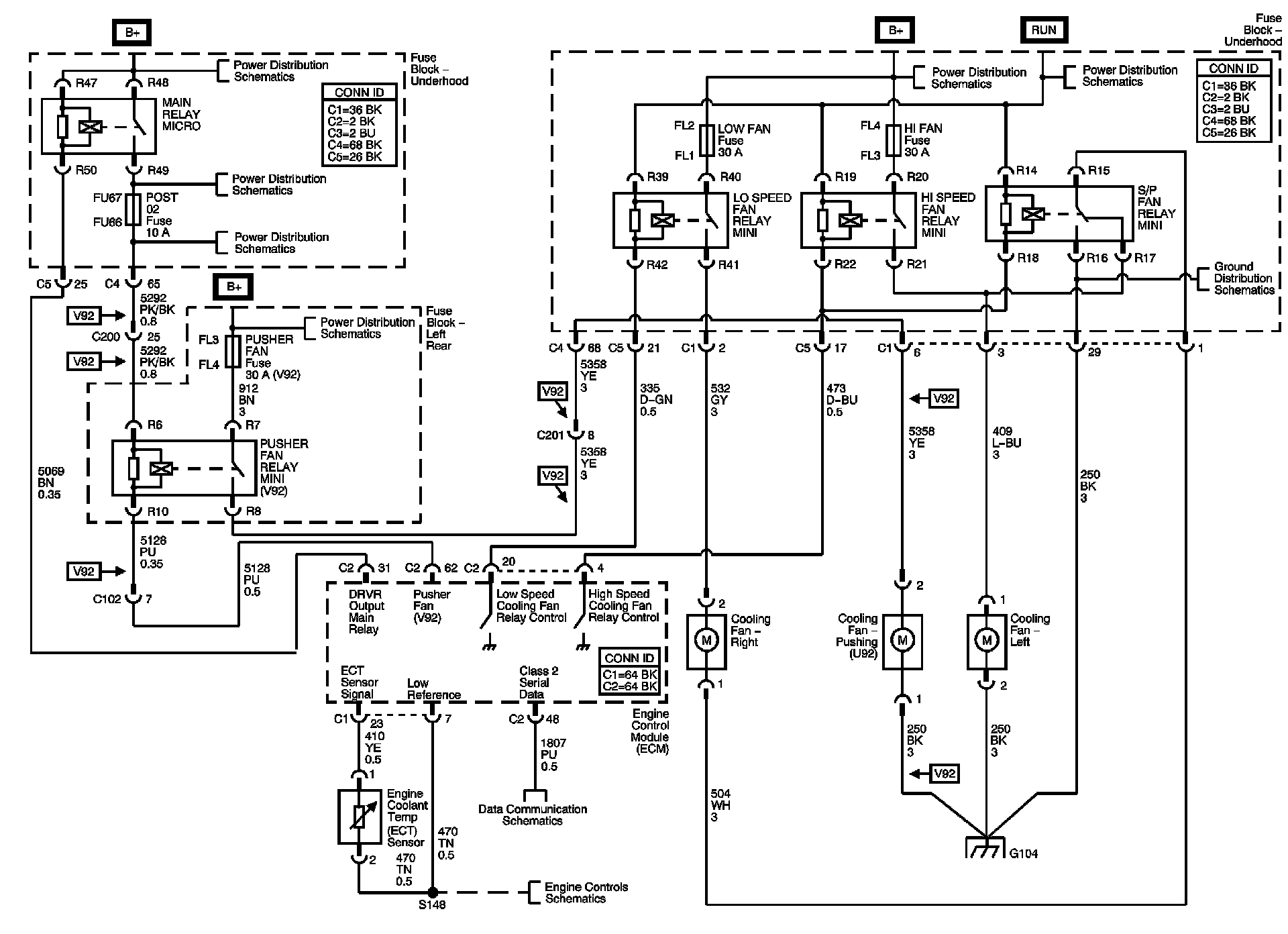

Engine Cooling Schematics 1:

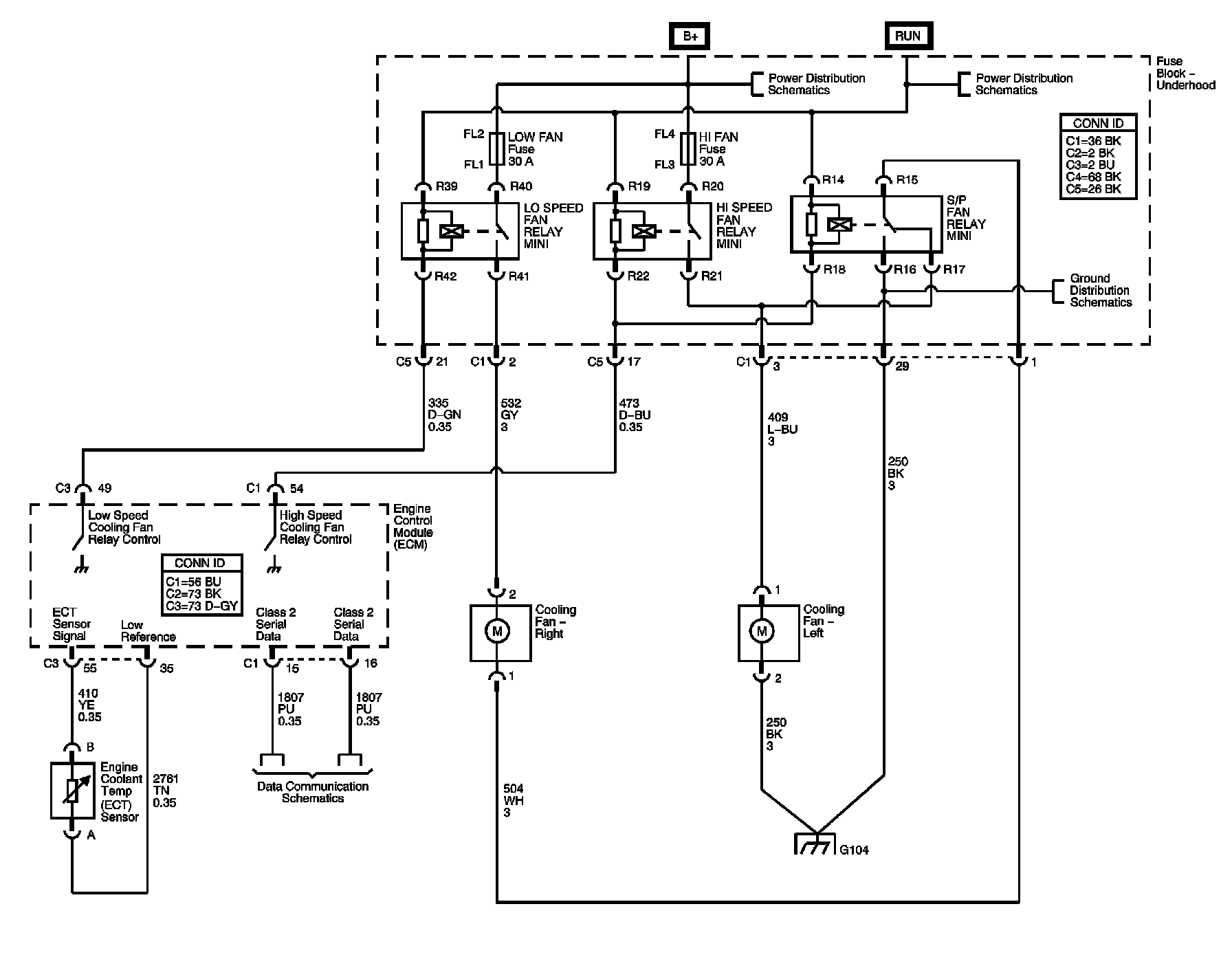

Engine Cooling Schematics 2:

Engine Cooling Schematics 3:

Locations: The locations for the connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
