Air Bag Systems

SIR Schematics

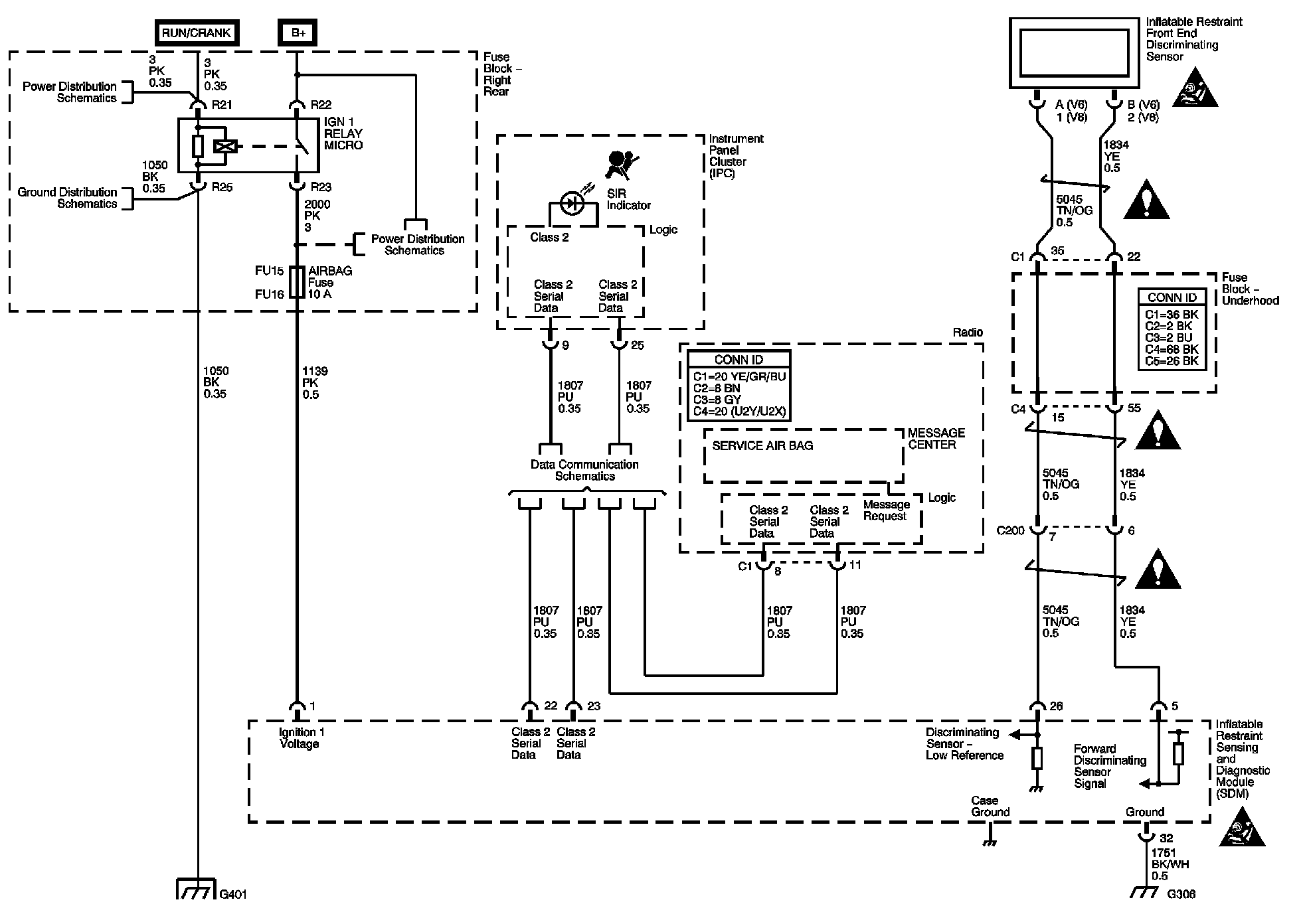

Power, Ground, Indicator DIC, and Front End Discriminating Sensor

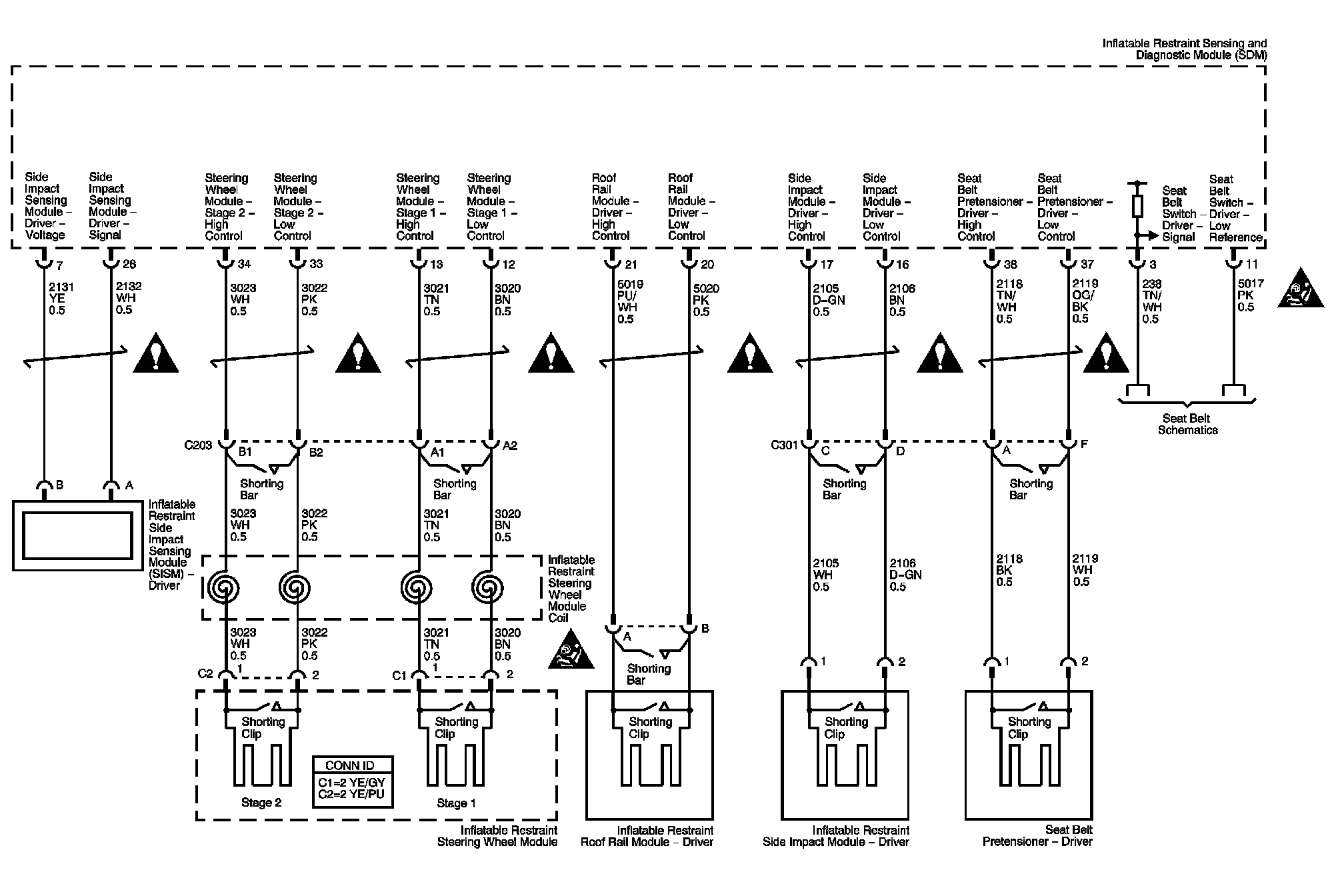

Driver SIR Modules and Sensor

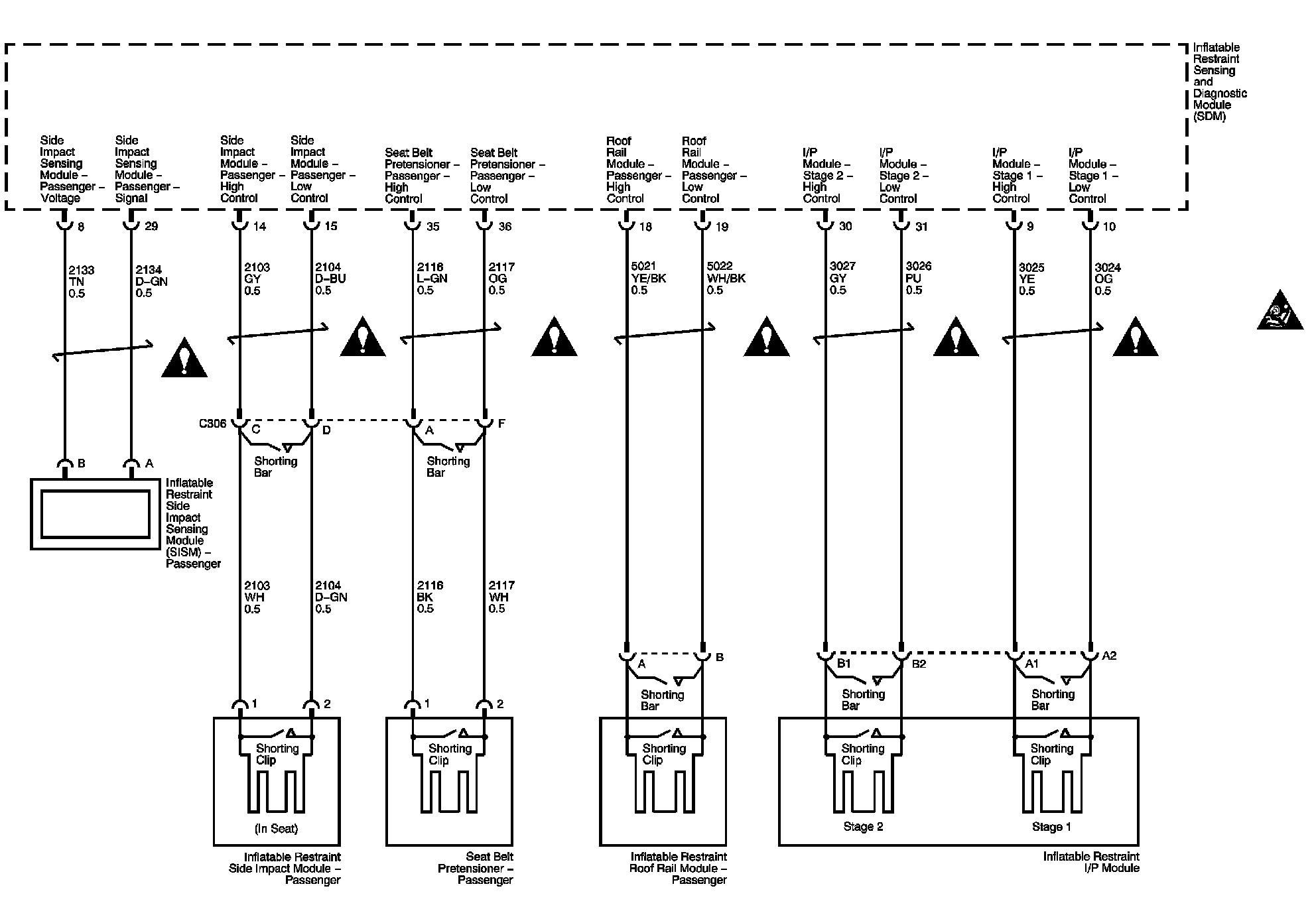

Passenger SIR Modules and Sensor

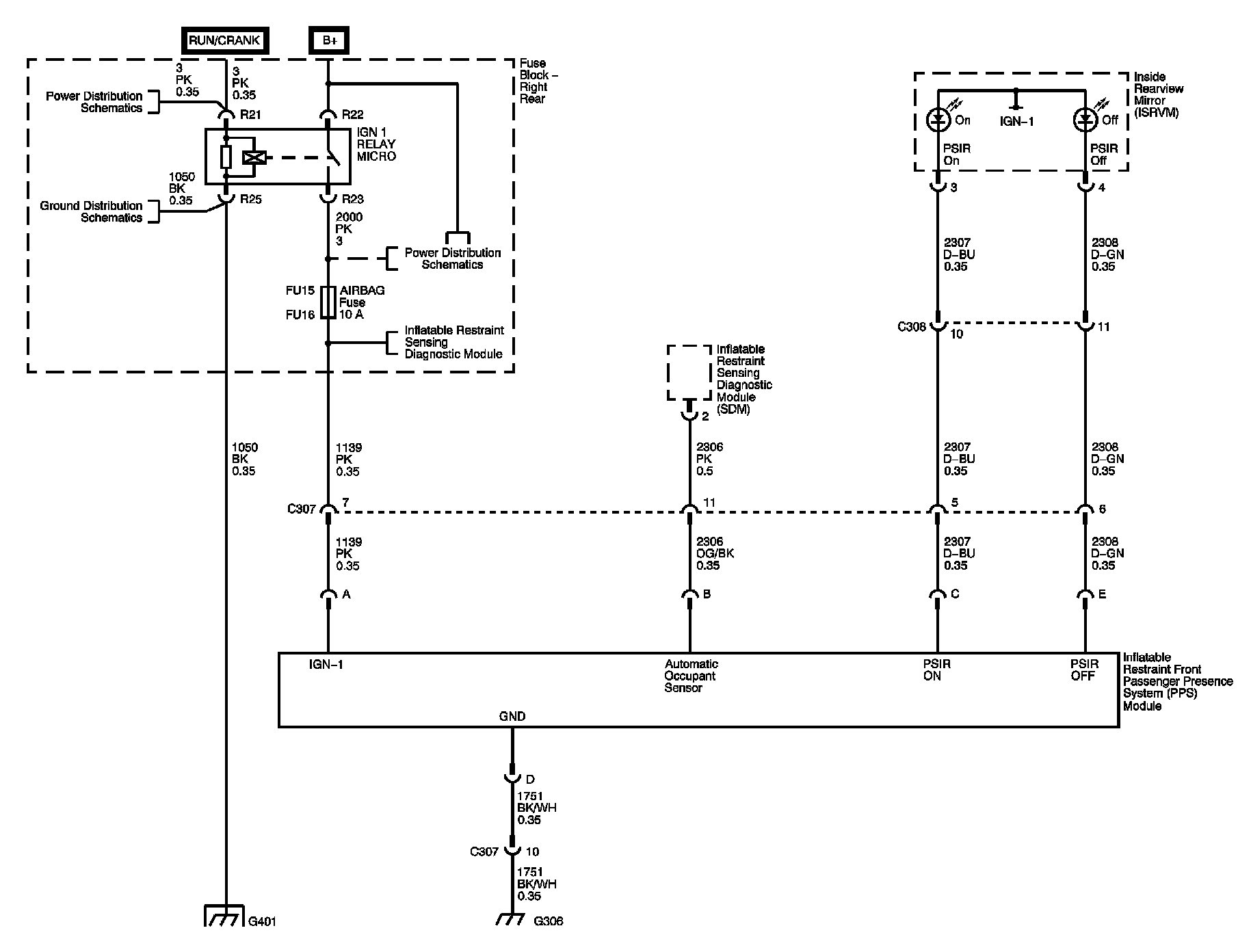

Inflatable Restraint Front Passenger Pressence System (PPS)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
