Immobilizer Diagrams

Immobilizer Schematics

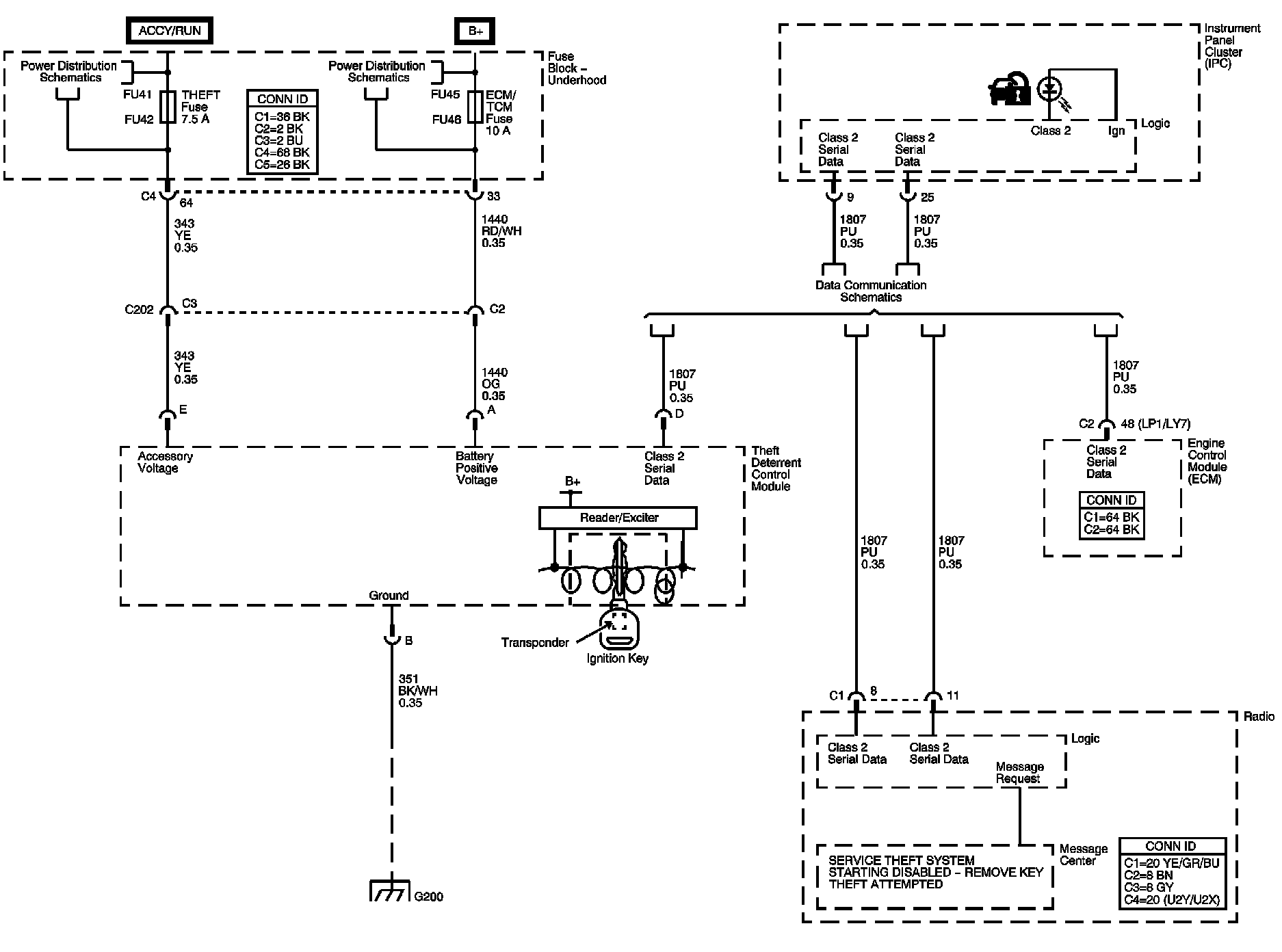

Immobilizer, Ground, Serial Data, and Indicator






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
