LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2007
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Master Connector List
Master Connector List

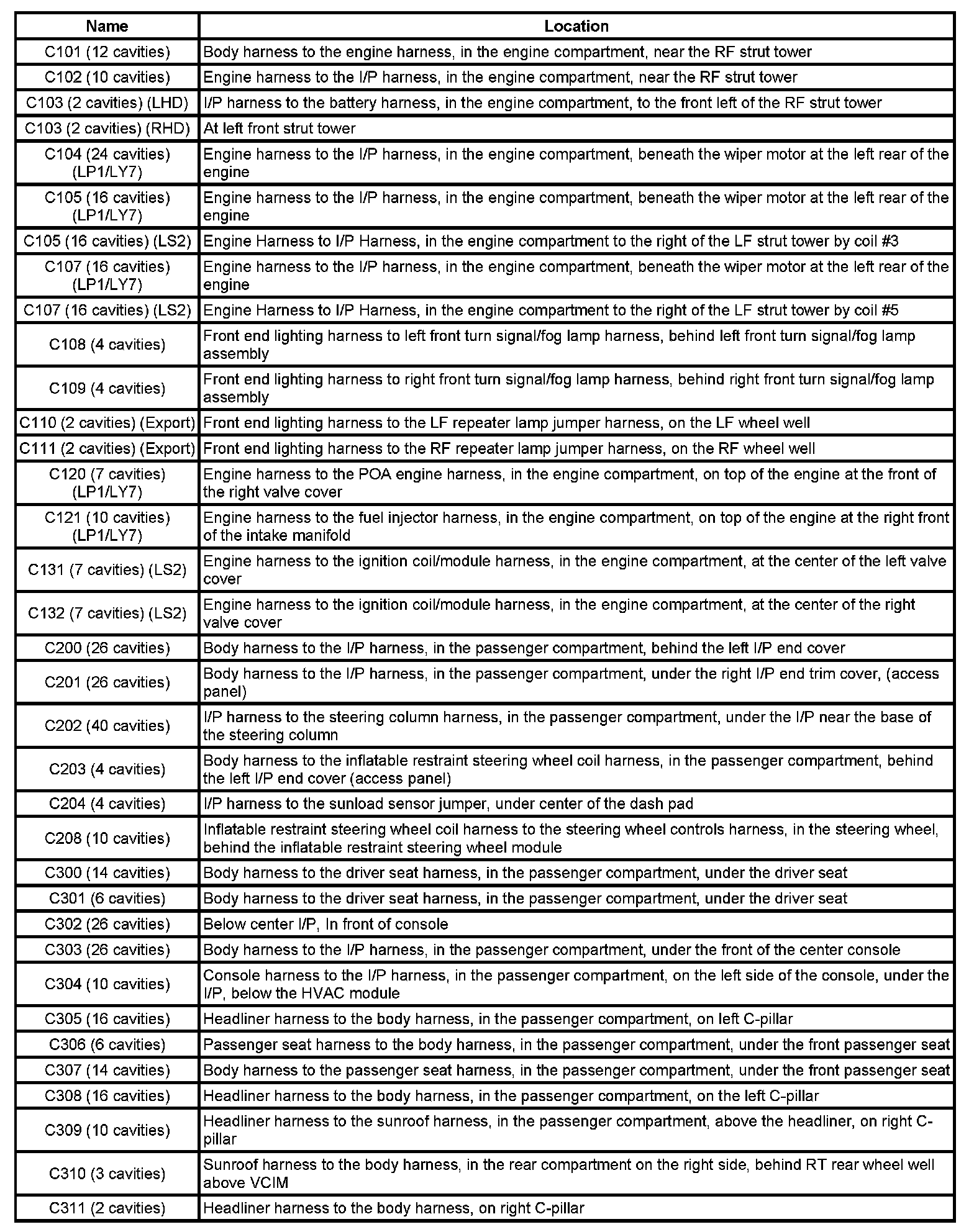

C101 - C311:

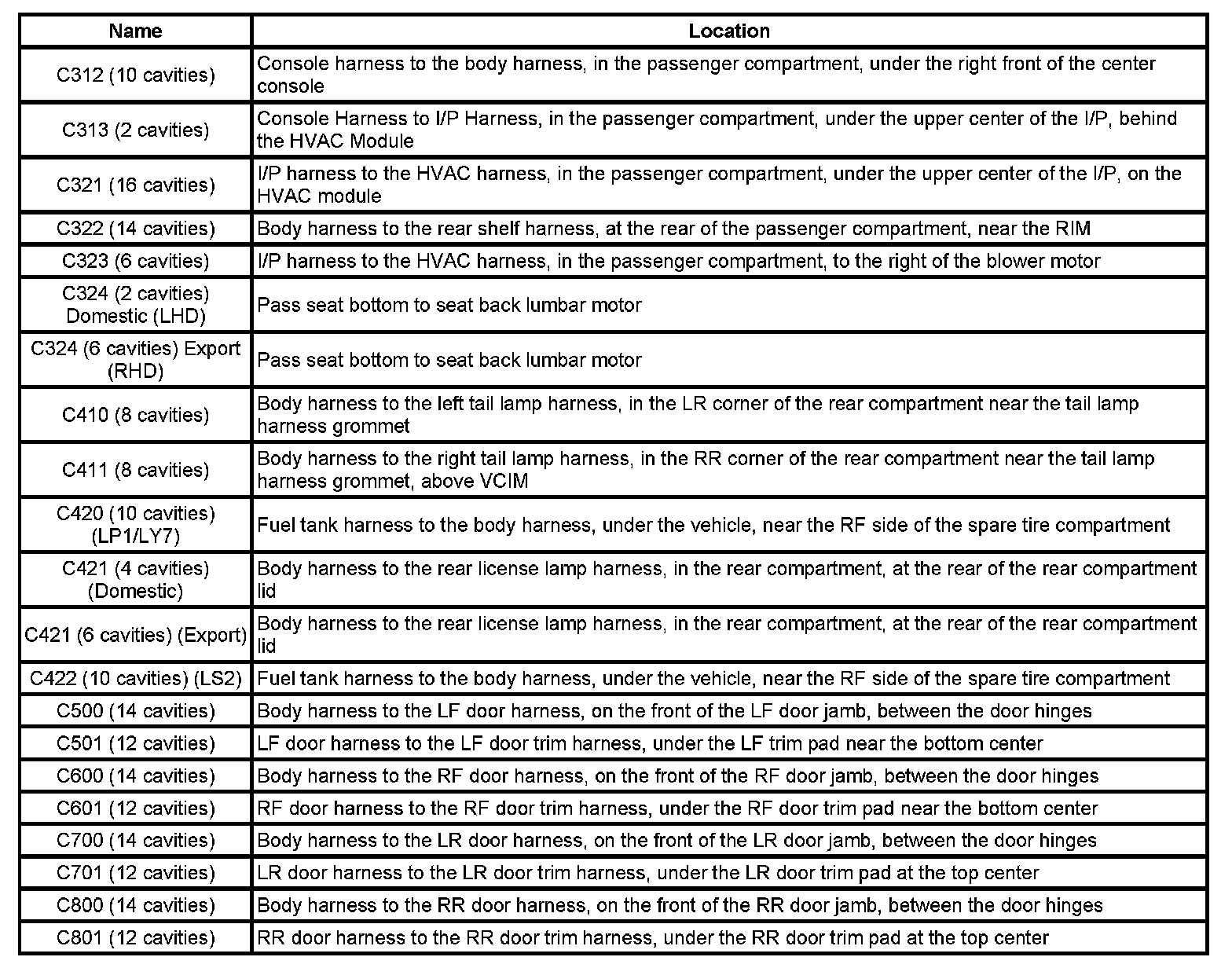

C312 - C801:
