Radio/Stereo



Entertainment/Communication Connector End Views

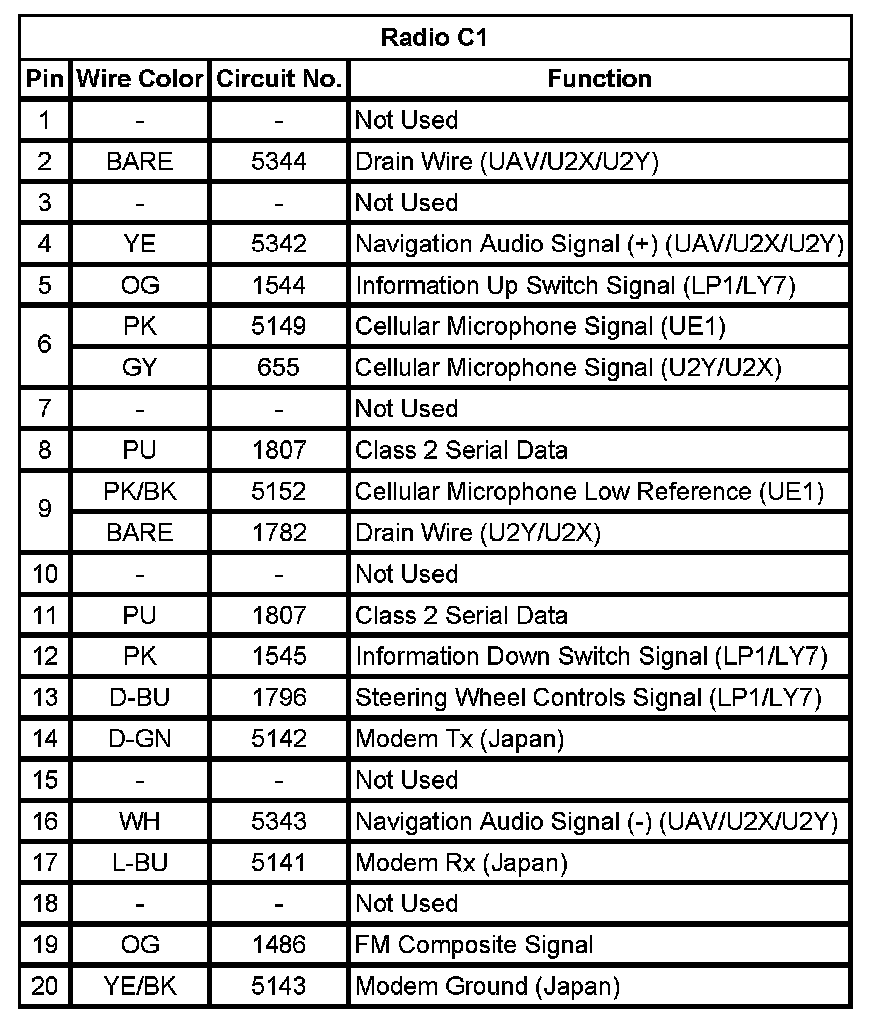

Radio C1














Radio C2














Radio C3














Radio C4 (Export w/U2X/U2Y)














Radio C4 (Export w/U2Y/U2X)














Digital Radio Receiver (U2K/U2L)
