C801



Inline Harness Connector End Views

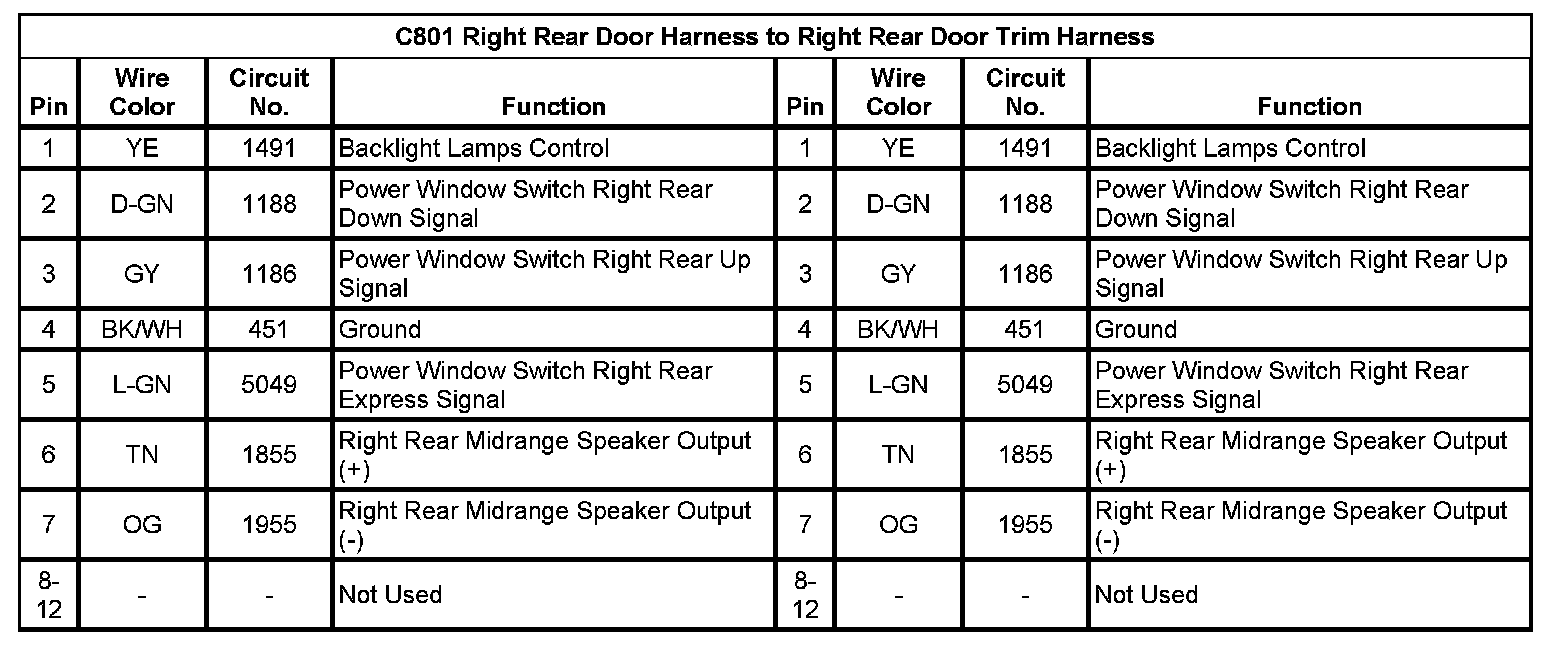

C801 Right Rear Door Harness to Right Rear Door Trim Harness
