C601

Inline Harness Connector End Views

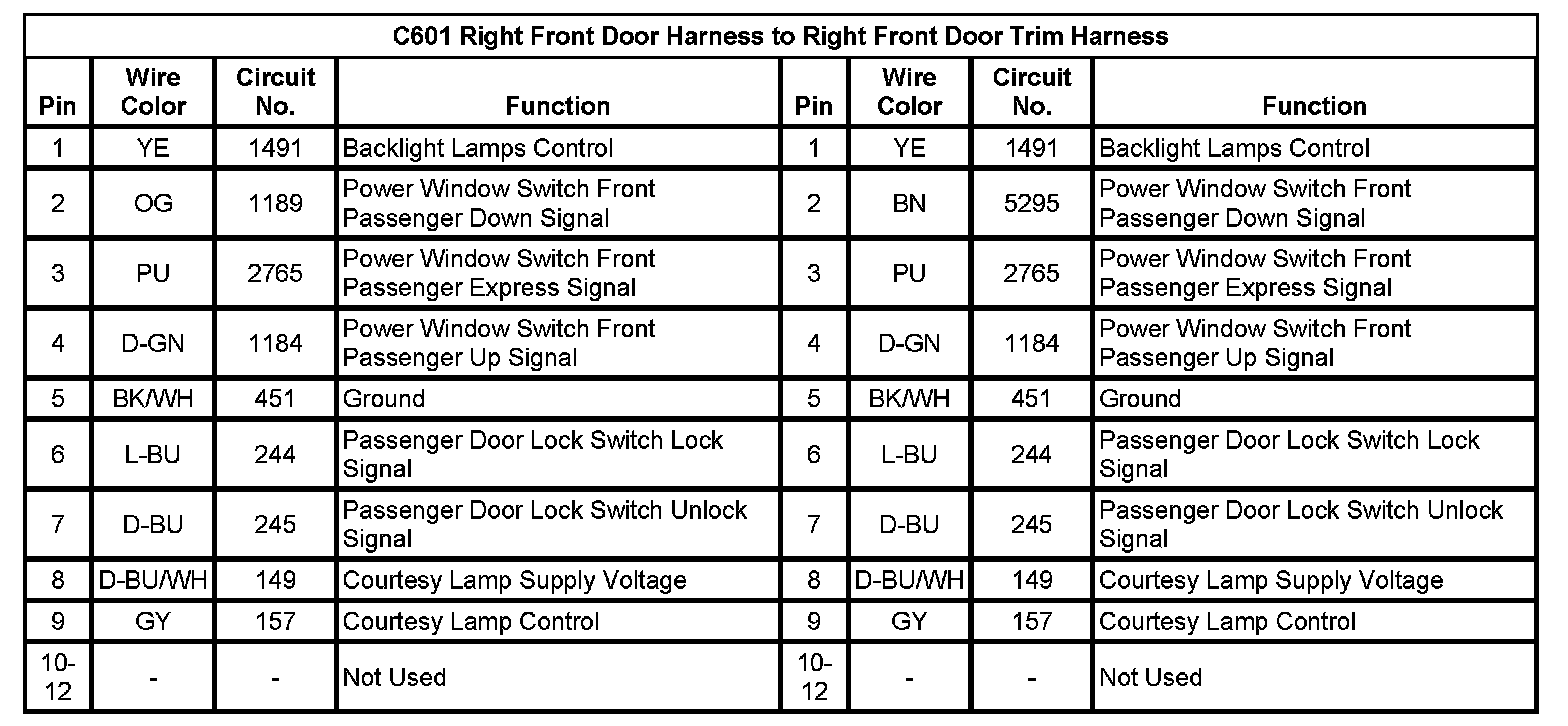

C601 Right Front Door Harness to Right Front Door Trim Harness
