Cadillac
>>
2007
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C400 - C499
>>
C410
C410
Inline Harness Connector End Views

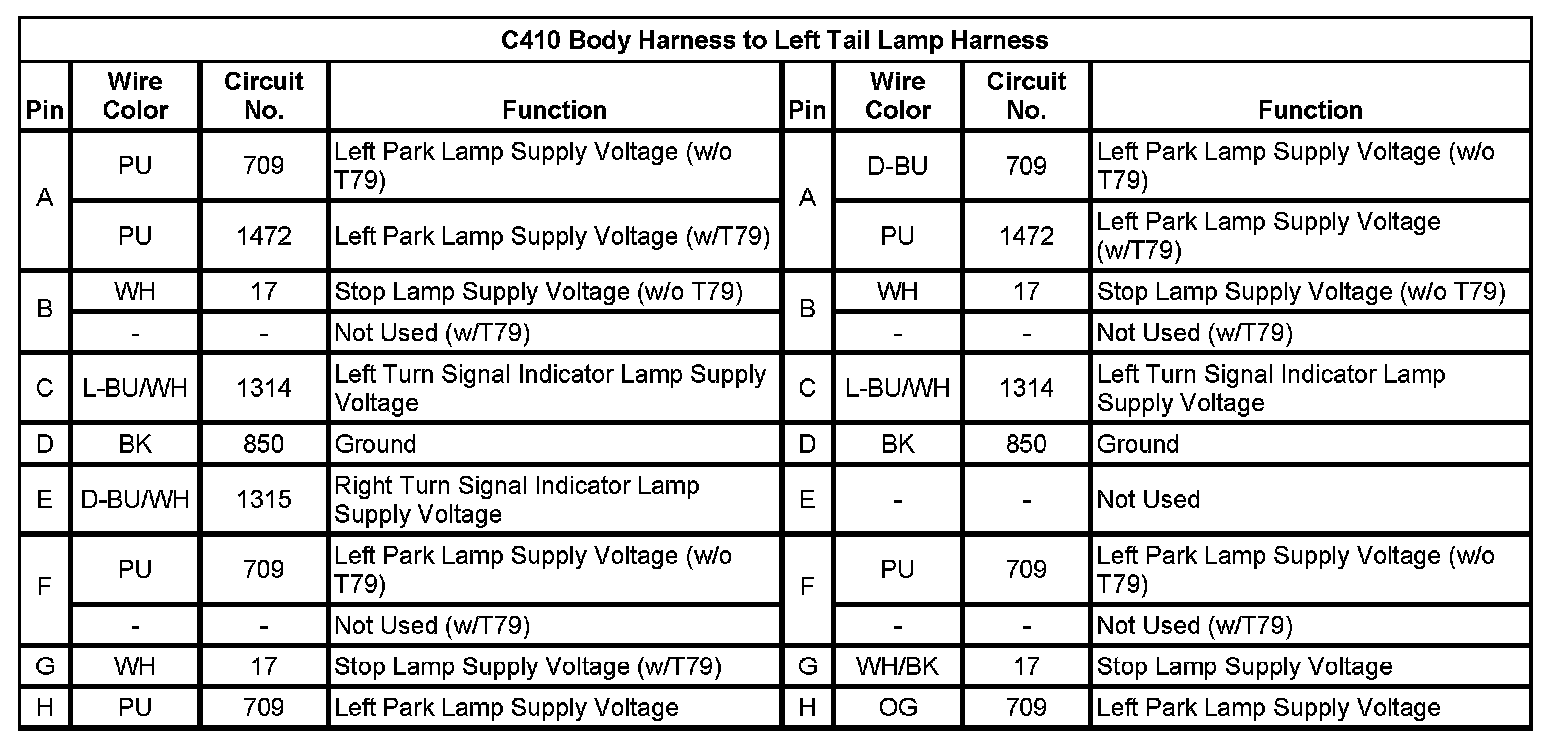

C410 Body Harness to Left Tail Lamp Harness
