C321



Inline Harness Connector End Views

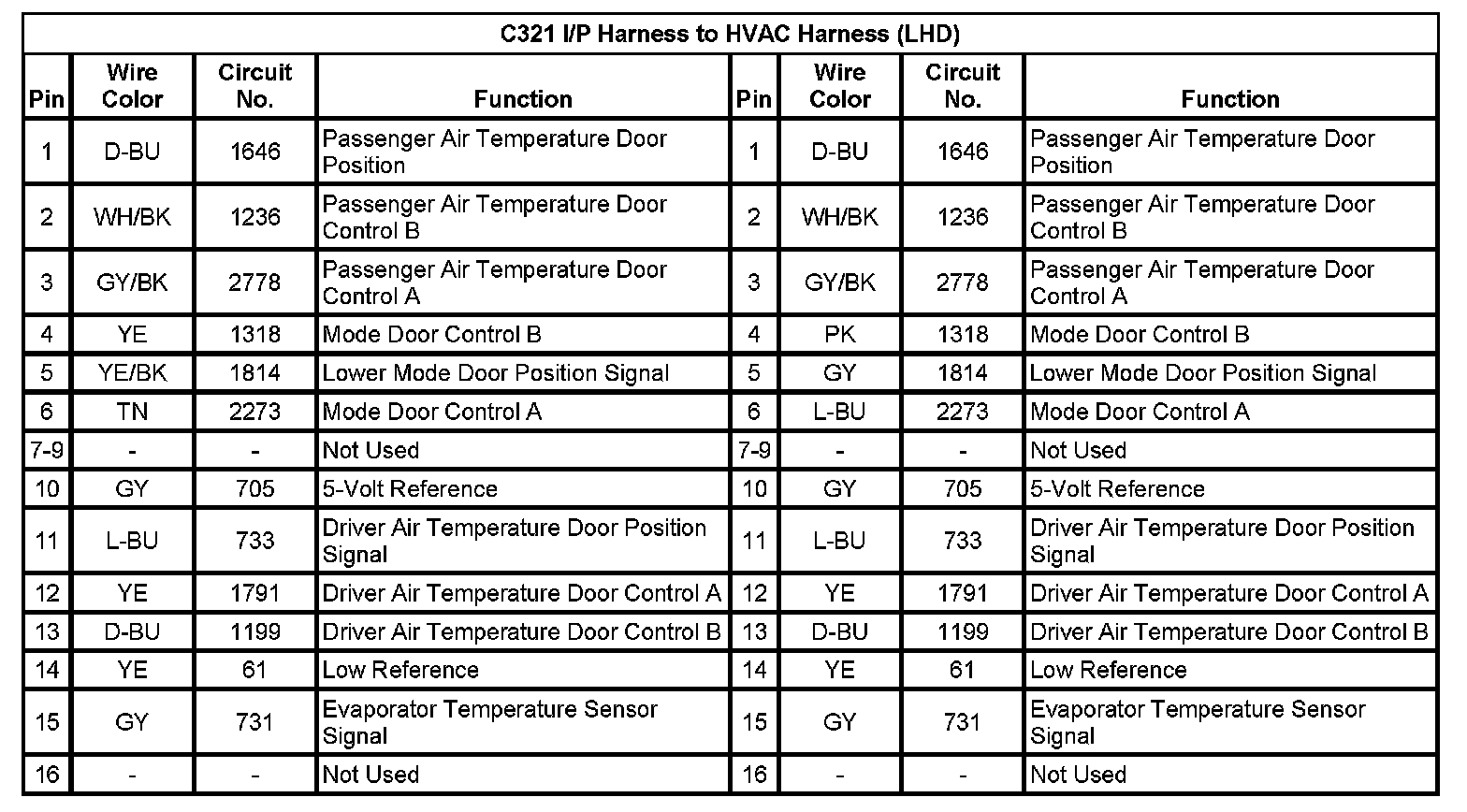

C321 I/P Harness to HVAC Harness (LHD)

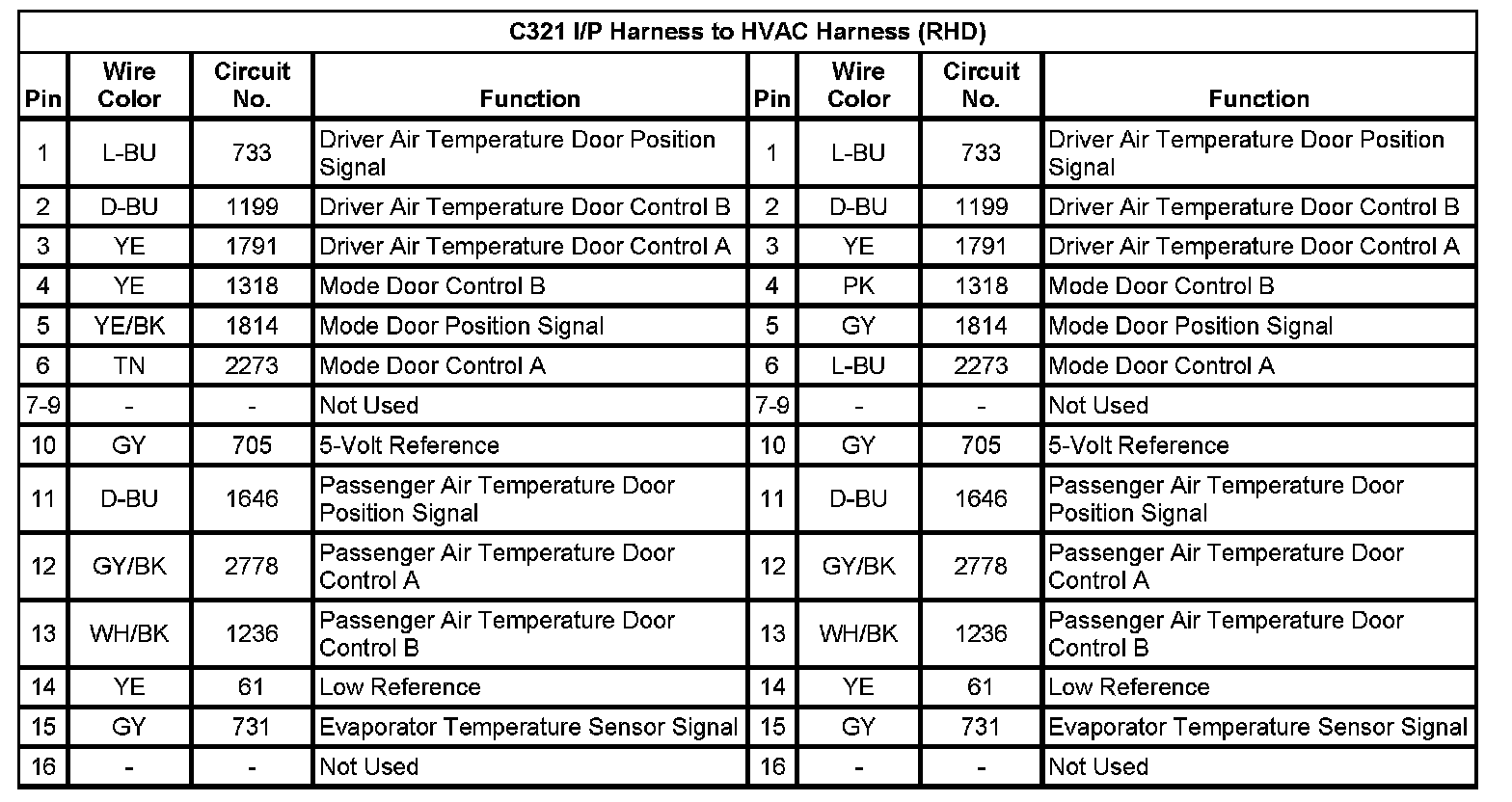

C321 I/P Harness to HVAC Harness (RHD)
