C202



Inline Harness Connector End Views

C202 I/P Harness to Steering Column Harness

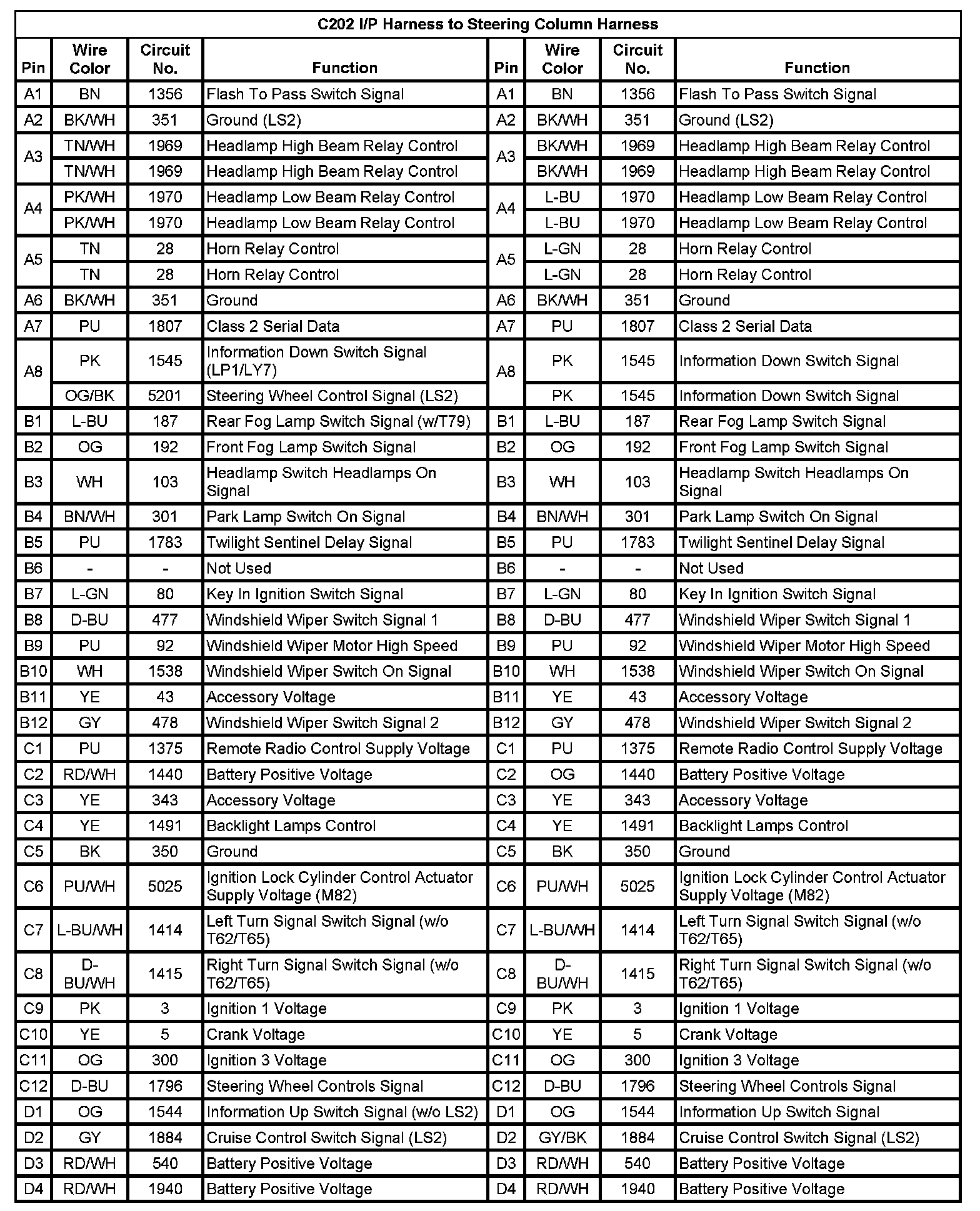

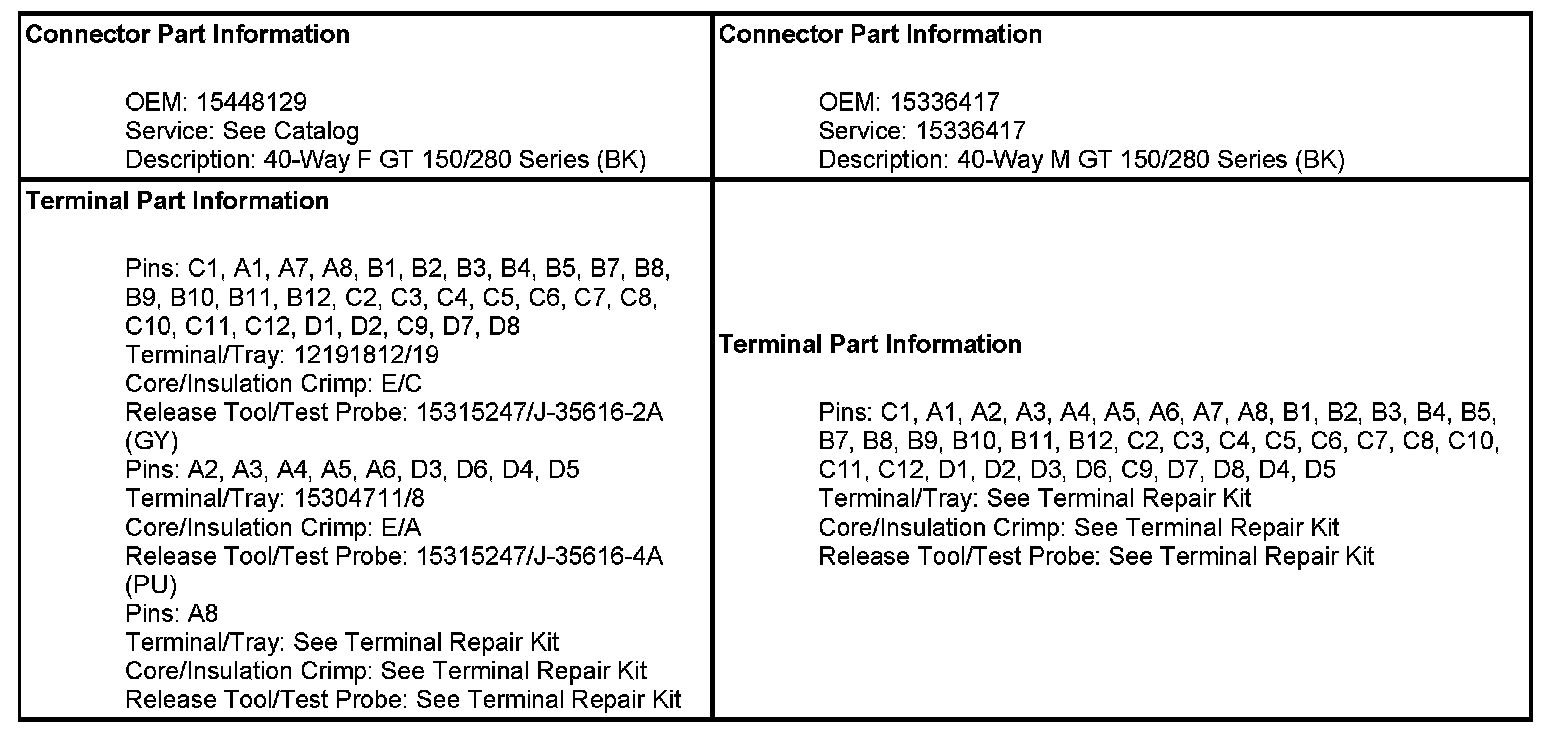

C202 I/P Harness To Steering Column Harness (Pin A1 To D4):





C202 I/P Harness To Steering Column Harness (Pin D5 To D8):
