Instrument Cluster / Carrier



Displays and Gages Connector End Views

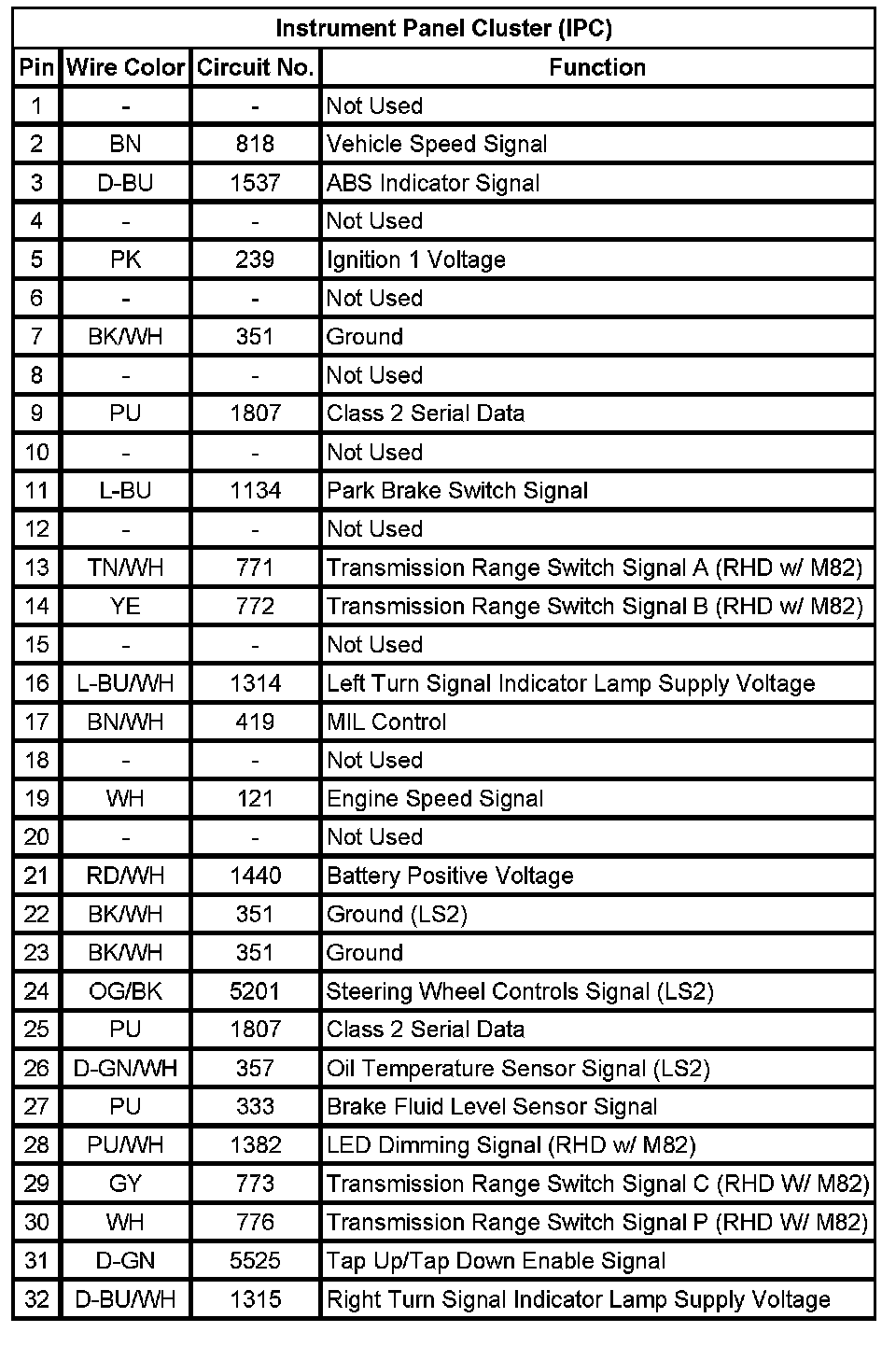

Instrument Panel Cluster (IPC)
