Antenna, TV
Antenna, TV
Entertainment/Communication Connector End Views

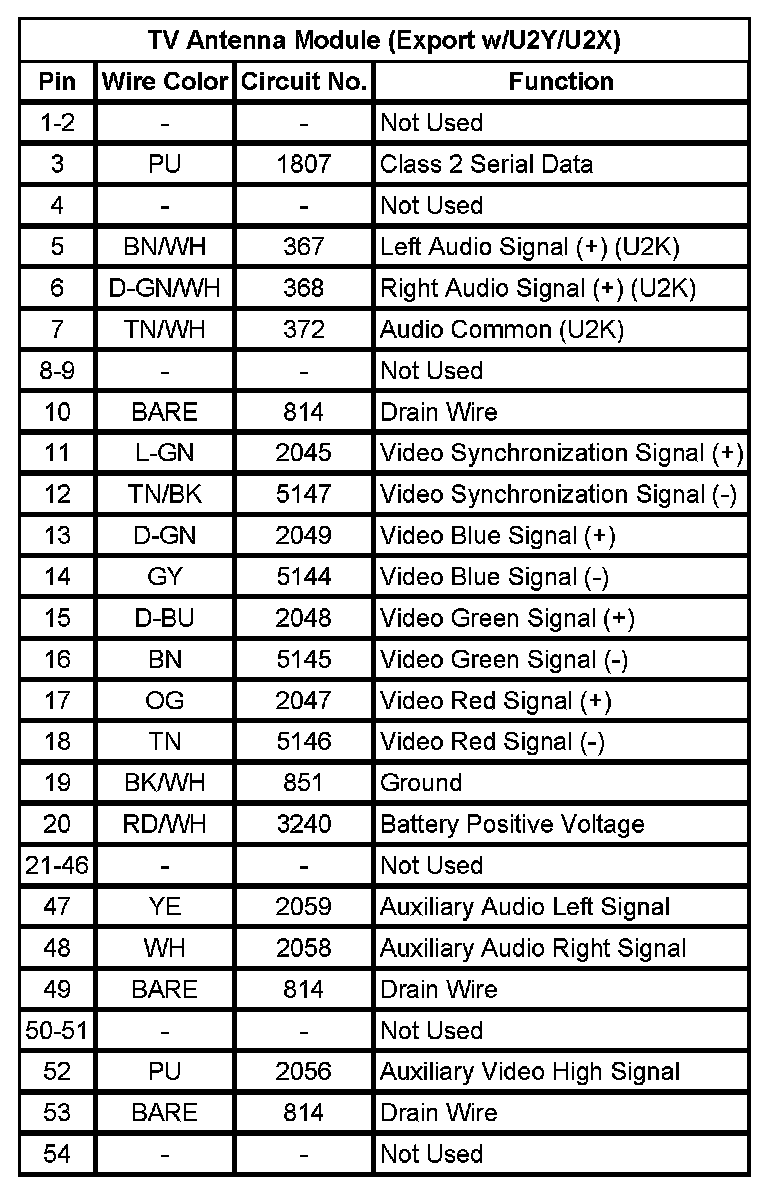

TV Antenna Module (Export w/U2Y/U2X)
