Brake Master Cylinder: Locations

Brake Fluid Level Switch

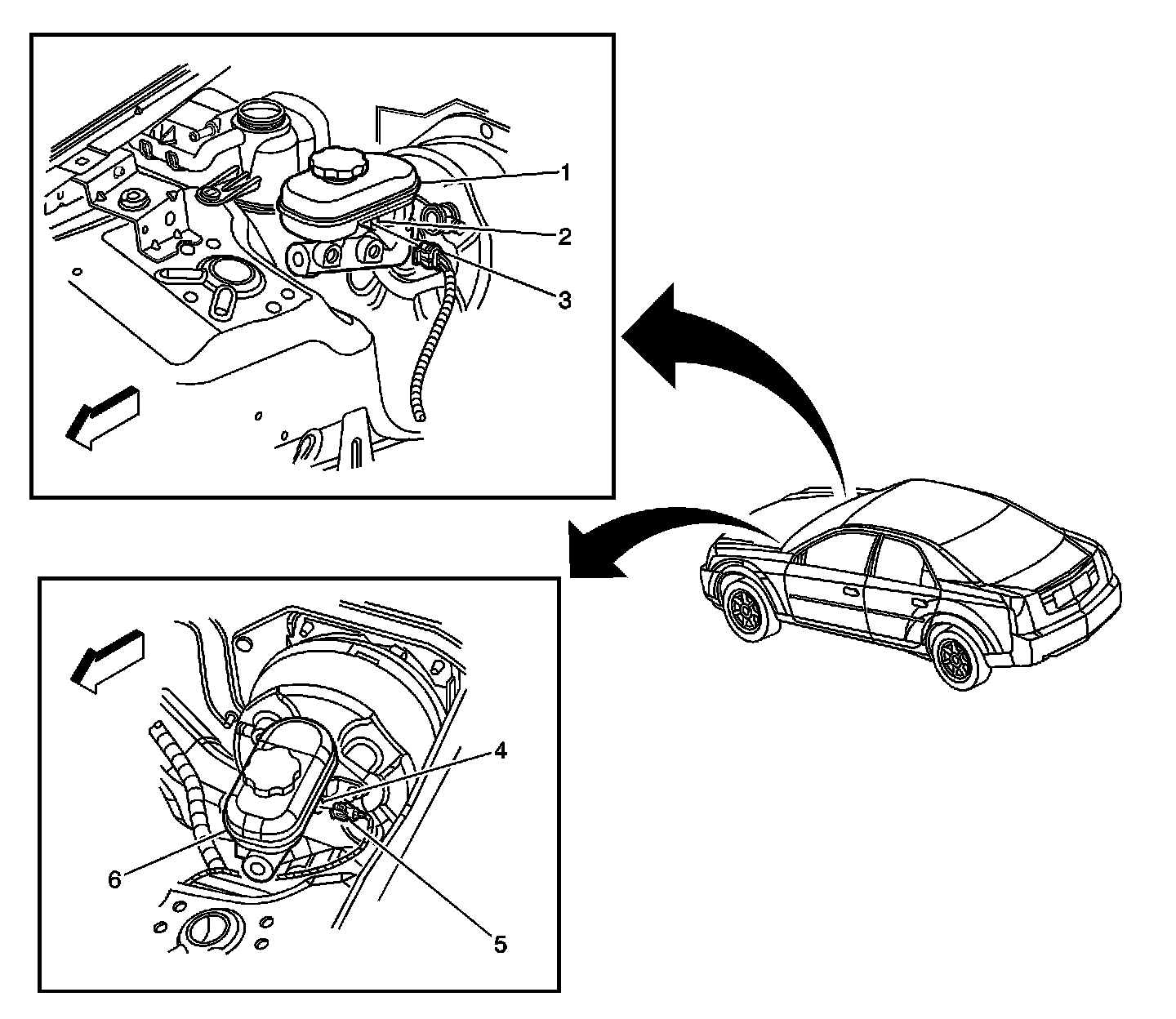

Brake Fluid Level Switch:

1 - Master Cylinder (RHD)
2 - Brake Fluid level Switch (RHD)
3 - Brake Fluid level Switch Connector (RHD)
4 - Brake Fluid level Switch (LHD)
5 - Brake Fluid level Switch Connector (LHD)
6 - Master Cylinder (LHD)
