SIR Wiring Schematics

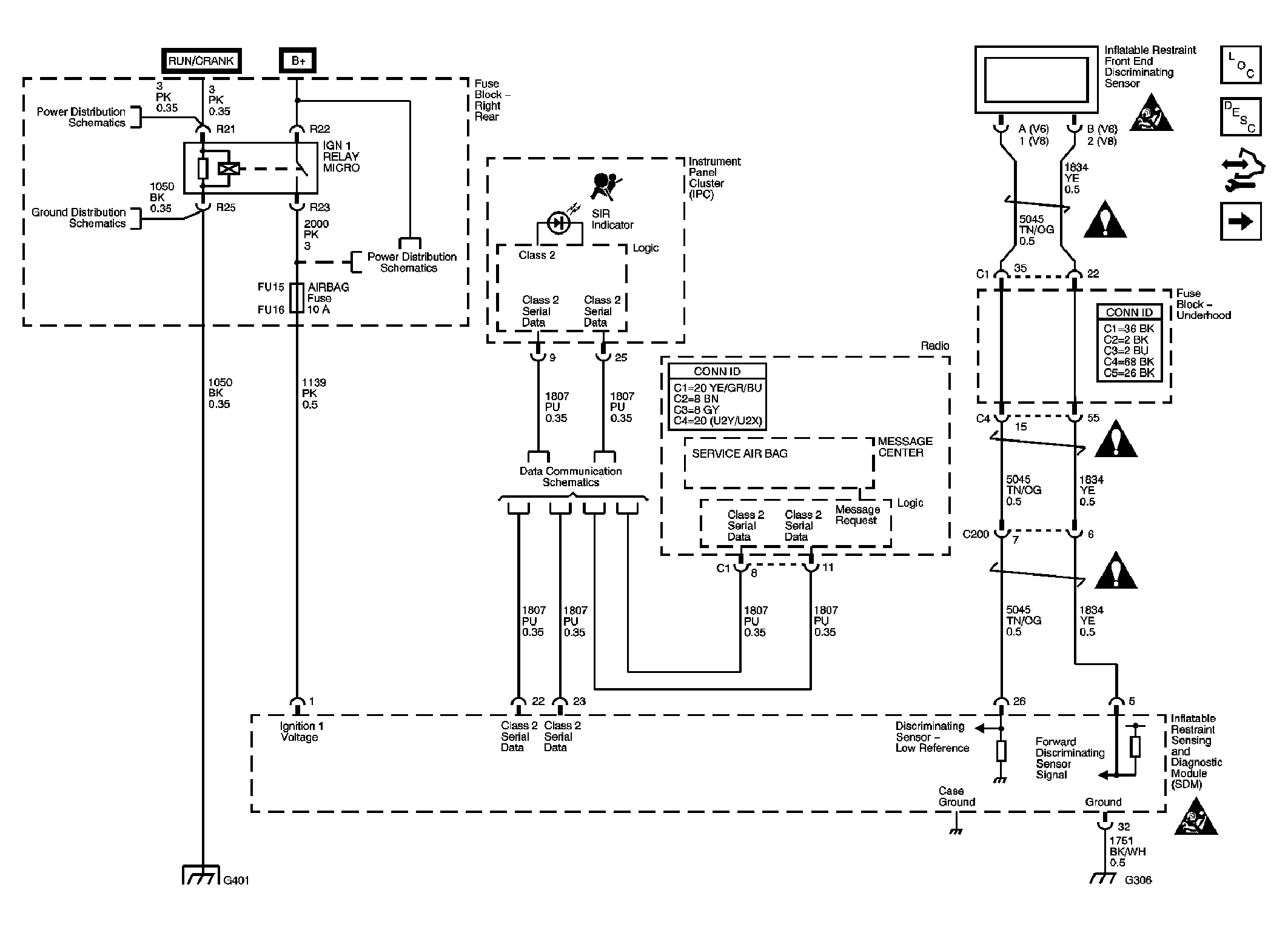

Fig 1: Power, Ground, Indicator DIC, and Front End Discriminating Sensor Wiring Schematic
GM1787502Courtesy of GENERAL MOTORS CORP.

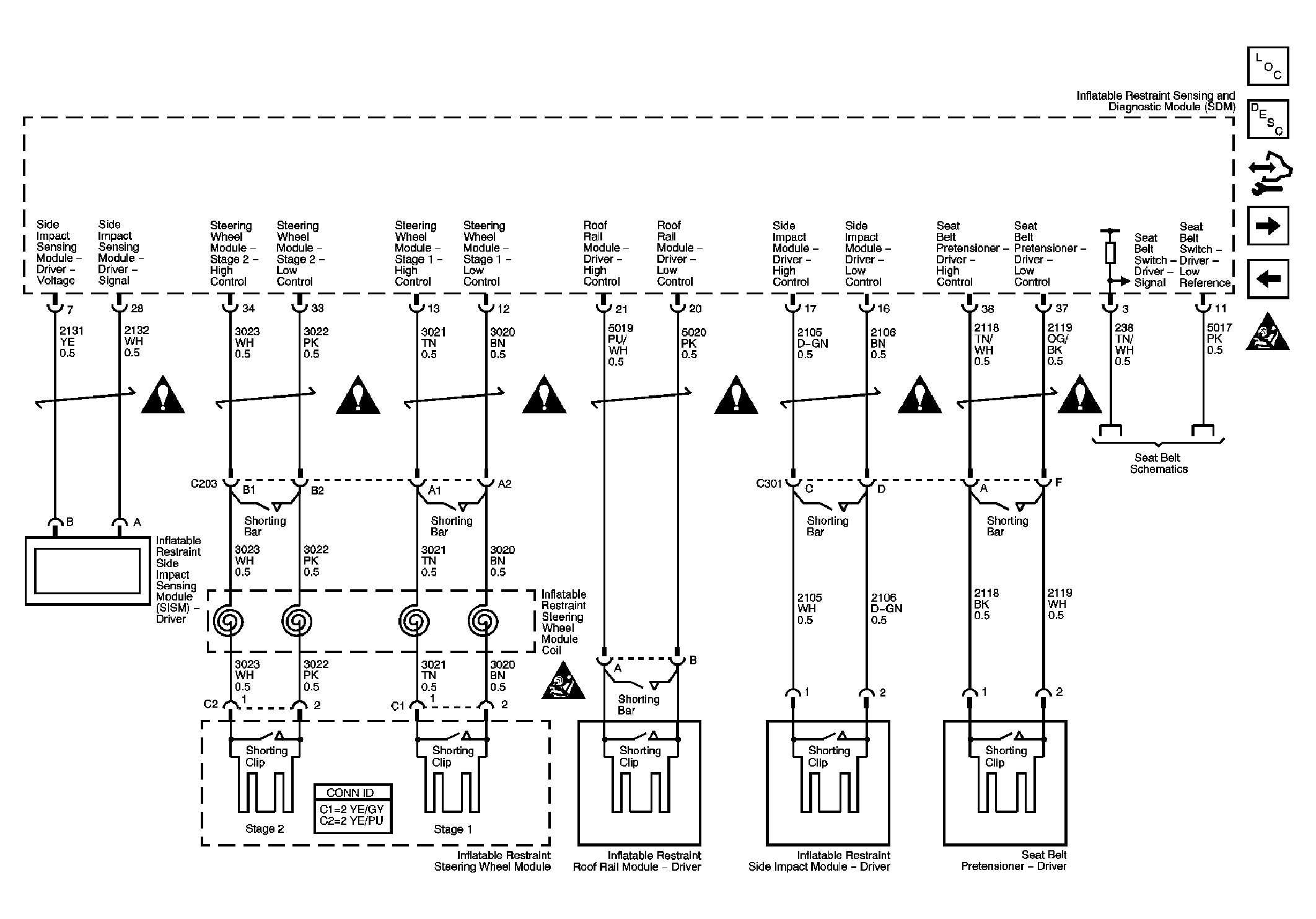

Fig 2: Driver SIR Modules and Sensor Wiring Schematic
GM1787511Courtesy of GENERAL MOTORS CORP.

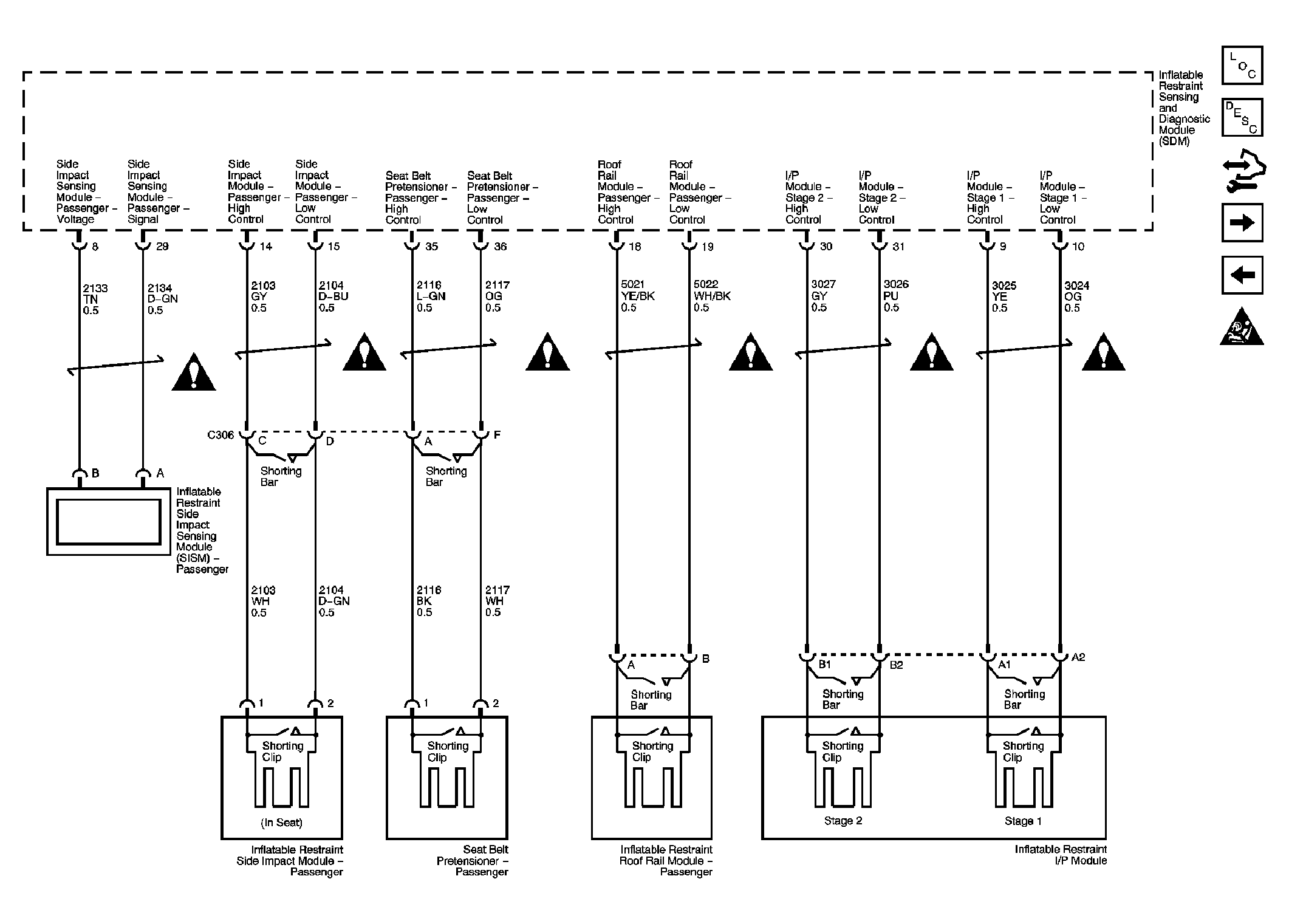

Fig 3: Passenger SIR Modules and Sensor Wiring Schematic
GM1787541Courtesy of GENERAL MOTORS CORP.

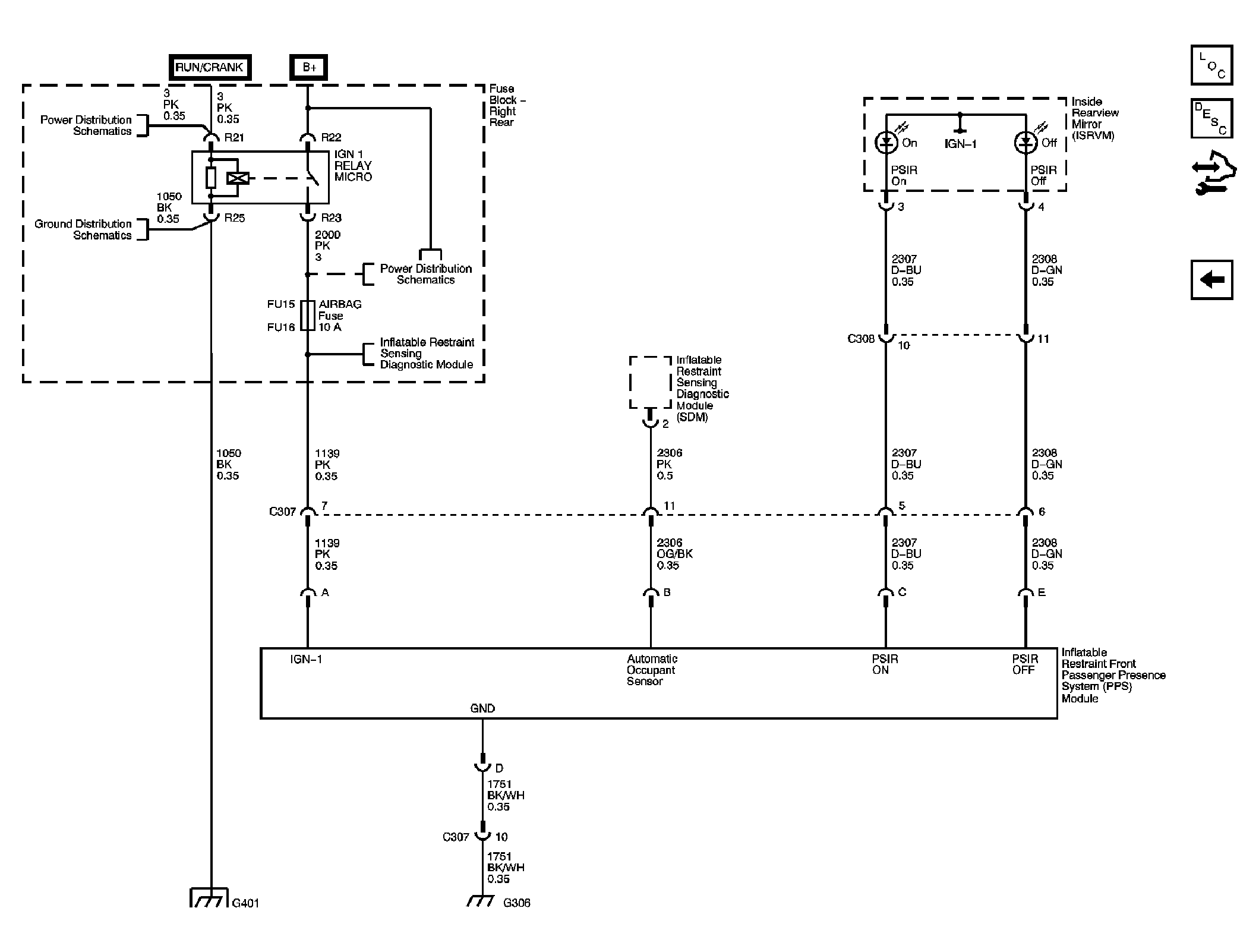

Fig 4: Inflatable Restraint Front Passenger Pressence System (PPS) Wiring Schematic
GM1787545Courtesy of GENERAL MOTORS CORP.
