Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

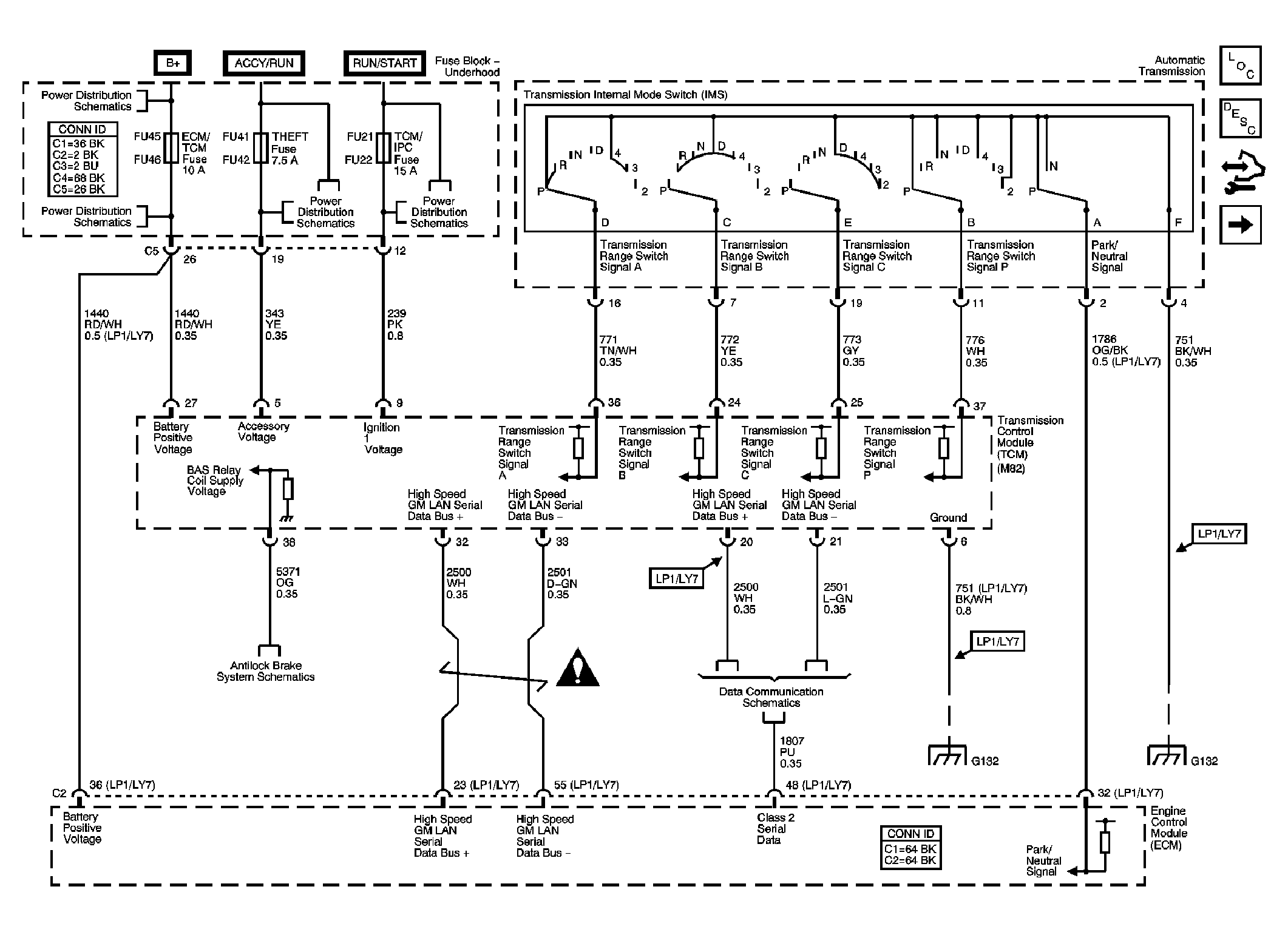

Fig 1: Power, Ground, Serial Data, TCM, and Inernal Mode Switch (IMS)
GM1787405Courtesy of GENERAL MOTORS CORP.

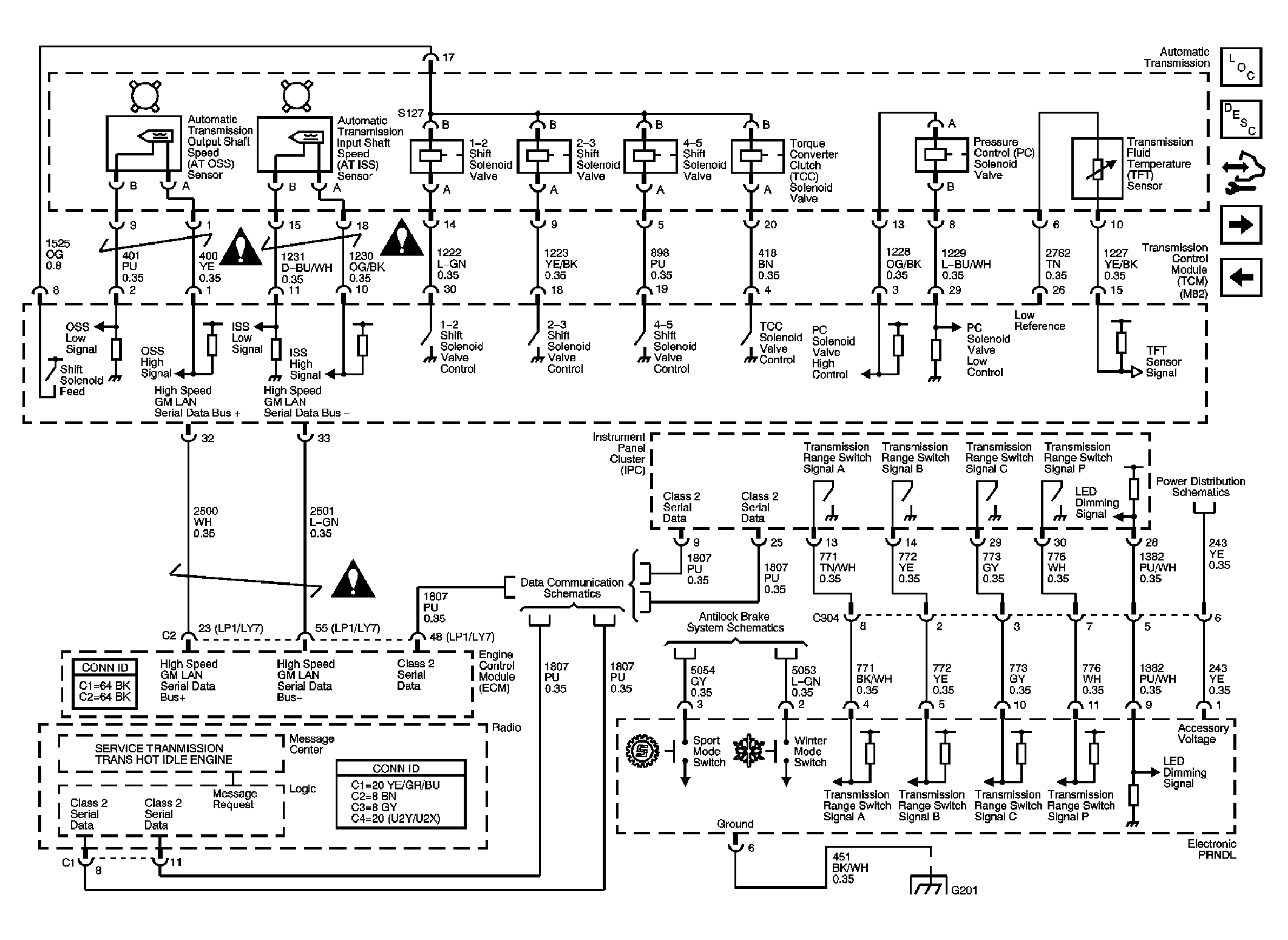

Fig 2: A/T Sensors, Solenoids, DIC, and Electronic PRNDL
GM1787415Courtesy of GENERAL MOTORS CORP.

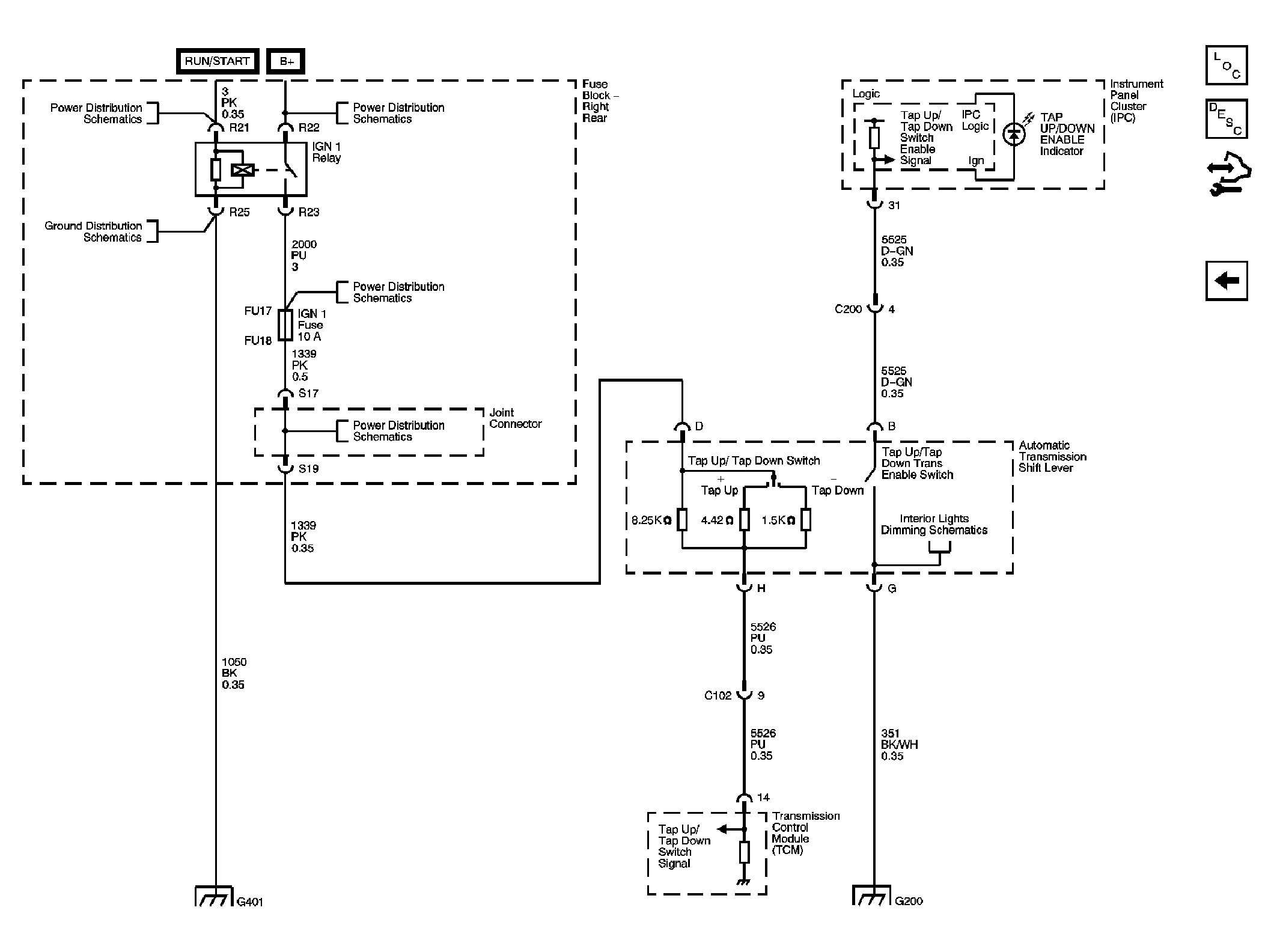

Fig 3: Tap Up/Down Shift Lever (LHD)
GM1787418Courtesy of GENERAL MOTORS CORP.
