Auxiliary Water Pump Inlet Hose Replacement
WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedures: Drain the coolant. Refer to Refer to Cooling System Draining and Filling (GE 47716) or Cooling System Draining and Filling (Static Fill) |
|

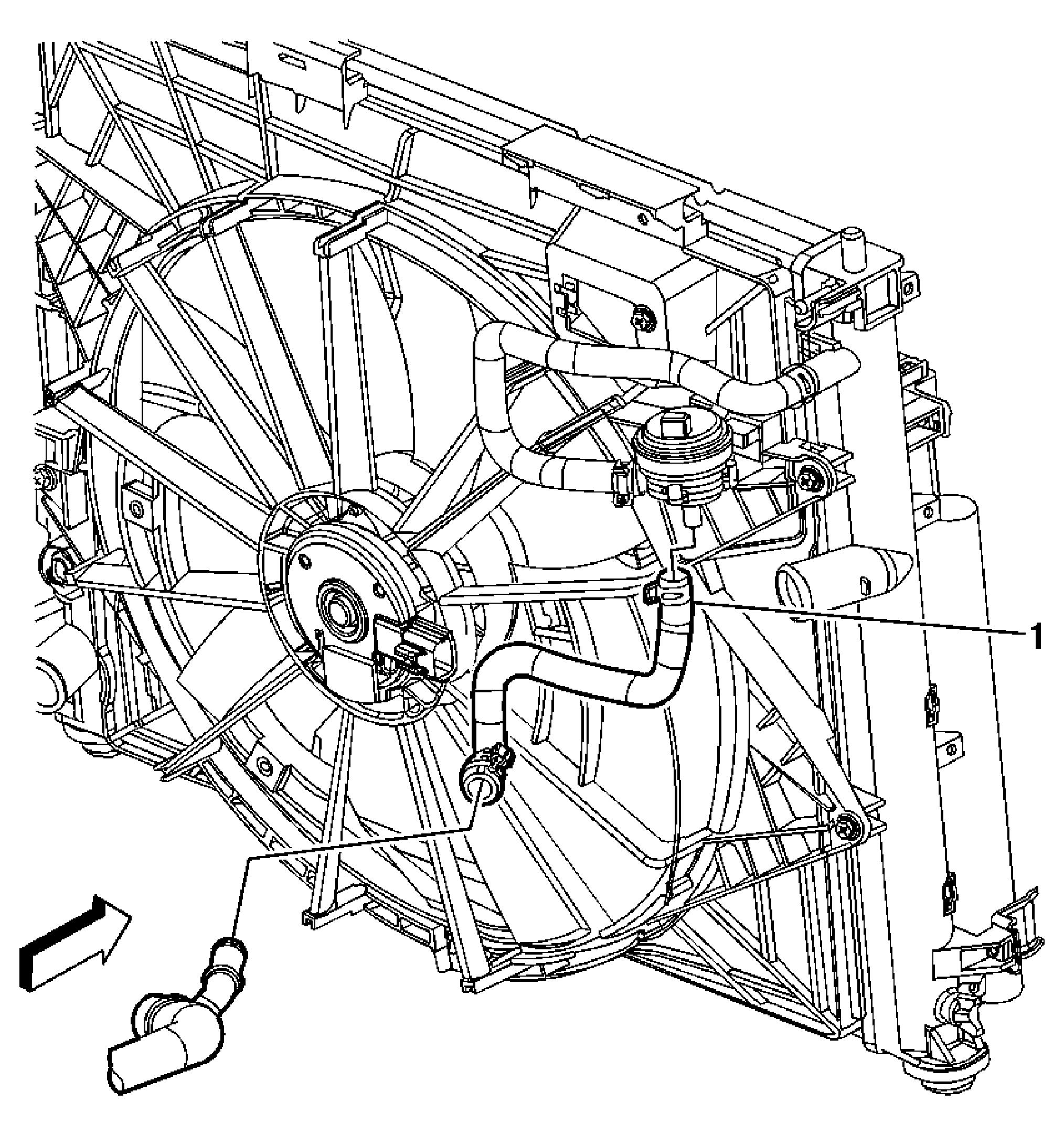

| 1 | Auxiliary Water Pump Inlet Hose Procedure: Using J 38185: Hose Clamp Pliers reposition the auxiliary water pump inlet hose clamps. Special Tools: J 38185: Hose Clamp Pliers |
