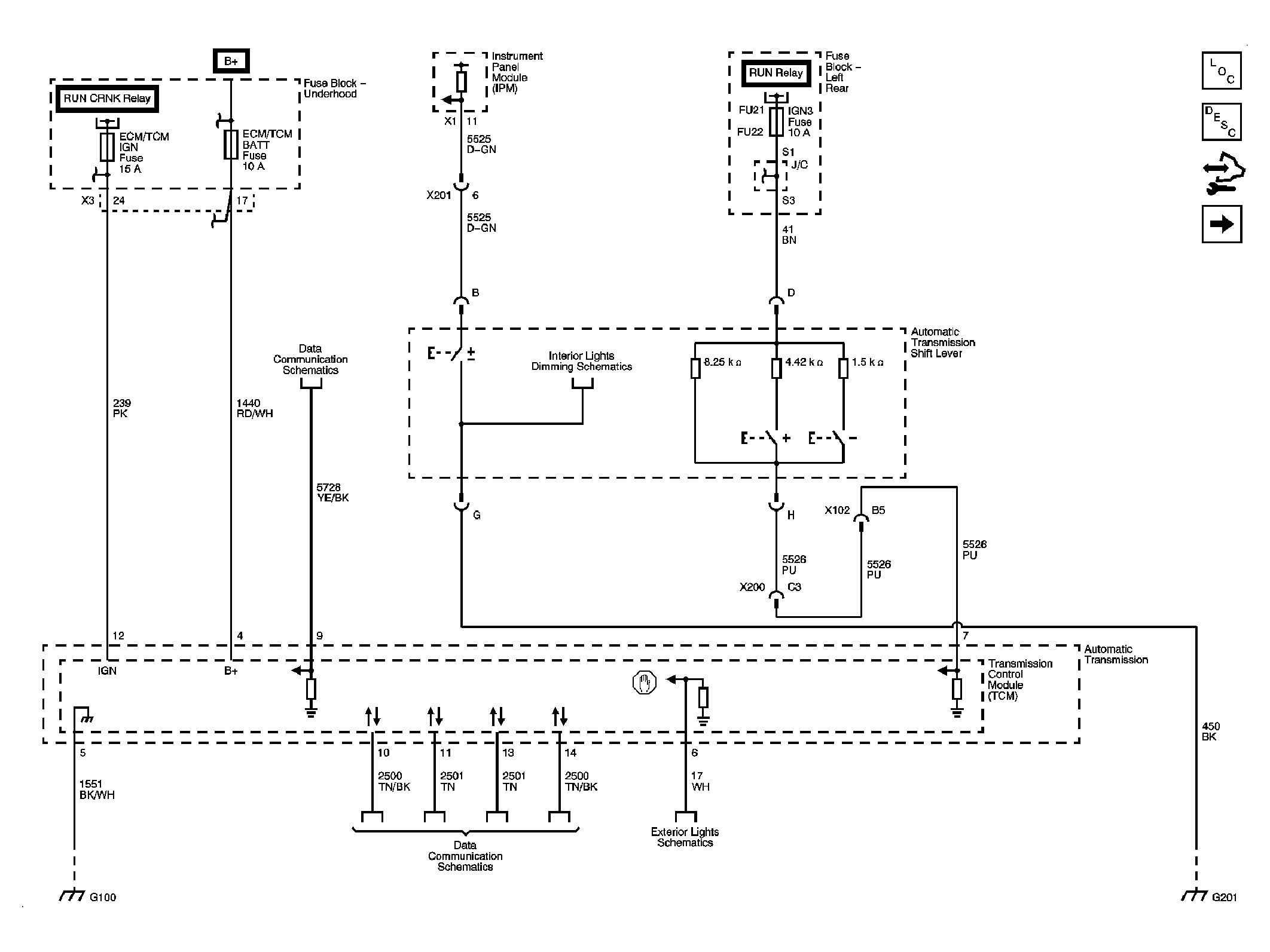

Fig 1: TCM Power, Grounds, ECM, IPM
Courtesy of GENERAL MOTORS CORP.
Fig 2: ECM, EBCM
Courtesy of GENERAL MOTORS CORP.
Fig 3: Automatic Transmission Shift Lever Assembly, IPM
