Driver Seat Schematics

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

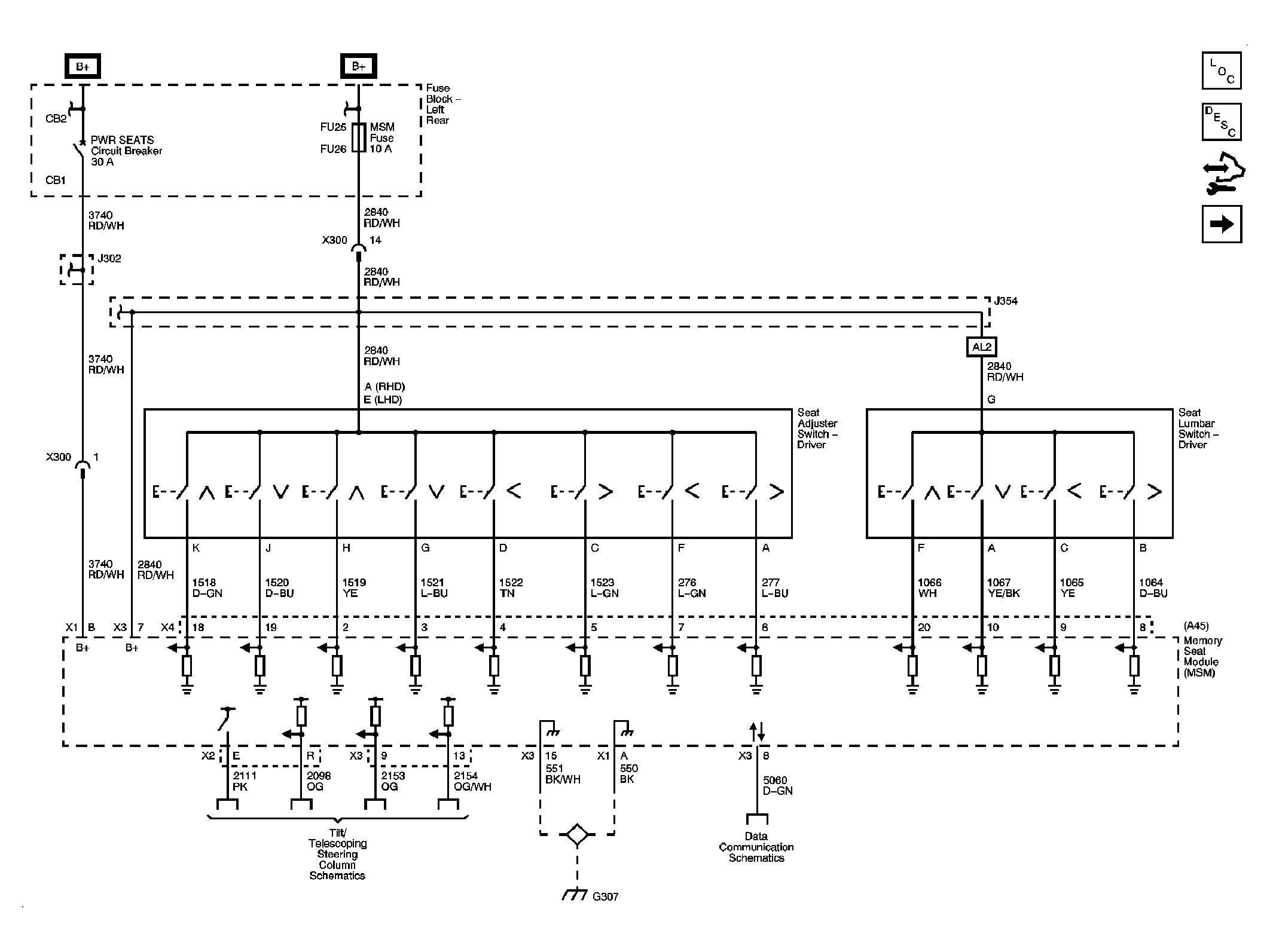

Fig 1: Memory Seat Module Power, Ground and DLC
GM2064007Courtesy of GENERAL MOTORS CORP.

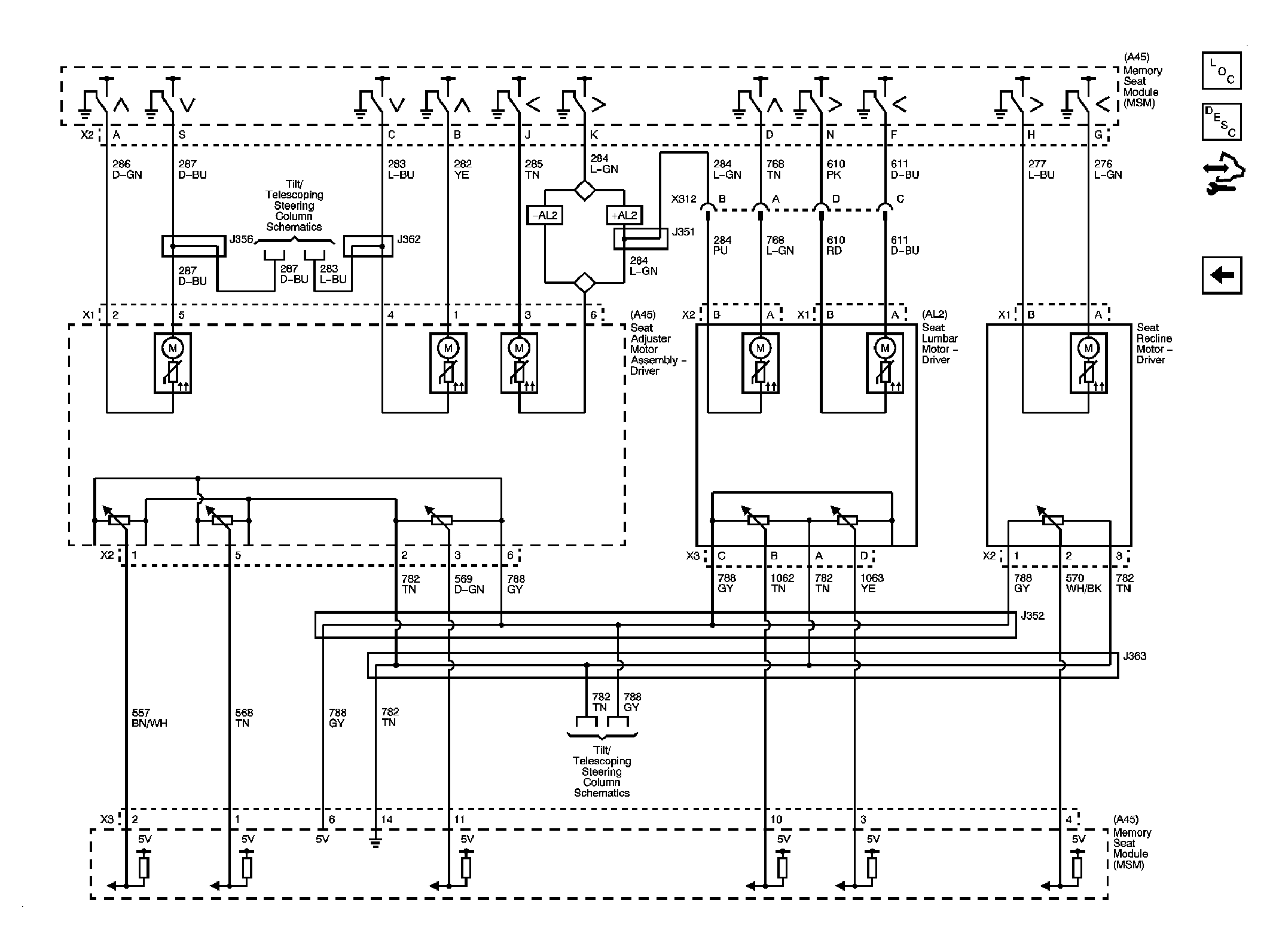

Fig 2: Position Sensors and Motors
GM2064011Courtesy of GENERAL MOTORS CORP.
