Heated/Cooled Seat Schematics

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

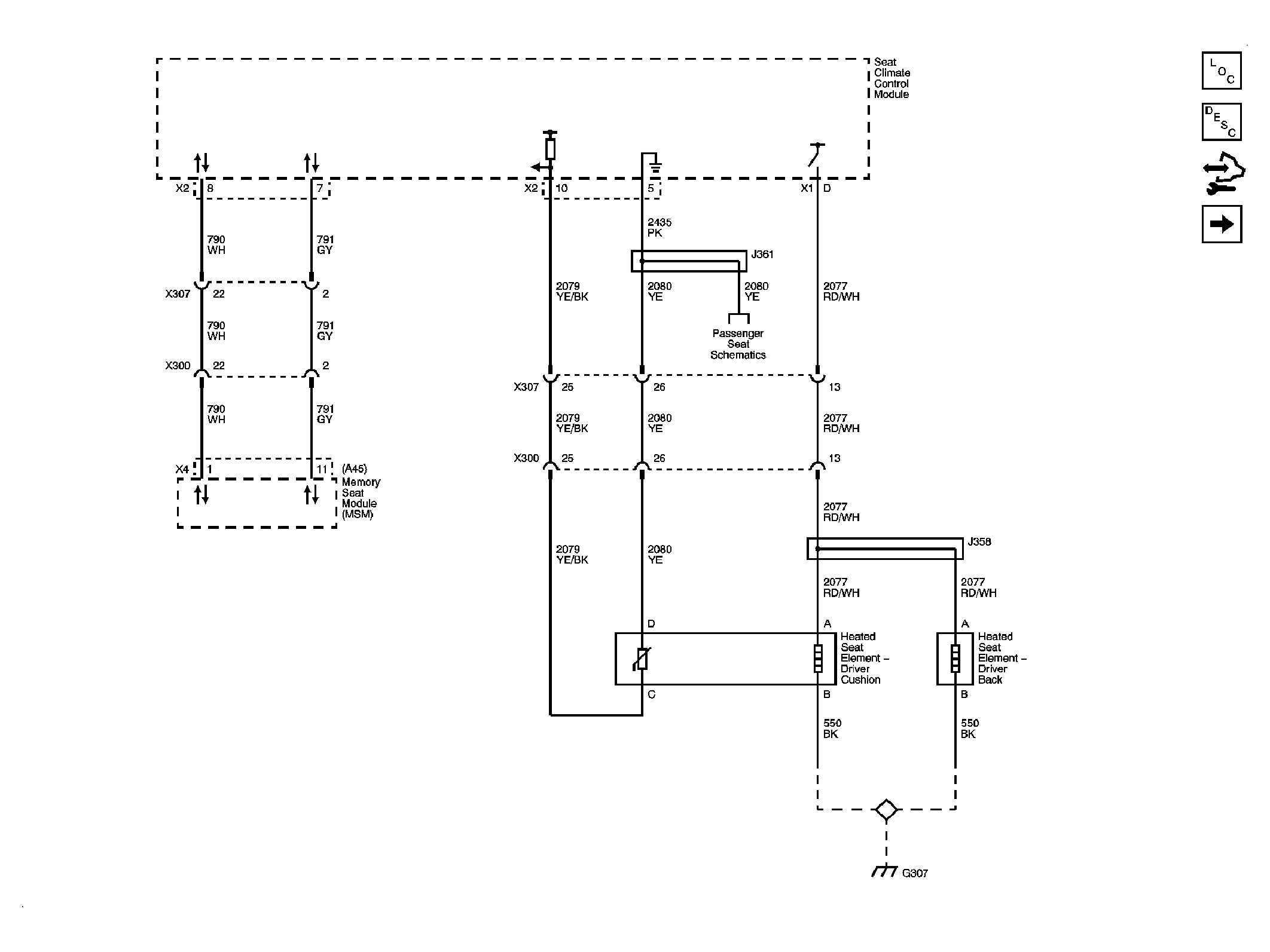

Fig 1: Driver Heated Seat

Courtesy of GENERAL MOTORS CORP.

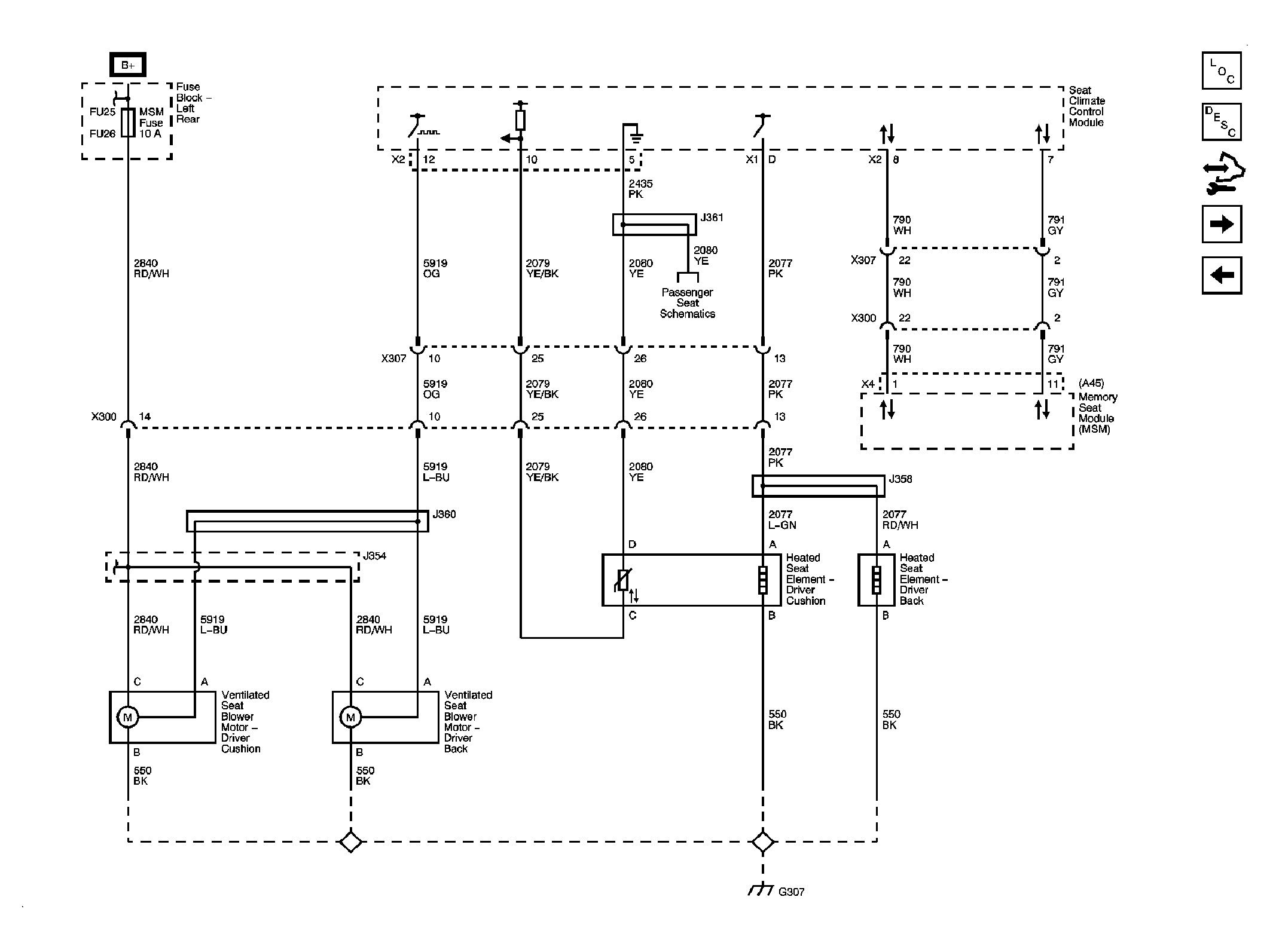

Fig 2: Driver Heated/Cooled Seat

Courtesy of GENERAL MOTORS CORP.

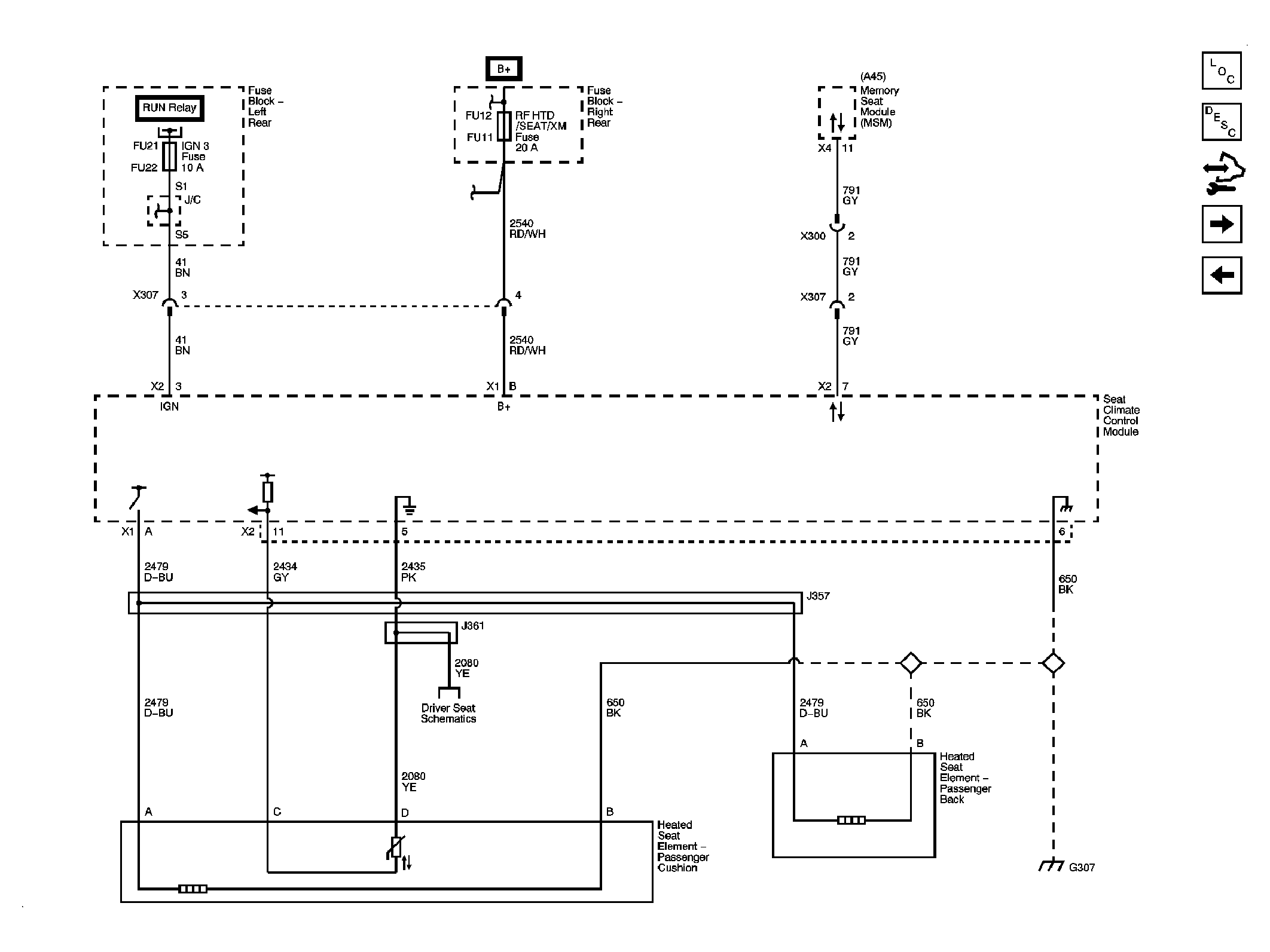

Fig 3: Front Passenger Heated Seat

Courtesy of GENERAL MOTORS CORP.

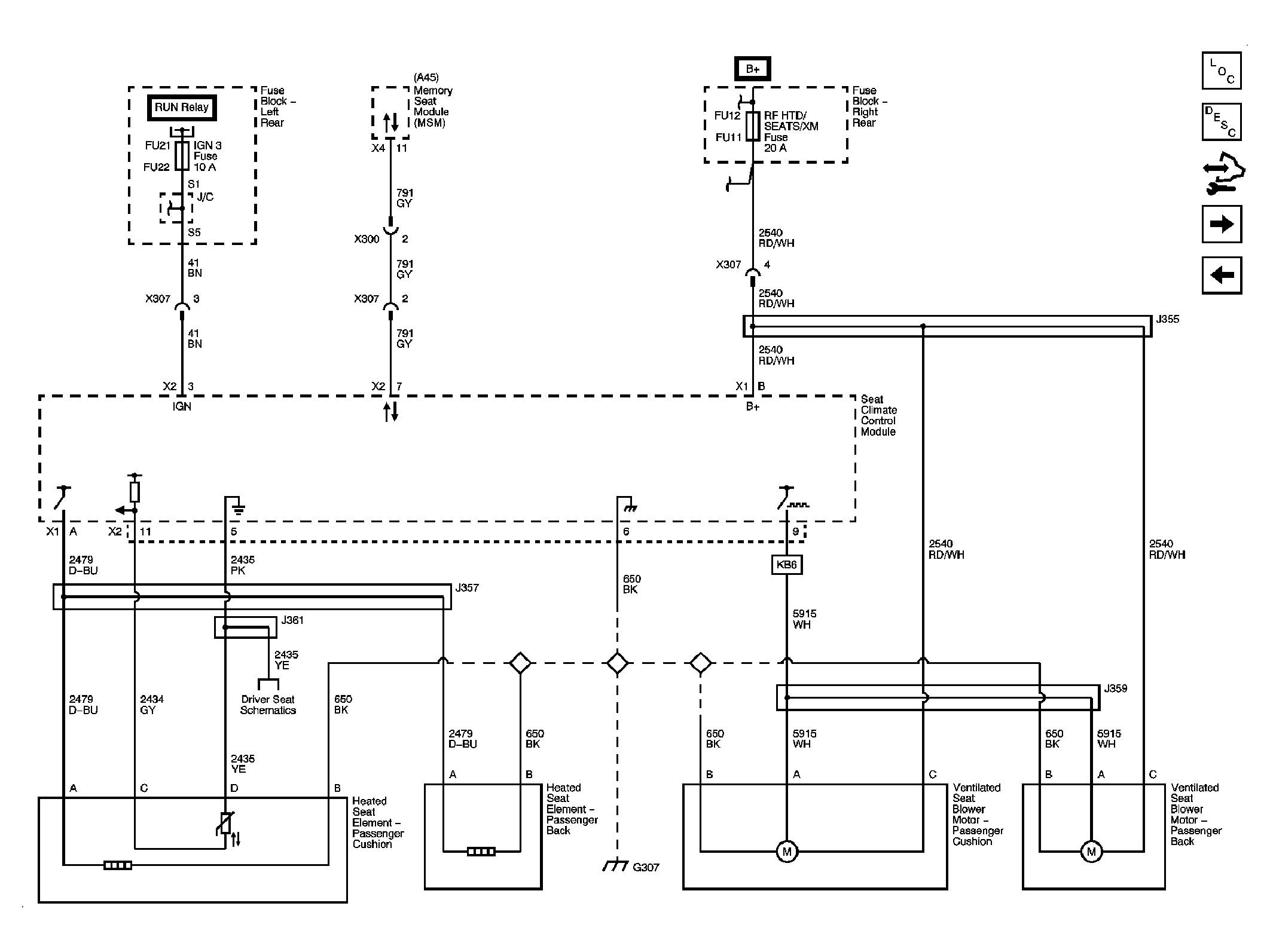

Fig 4: Front Passenger Heated/Cooled Seat

Courtesy of GENERAL MOTORS CORP.

Fig 5: Rear Heated Seat Elements

Courtesy of GENERAL MOTORS CORP.

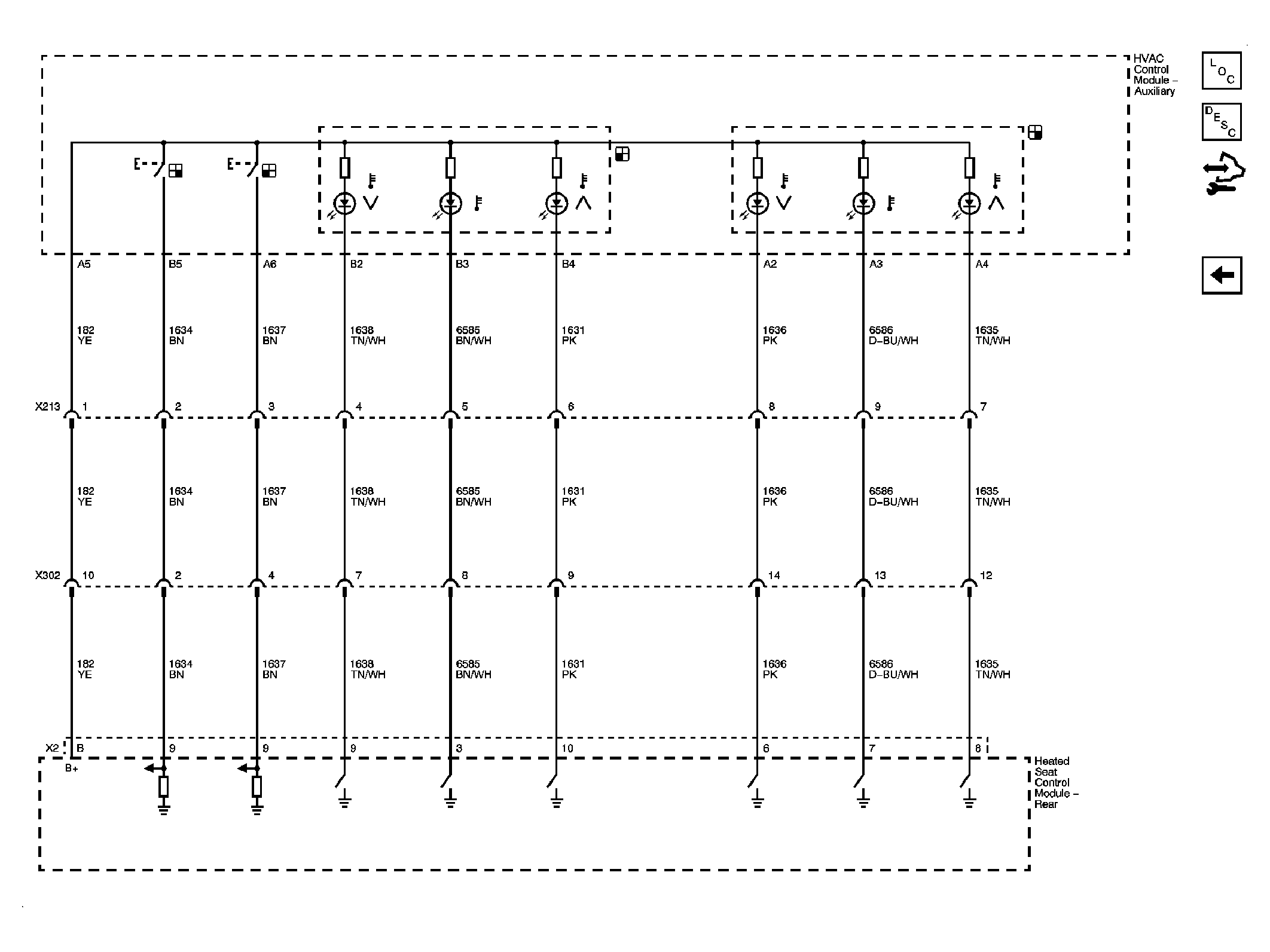

Fig 6: Rear Heated Seat Controls

Courtesy of GENERAL MOTORS CORP.
