Automatic Transmission Control Indicator Replacement
WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

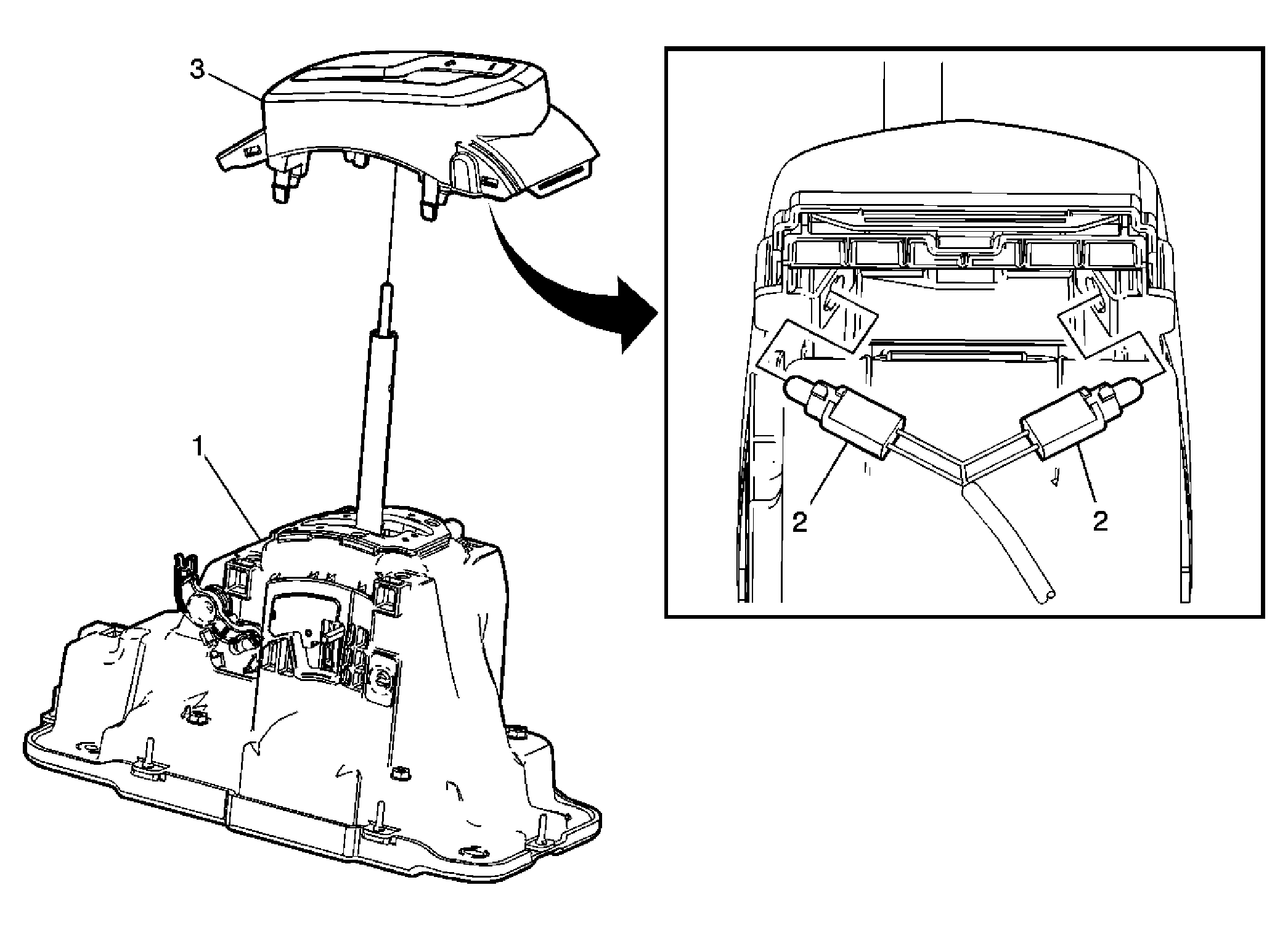

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the shift control knob. Refer to Transmission Control Lever Knob Replacement .
- Remove the center console assembly. Refer to Front Floor Console Replacement
.
|
| 1 |
Shift Control |
| 2 |
Shift Control Indicator Lamp
Tip:
- Remove the shift indicator lamp sockets from the shift indicator by rotating the lamp sockets one quarter turn counterclockwise.
- Install the shift indicator lamp sockets to the shift indicator. Rotate each lamp socket one quarter turn clockwise to lock in place.
|
| 3 |
Shift Control Indicator |
