Antilock Brake System Schematics (JL7)

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

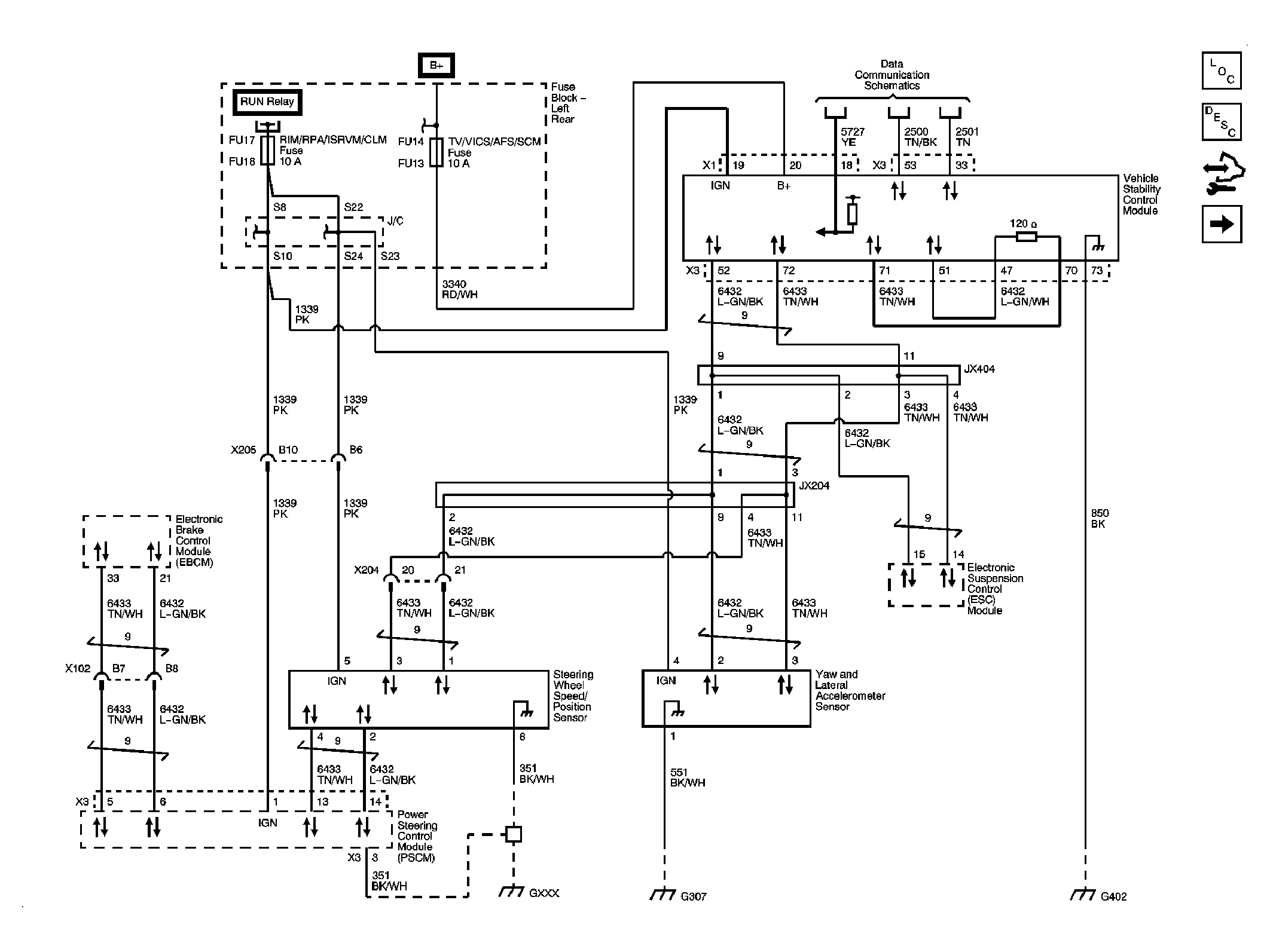

Fig 1: Steering Angle and Acceleration Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 2: EBCM Power, Ground, and DLC

Courtesy of GENERAL MOTORS CORP.

Fig 3: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 4: Traction Control

Courtesy of GENERAL MOTORS CORP.
