Antilock Brake System Schematics (Except JL7)

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: EBCM Module Power, Ground, and DLC

Courtesy of GENERAL MOTORS CORP.

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

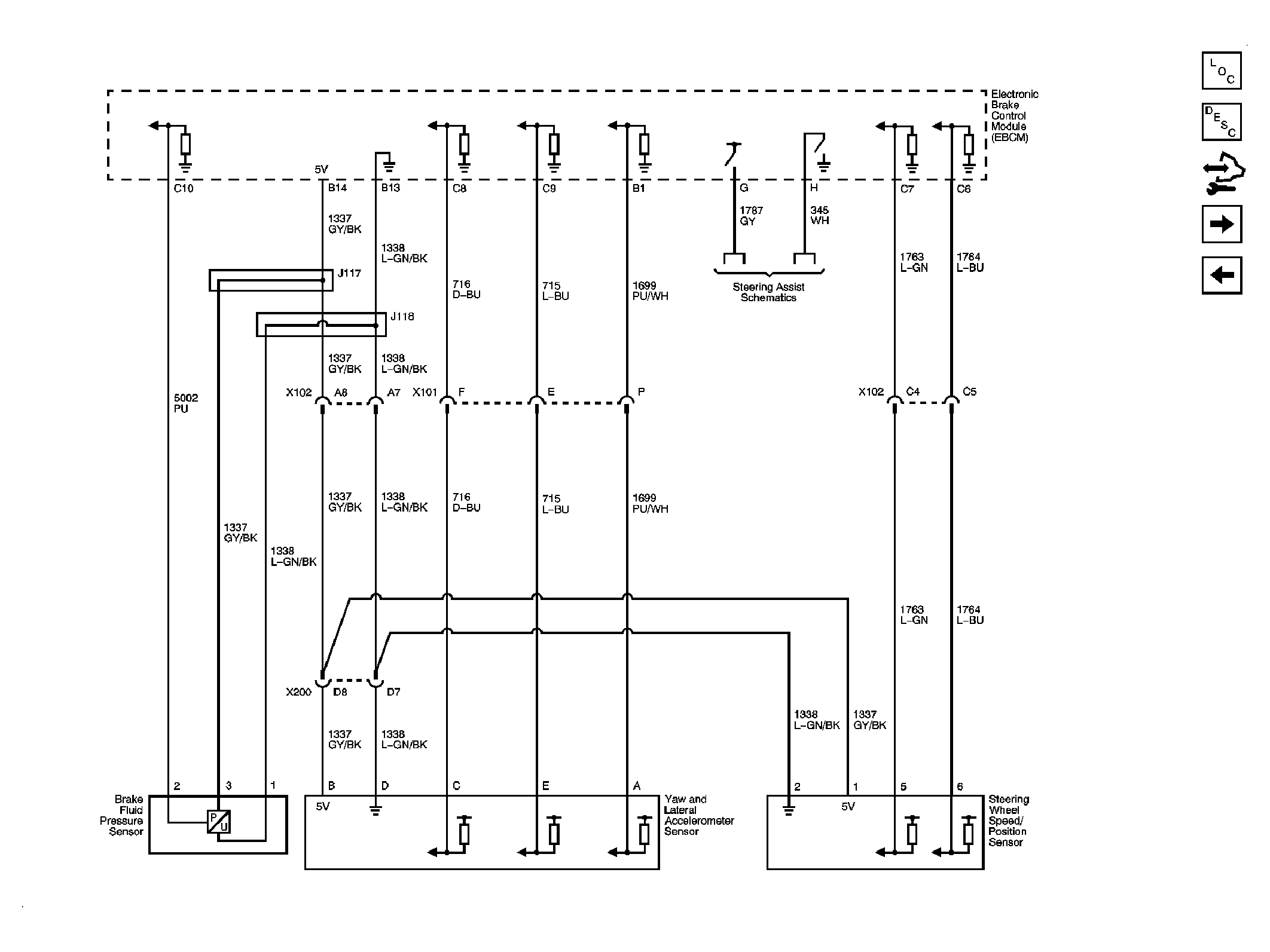

Fig 3: Stability Control System

Courtesy of GENERAL MOTORS CORP.

Fig 4: Indicator and Traction Control

Courtesy of GENERAL MOTORS CORP.
