Inside Rearview Mirror Schematics

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

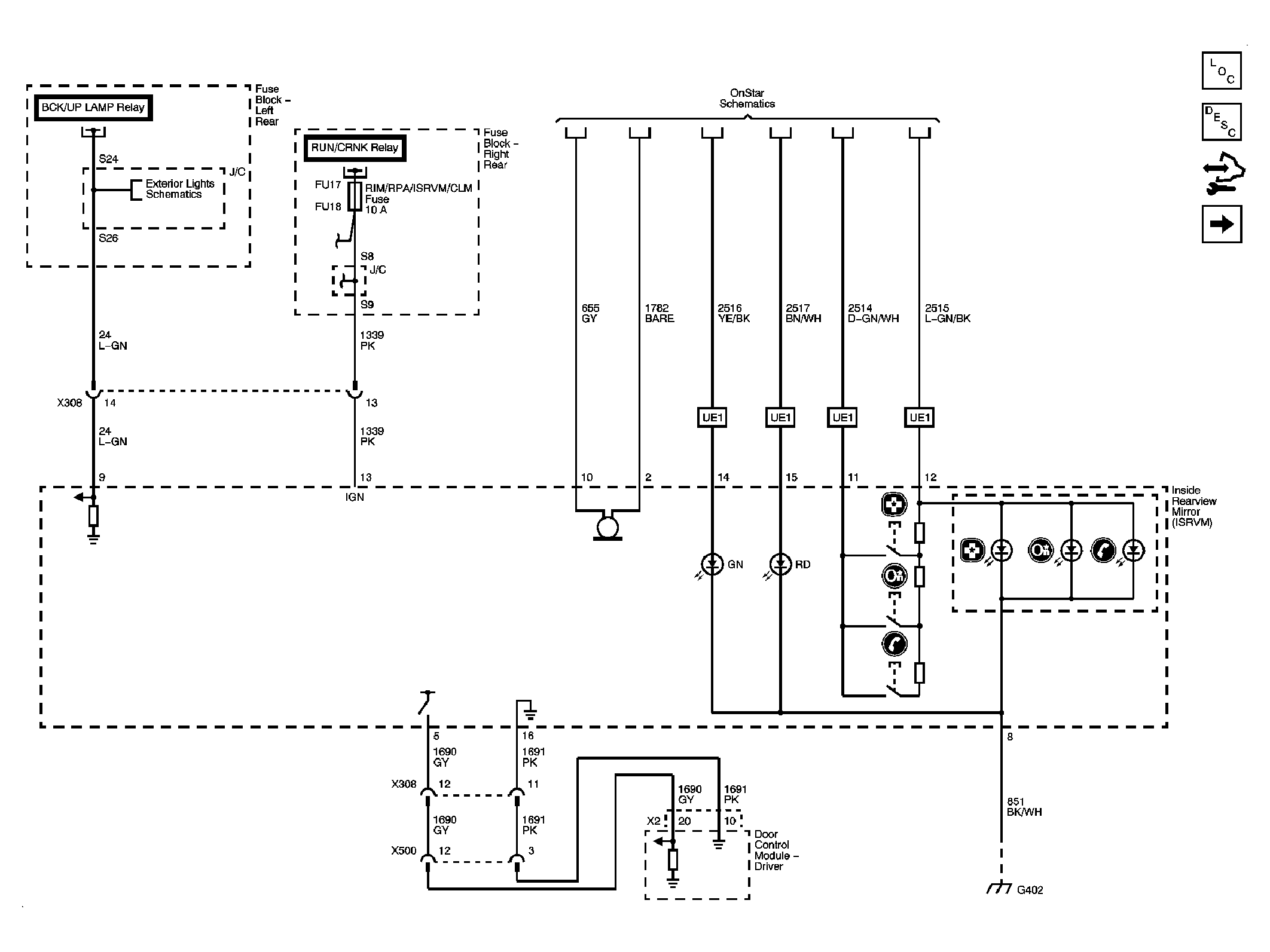

Fig 1: Power and Ground
GM2062629Courtesy of GENERAL MOTORS CORP.
Fig 2: Automatic Headlamp Dimming Signals
GM2062635Courtesy of GENERAL MOTORS CORP.
