Instrument Cluster Schematics

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power, Ground, DLC, Odometer and Clock

Courtesy of GENERAL MOTORS CORP.

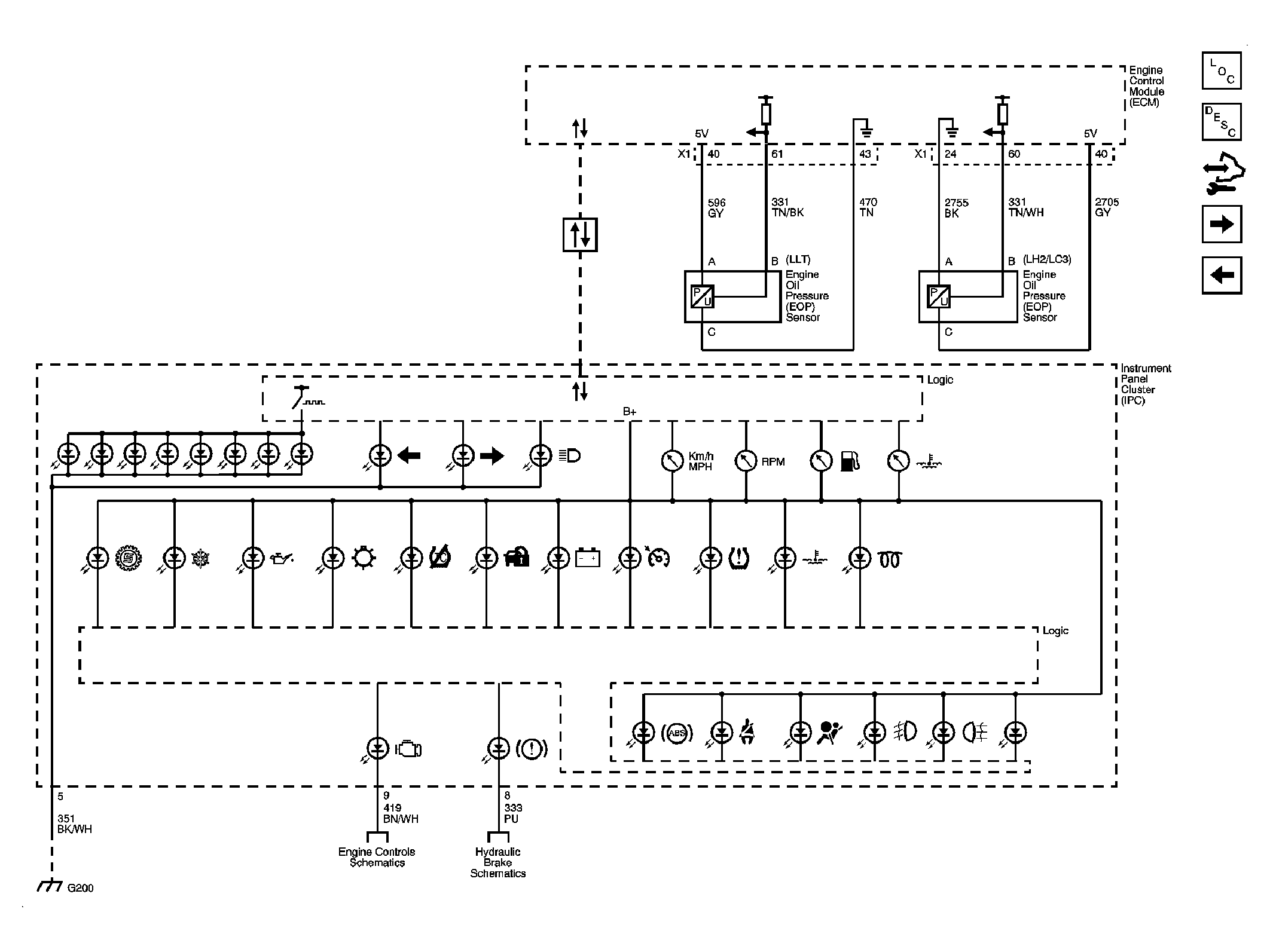

Fig 2: Indicators

Courtesy of GENERAL MOTORS CORP.

Fig 3: DIC/Dimmer Switch

Courtesy of GENERAL MOTORS CORP.

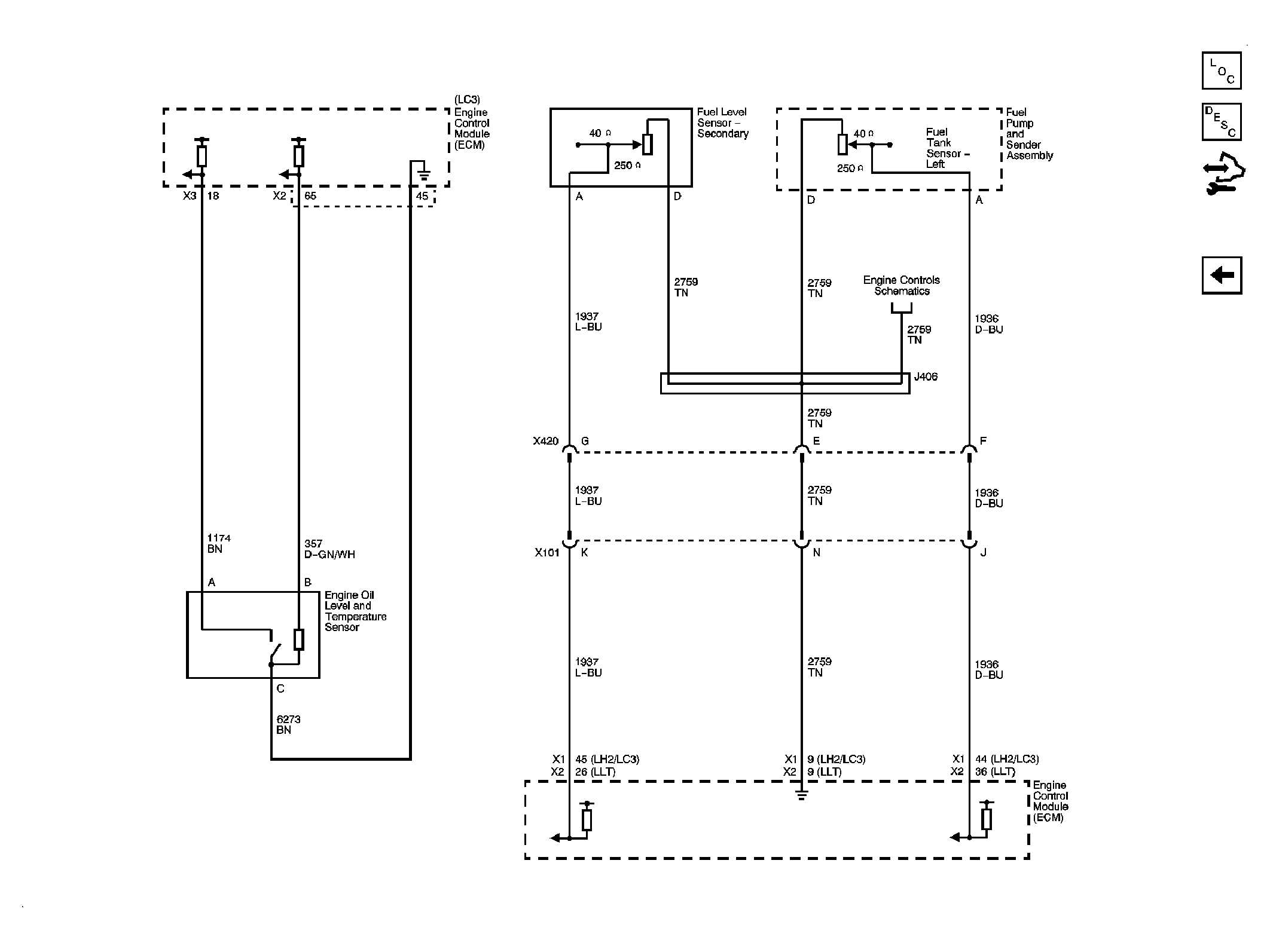

Fig 4: Engine Oil and Fuel Tank Level

Courtesy of GENERAL MOTORS CORP.
