Column Lock Schematics

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

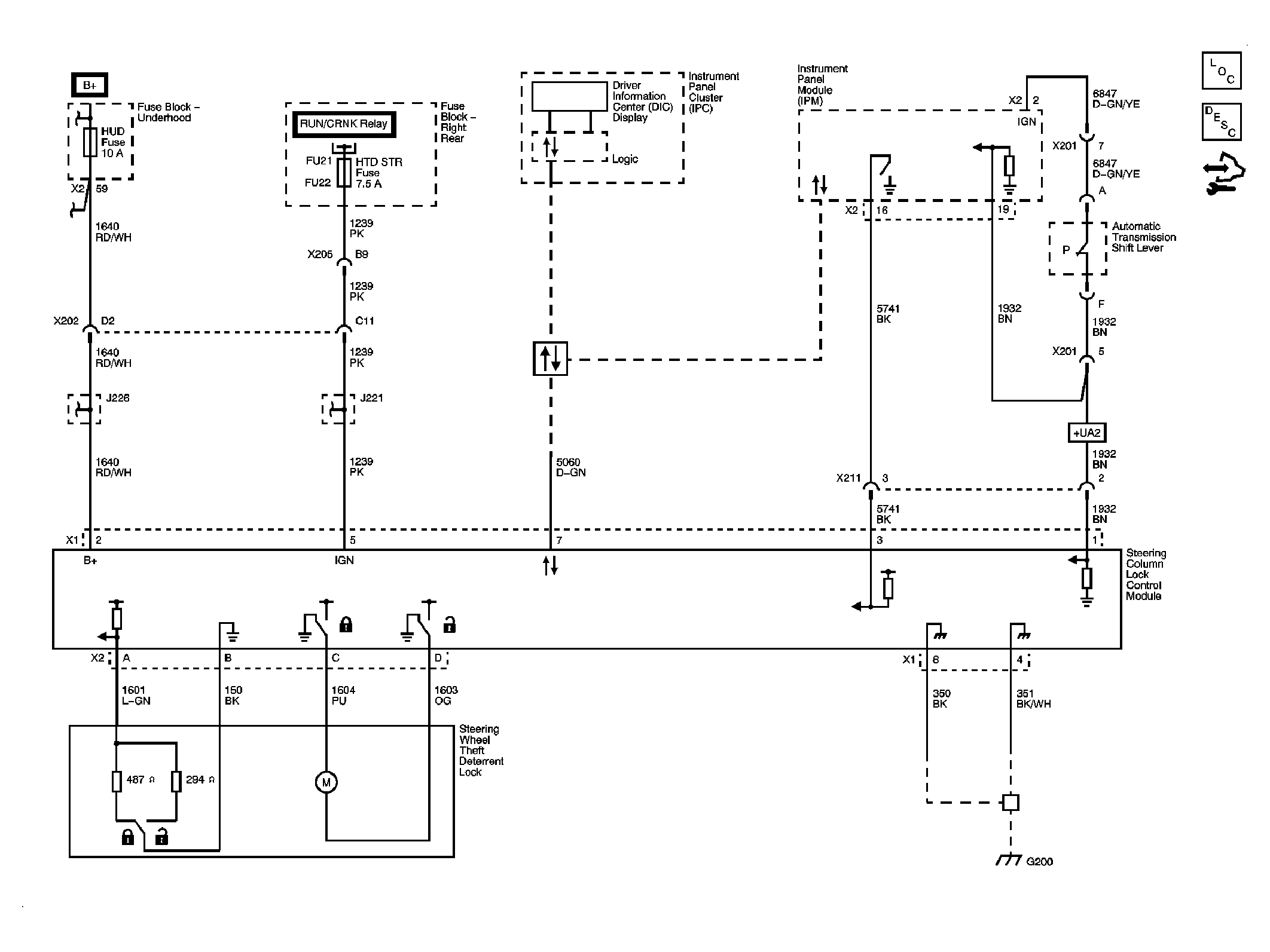

Fig 1: Column Lock Schematic
GM2063938Courtesy of GENERAL MOTORS CORP.
