Power and Grounding Component Views

Fig 1: Battery and Fuse Blocks

GM1367736

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Battery Positive Cable Connection to Fuse Block - Underhood
3	Ground G105 (LHD)
4	Battery Positive Cable (LHD)
5	Battery (LHD)
6	Battery Negative Cable (LHD)
7	C103 (LHD)
8	Fuse Block - Right Rear
9	Fuse Block - Left Rear
10	Battery (RHD)
11	Battery Negative Cable (RHD)
12	Ground G105 (RHD)
13	C103 (RHD)
14	Battery Positive Cable (RHD)

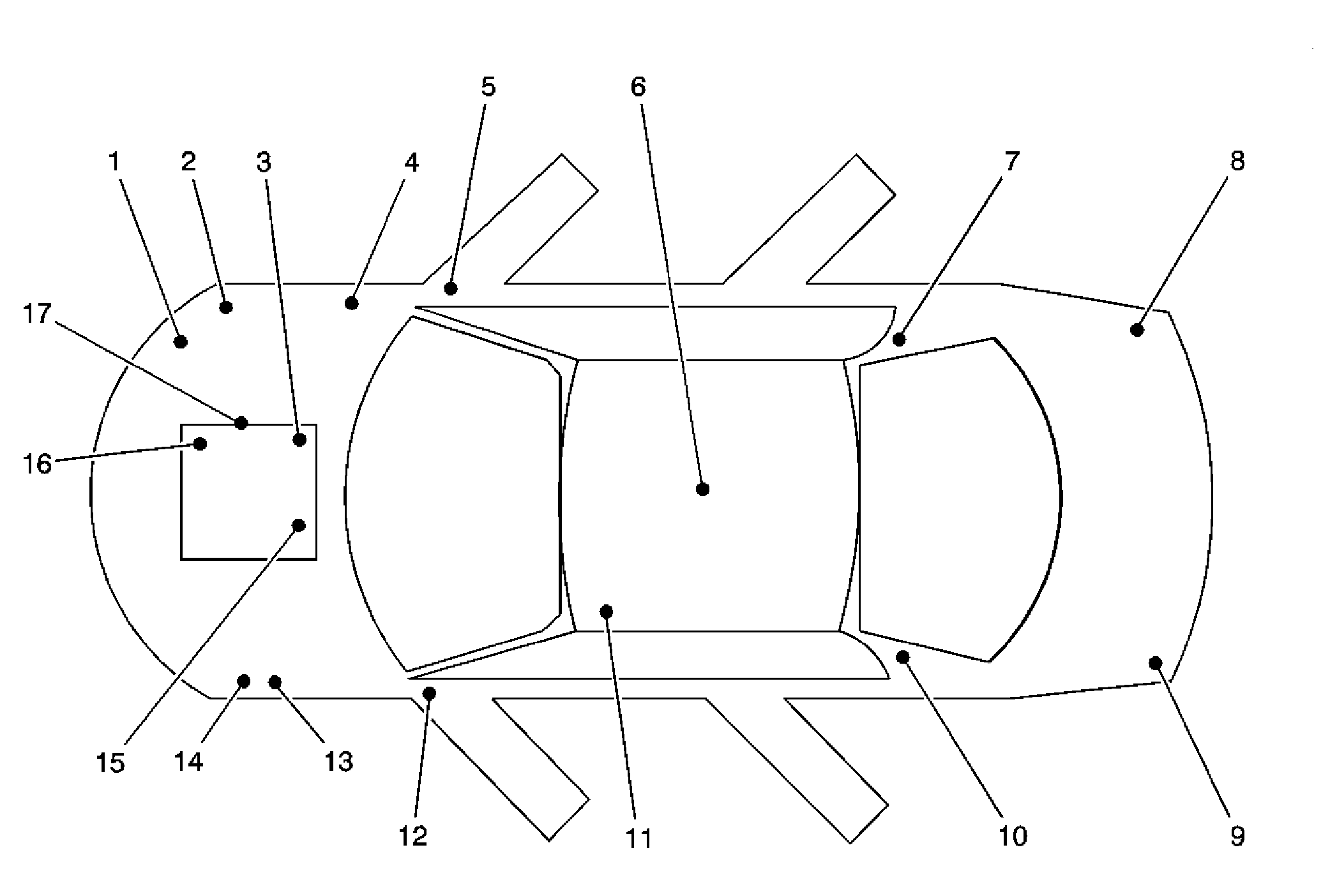

Fig 2: Ground Locations

GM1535886

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	G110
3	G130 (LP1/LY7), G142 (LS2)
4	G105 (LHD)
5	G201
6	G306
7	G303
8	G401
9	G402
10	G304
11	G307
12	G200
13	G101
14	G105 (RHD)
15	G131 (LP1/LY7), G141 (LS2), G140 (LS2)
16	G132 (LP1/LY7)
17	G133 (LP1/LY7)

Fig 3: Battery Negative Cable Component View

GM1368965

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ground G102
2	Battery Negative Cable Connection to Battery
3	Ground G105
4	C103

Fig 4: Engine Grounds (LY7) Component View

GM1368969

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ground G130
2	Ground G131
3	Engine Control Module (ECM)
4	Ground G132
5	ECM Case Ground
6	ECM Case Ground
7	Engine Control Module (ECM)
8	Ground G133

Fig 5: Battery Negative Cable - 5.7L (LS6)

GM1368972

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Negative Cable Connection to Battery
2	C103
3	Ground G105
4	Ground G102

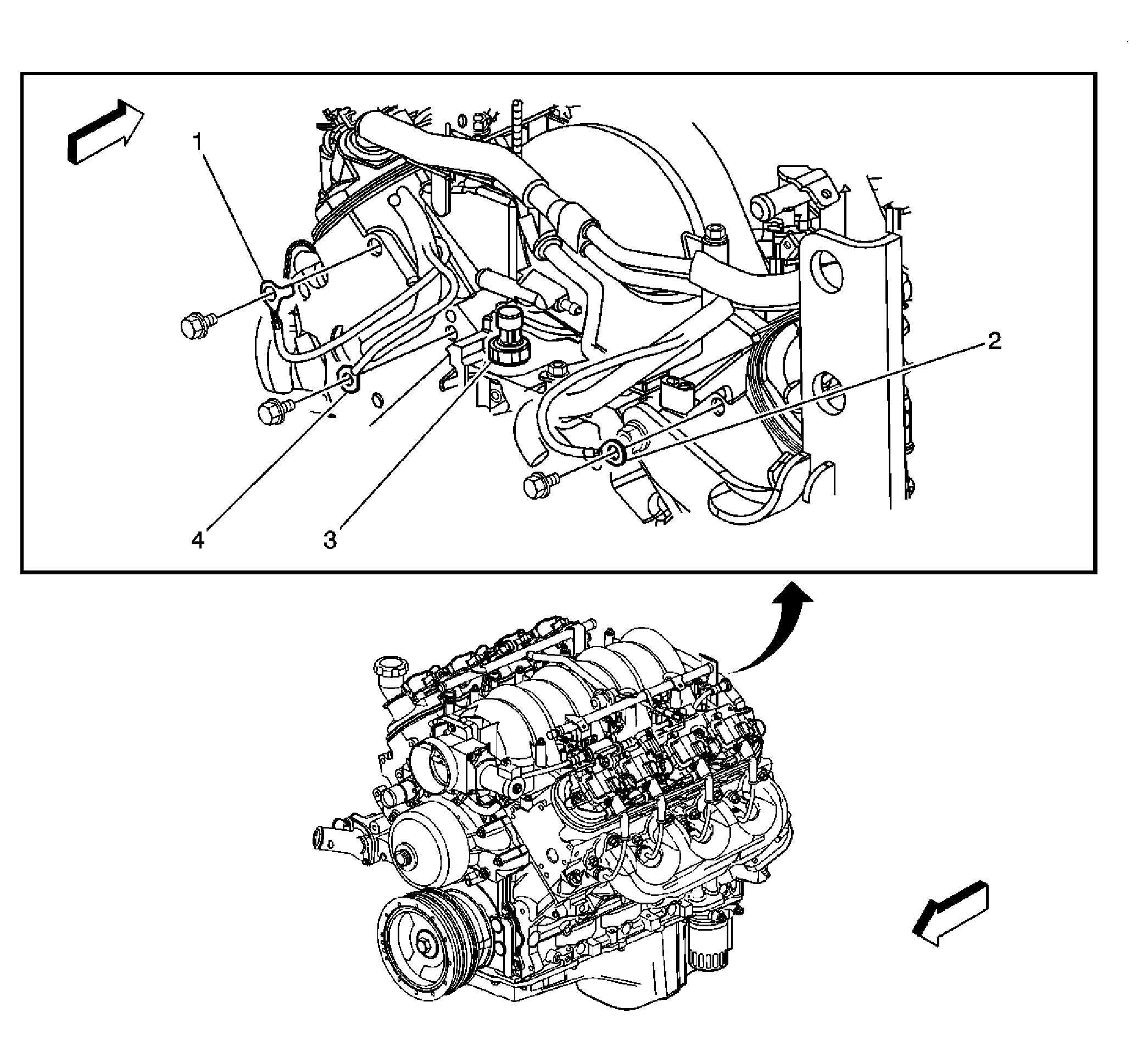

Fig 6: Engine Grounds - 6.0L (LS2)

GM1751526

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ground G141
2	Ground G142
3	Engine Oil Pressure (EOP) Sensor
4	Ground G140

Fig 7: Lower Left of the Engine Compartment

GM804233

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	C105 (V8)
3	C104 (V6) or C107 (V8)
4	Wiring Harness Pass-through Grommet

Fig 8: Passenger Compartment - Left Sail Panel

GM804273

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G303
2	C308
3	Inflatable Restraint Roof Rail Module - Driver Connector
4	C305
5	Rear Defogger Connector C1

Fig 9: Passenger Compartment Grounds 1 of 2

GM1368983

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness Ground G201
2	Body Harness Ground G303
3	Body Harness Ground G304
4	Body Harness Ground G200

Fig 10: Passenger Compartment Grounds 2 of 2

GM1368984

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness Gound G307
2	Body Harness Gound G306

Fig 11: Rear Compartment Grounds

GM1368985

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness Ground G402
2	Body Harness Ground G401

Fig 12: Rear of the Vehicle

GM803970

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C421
2	Rear Compartment Lid
3	Rear Compartment Lid Release Actuator Connector
4	Rear Compartment Lid Release Actuator
5	S400
6	Pass-through Grommet
7	G401
8	G402
9	Pass-through Grommet

Fig 13: Passenger Compartment - Right Sail Panel

GM1367799

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Passenger Connector
2	Radio Antenna Coax Connector
3	C311
4	Cellular Antenna Coax Connector
5	Cellular Antenna
6	G303
7	Rear Window Defogger Connector C2
8	Rear Window Defogger Grid
9	Splice S309

Fig 14: Battery and Fuse Blocks

GM1367736

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Battery Positive Cable Connection to Fuse Block - Underhood
3	Ground G105 (LHD)
4	Battery Positive Cable (LHD)
5	Battery (LHD)
6	Battery Negative Cable (LHD)
7	C103 (LHD)
8	Fuse Block - Right Rear
9	Fuse Block - Left Rear
10	Battery (RHD)
11	Battery Negative Cable (RHD)
12	Ground G105 (RHD)
13	C103 (RHD)
14	Battery Positive Cable (RHD)

Fig 15: Ignition Key Alarm Switch

GM1347701

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Key Alarm Switch
2	Ignition Switch
3	Ignition Lock Cylinder Case
