Power Distribution Schematics

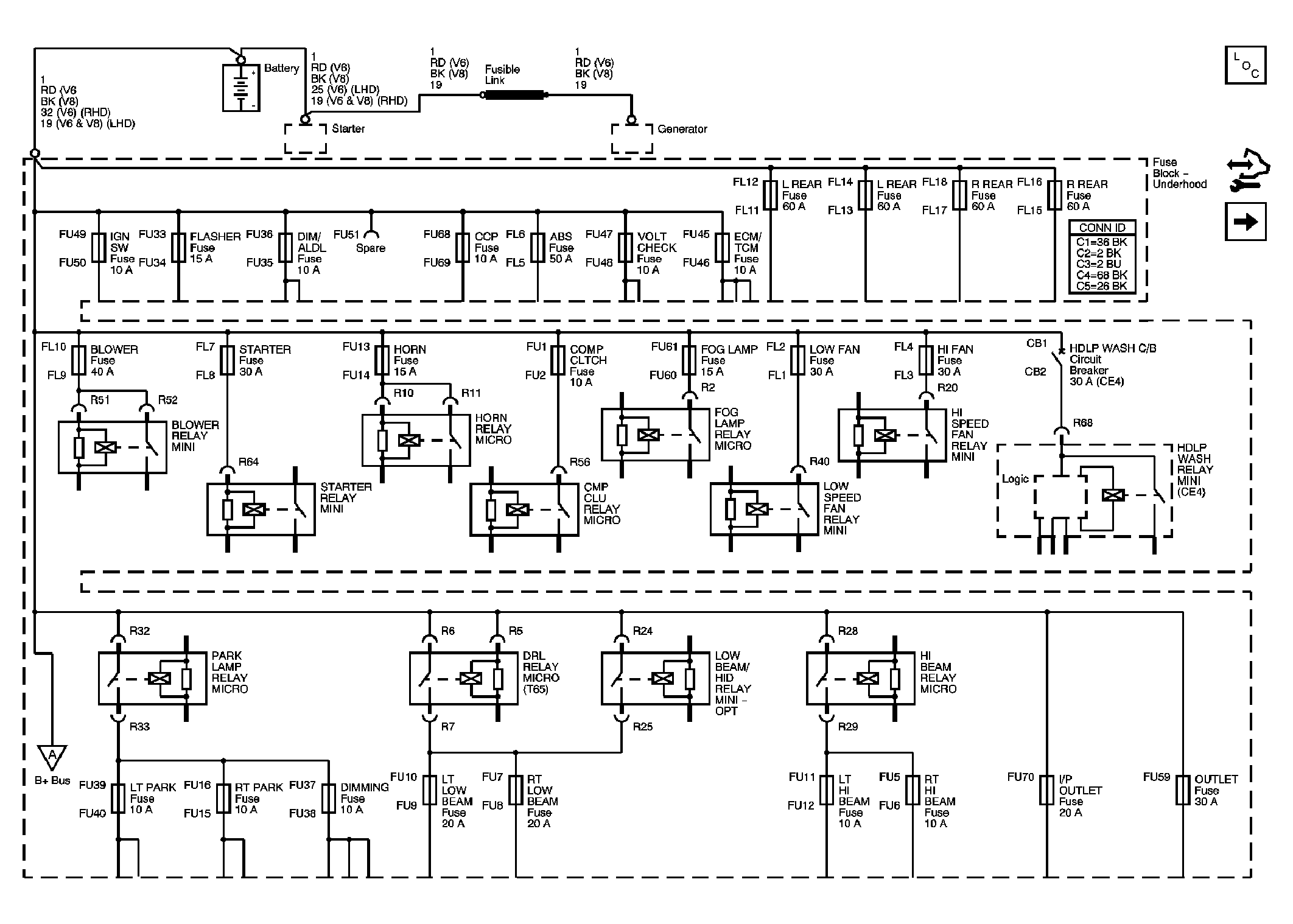

Fig 1: Underhood Fuse Block B+ Bus Schematic 1 of 2
GM1788488Courtesy of GENERAL MOTORS CORP.

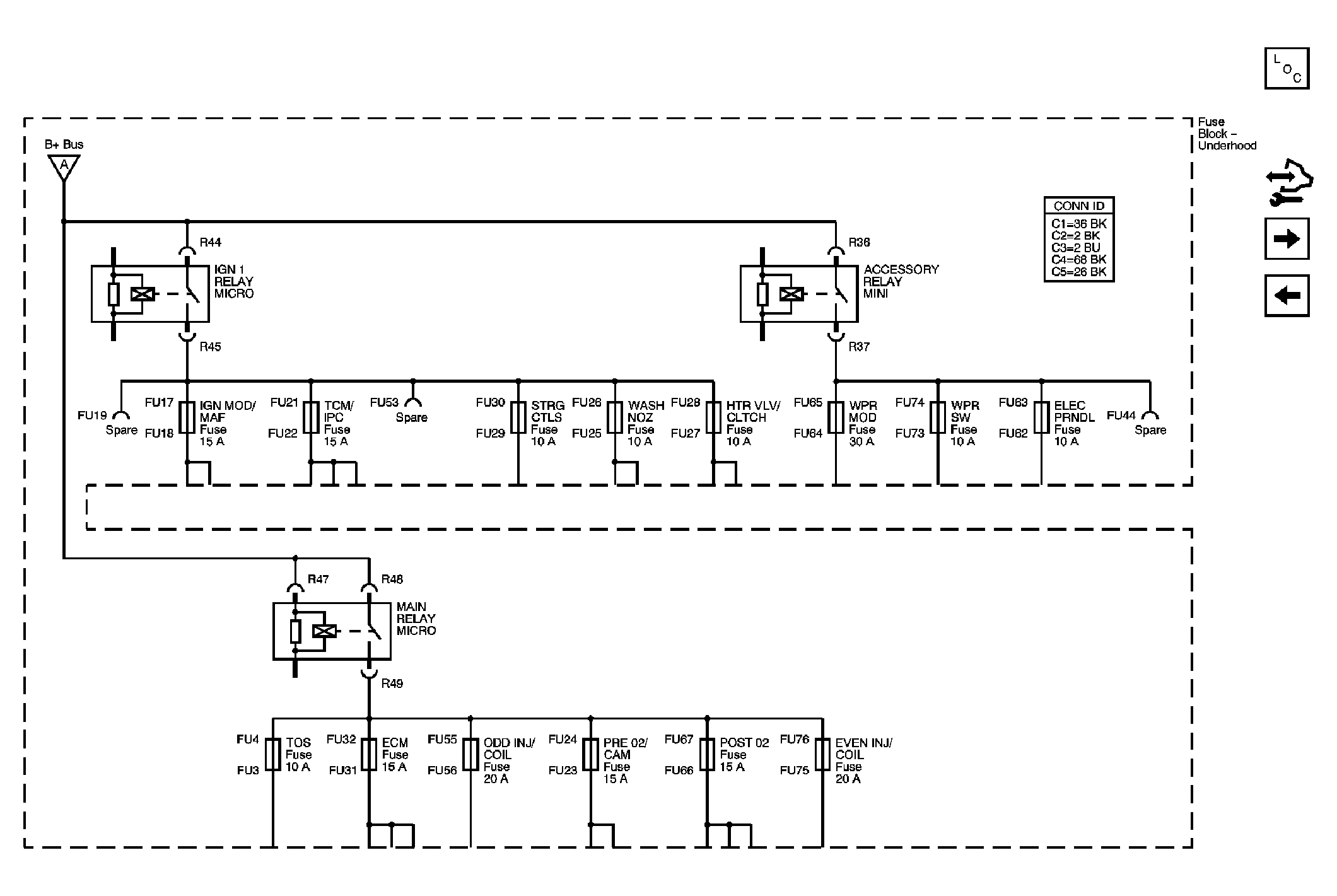

Fig 2: Underhood Fuse Block B+ BUS Schematic 2 of 2
GM1788493Courtesy of GENERAL MOTORS CORP.

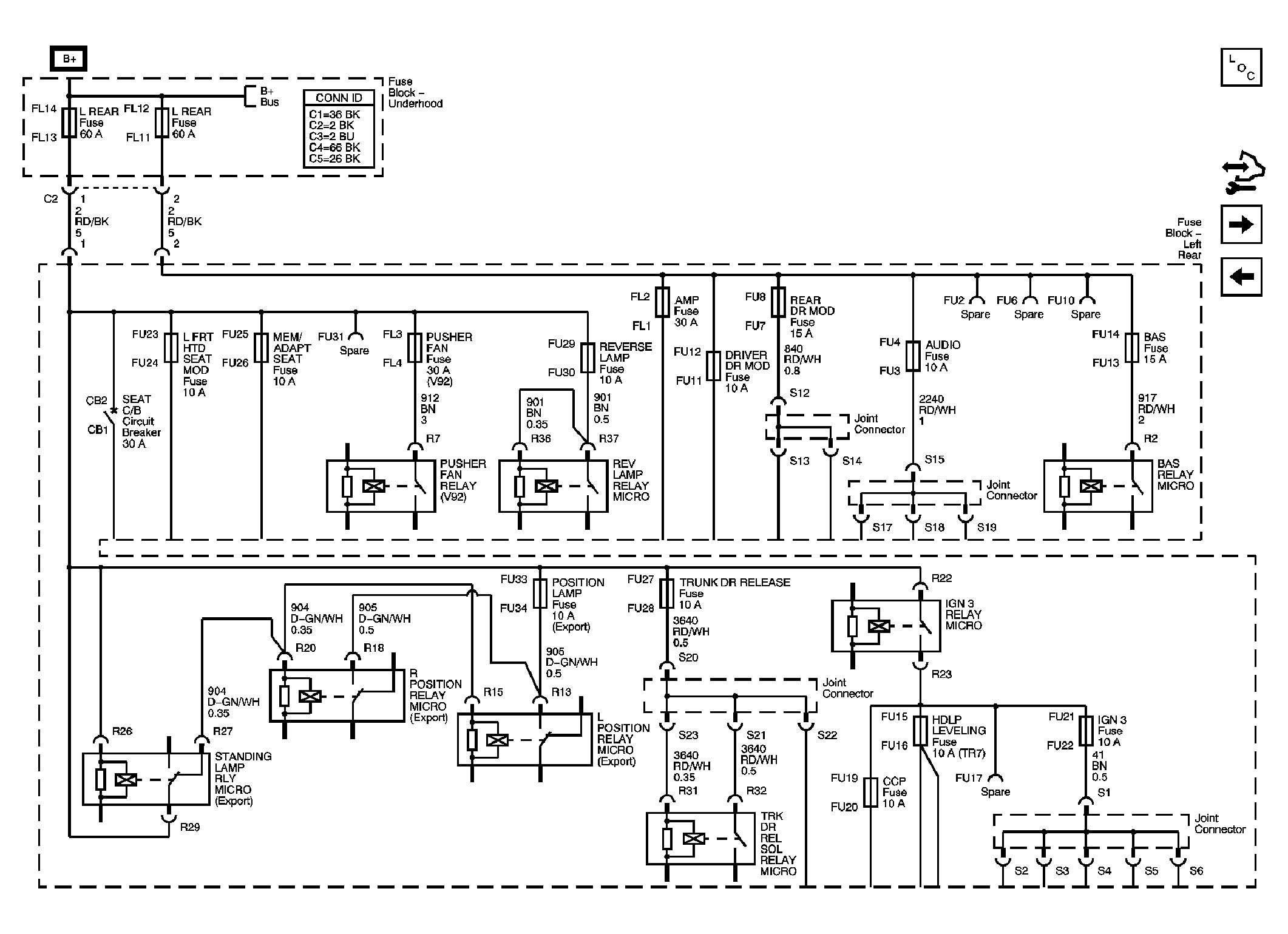

Fig 3: Left Rear Fuse Block B+ Bus Schematic
GM1788511Courtesy of GENERAL MOTORS CORP.

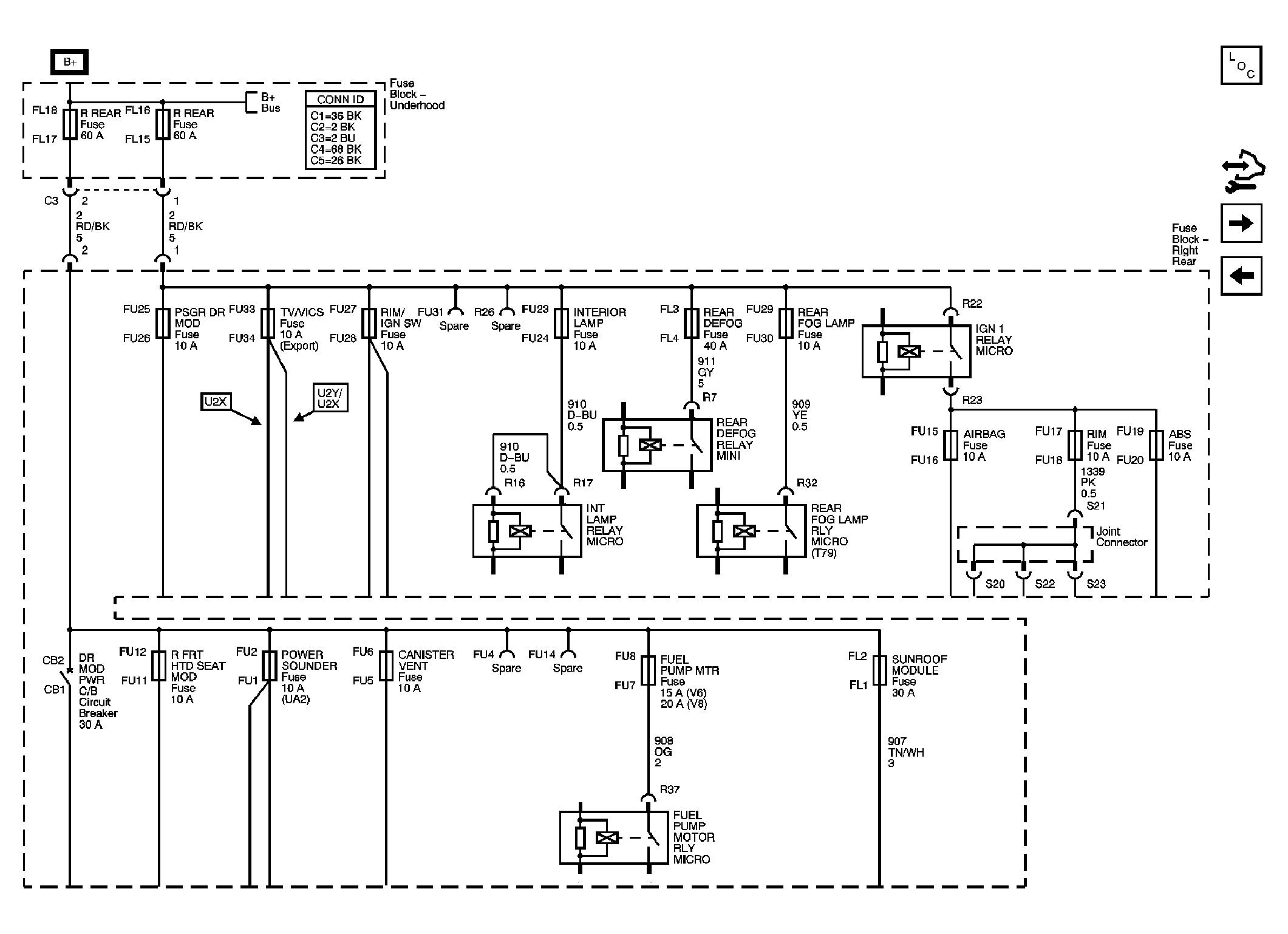

Fig 4: Right Rear Fuse Block B+ Bus Schematic
GM1788712Courtesy of GENERAL MOTORS CORP.

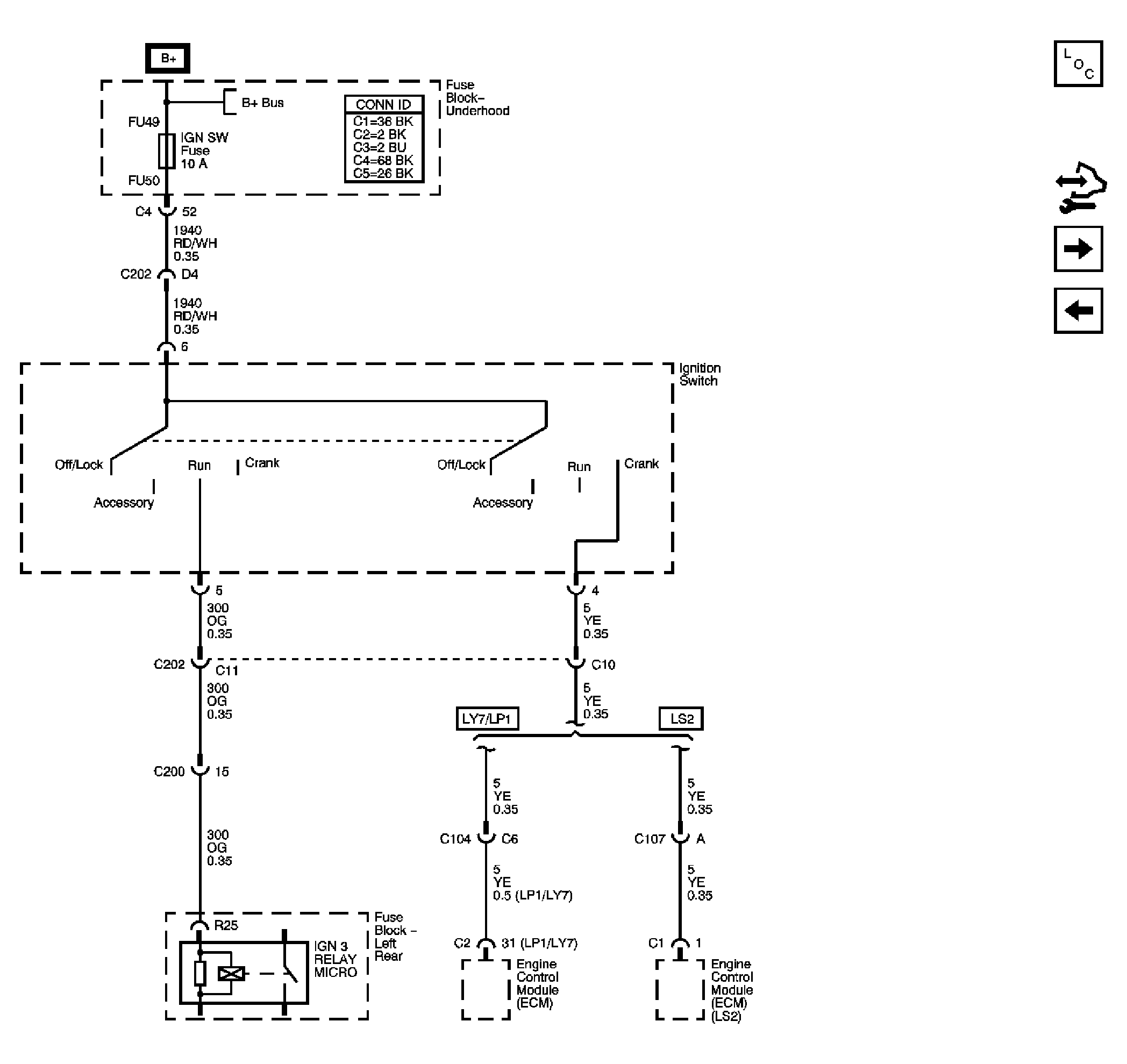

Fig 5: Ignition Switch Schematic 1 of 2
GM1788717Courtesy of GENERAL MOTORS CORP.

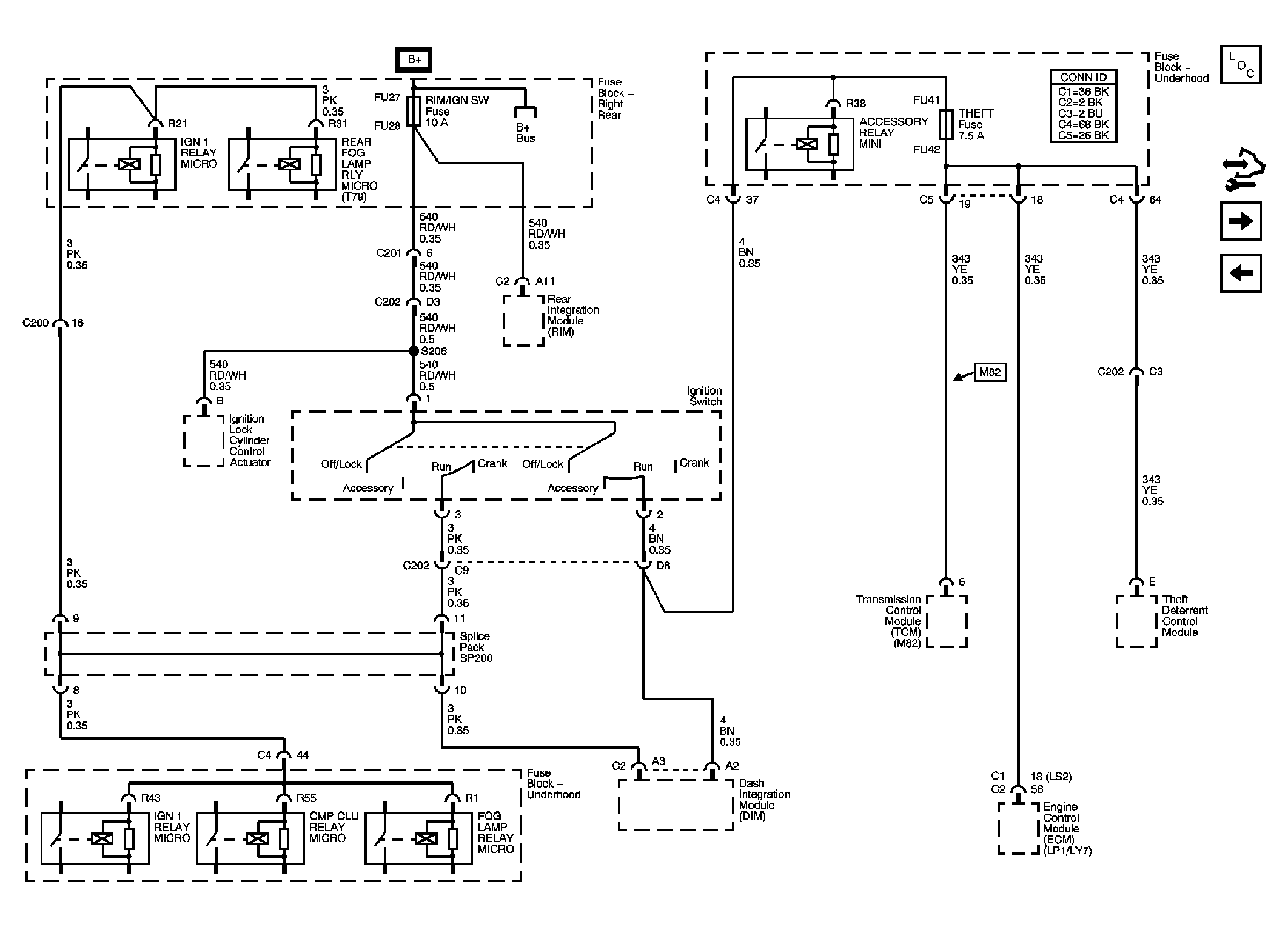

Fig 6: Ignition Switch Schematic 2 of 2
GM1788721Courtesy of GENERAL MOTORS CORP.

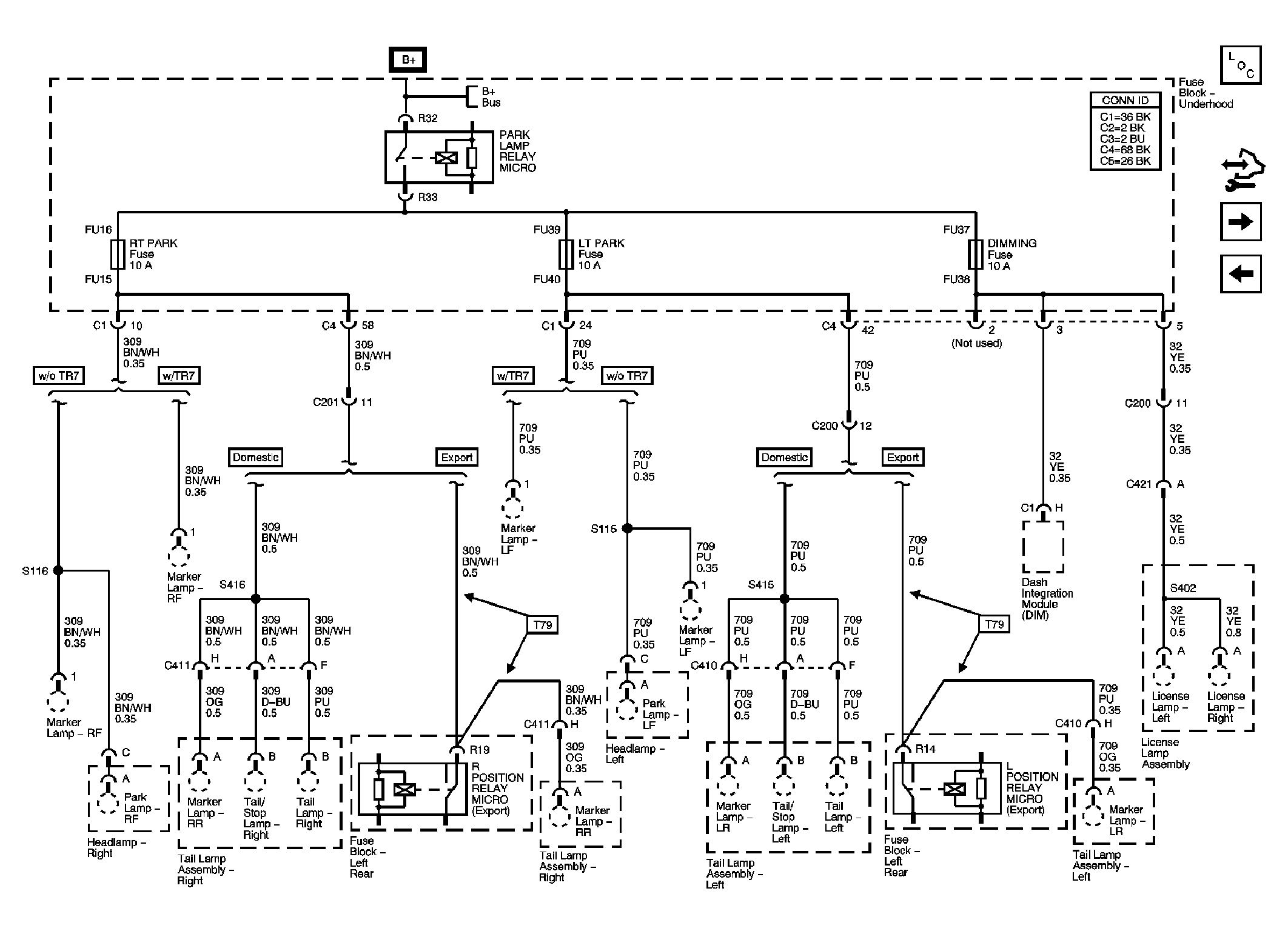

Fig 7: Underhood Fuse Block Schematic - PARK LAMP Relay/Fuses and DIMMING Fuse
GM1788732Courtesy of GENERAL MOTORS CORP.

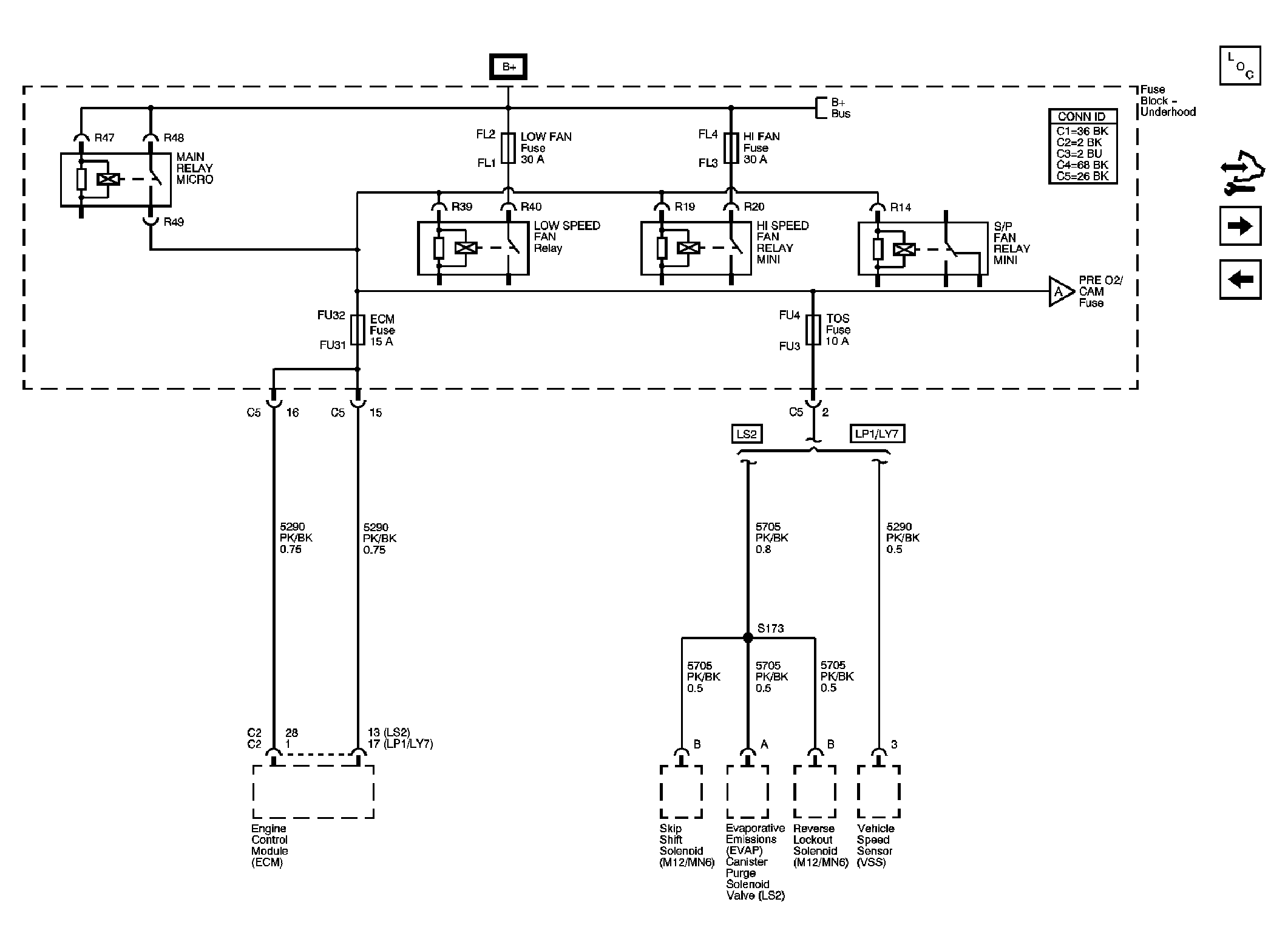

Fig 8: Underhood Fuse Block Schematic - COOLING FAN Fuses/Relays, MAIN Relay, ECM, and TOS
GM1788740Courtesy of GENERAL MOTORS CORP.

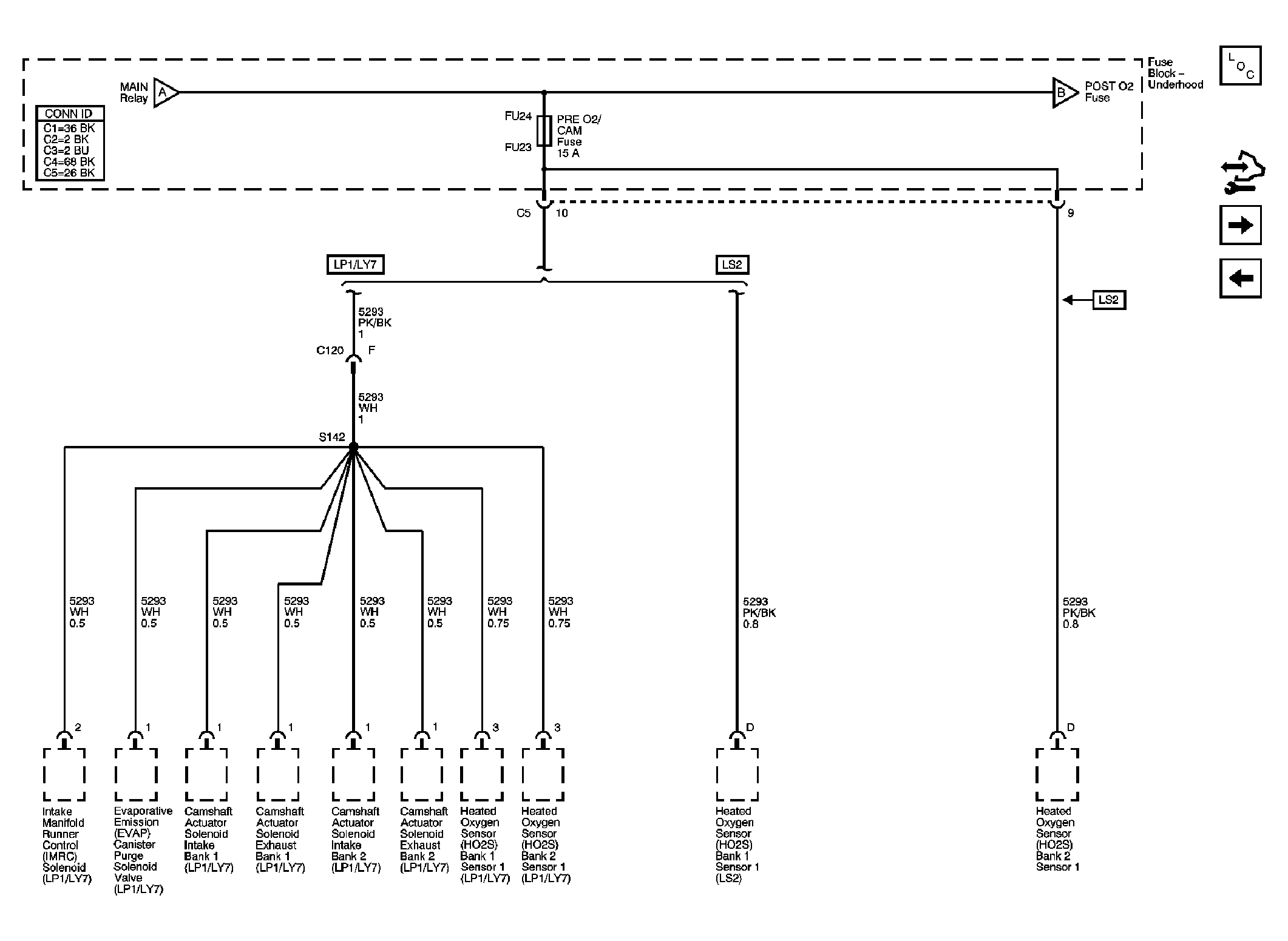

Fig 9: Underhood Fuse Block Schematic - PRE 02/CAM Fuse
GM1788745Courtesy of GENERAL MOTORS CORP.

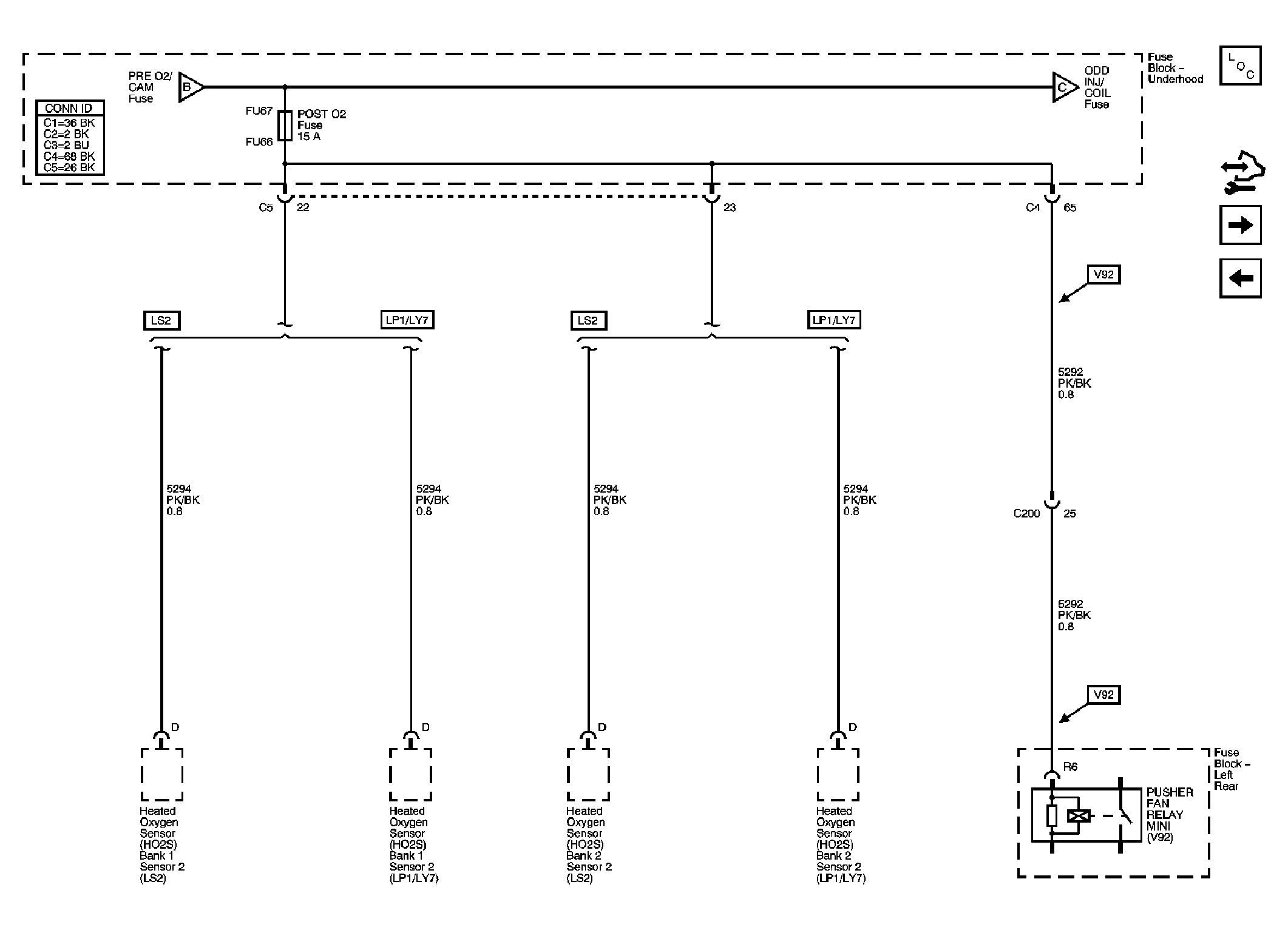

Fig 10: Underhood Fuse Block Schematic - POST 02 Fuse
GM1788751Courtesy of GENERAL MOTORS CORP.

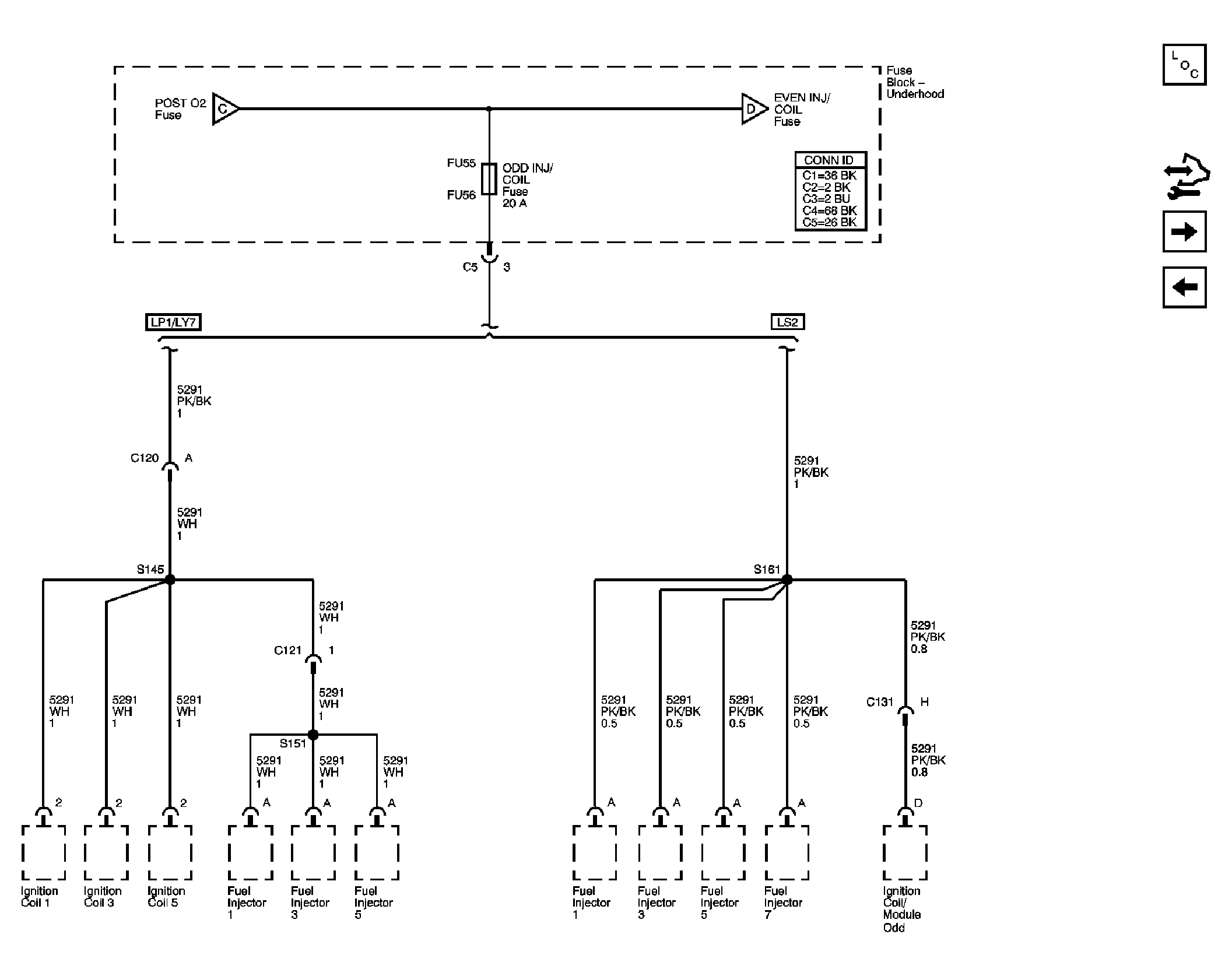

Fig 11: Underhood Fuse Block Schematic - ODD INJ/COIL Fuse
GM1788761Courtesy of GENERAL MOTORS CORP.

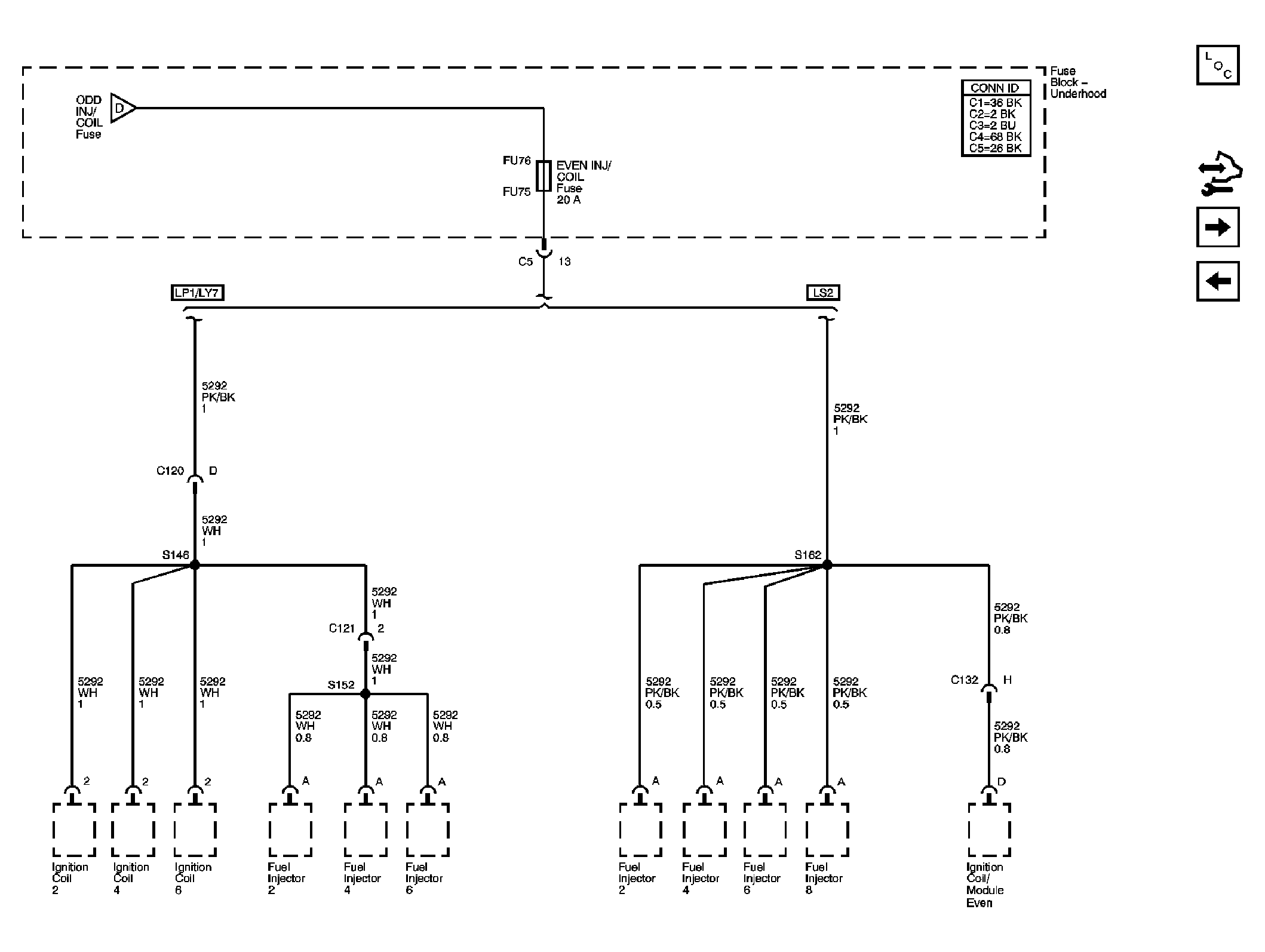

Fig 12: Underhood Fuse Block Schematic - EVEN INJ/COIL Fuse
GM1788764Courtesy of GENERAL MOTORS CORP.

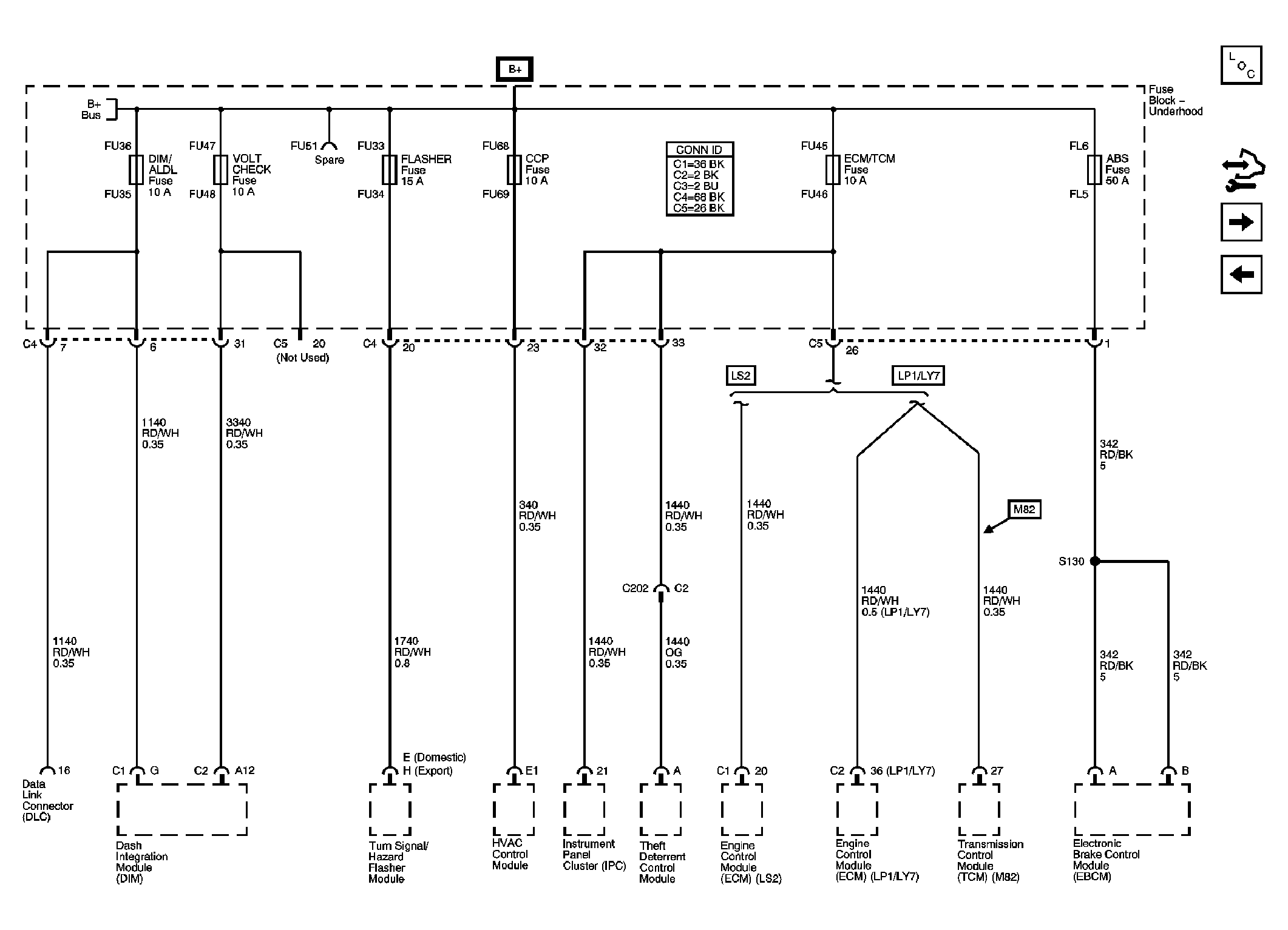

Fig 13: Underhood Fuse Block Schematic - DIM/ALDL, VOLT CHECK, FLASHER, CCP, ECM/TCM, and ABS Fuses
GM1788772Courtesy of GENERAL MOTORS CORP.

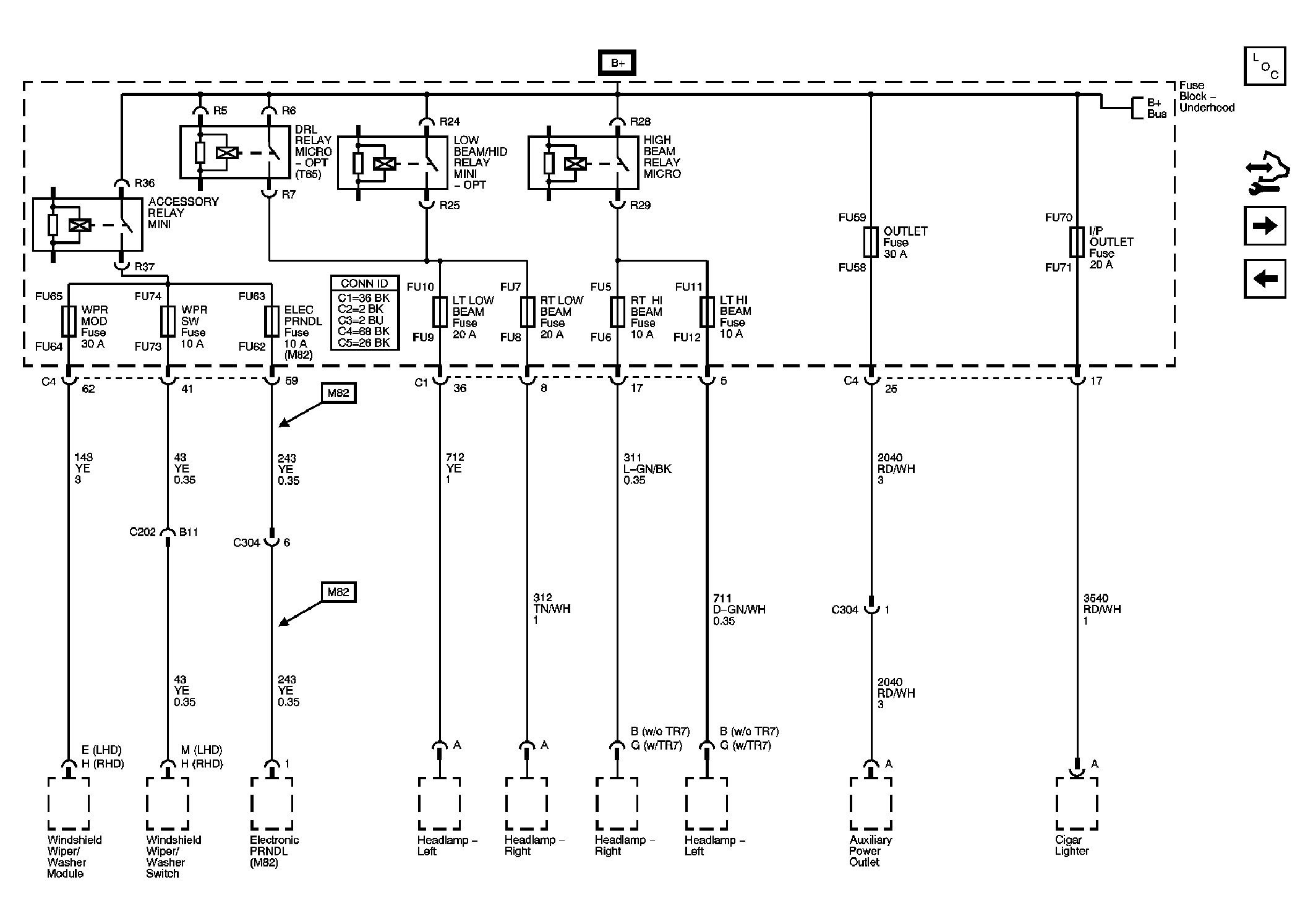

Fig 14: Underhood Fuse Block Schematic - Headlamp Relays/Fuses, ACCESSORY Relay, I/P OUTLET, OUTLET, WPR MOD, WPR SW, and ELEC PRNDL Fuses
GM1788774Courtesy of GENERAL MOTORS CORP.

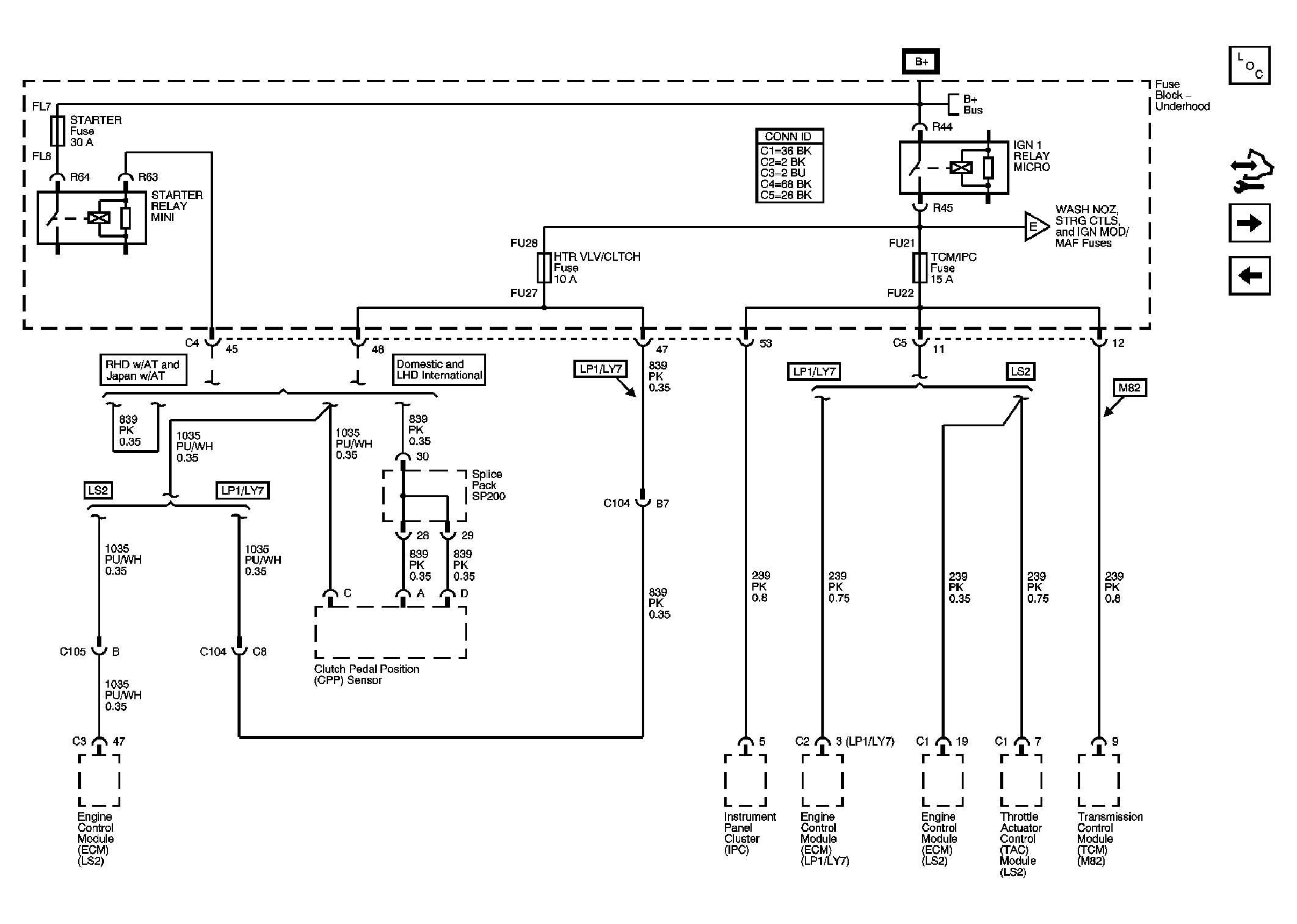

Fig 15: Underhood Fuse Block Schematic - STARTER Relay, IGN 1 Relay, HTR VLV/CLUTCH, and TCM/IPC Fuses
GM1788779Courtesy of GENERAL MOTORS CORP.

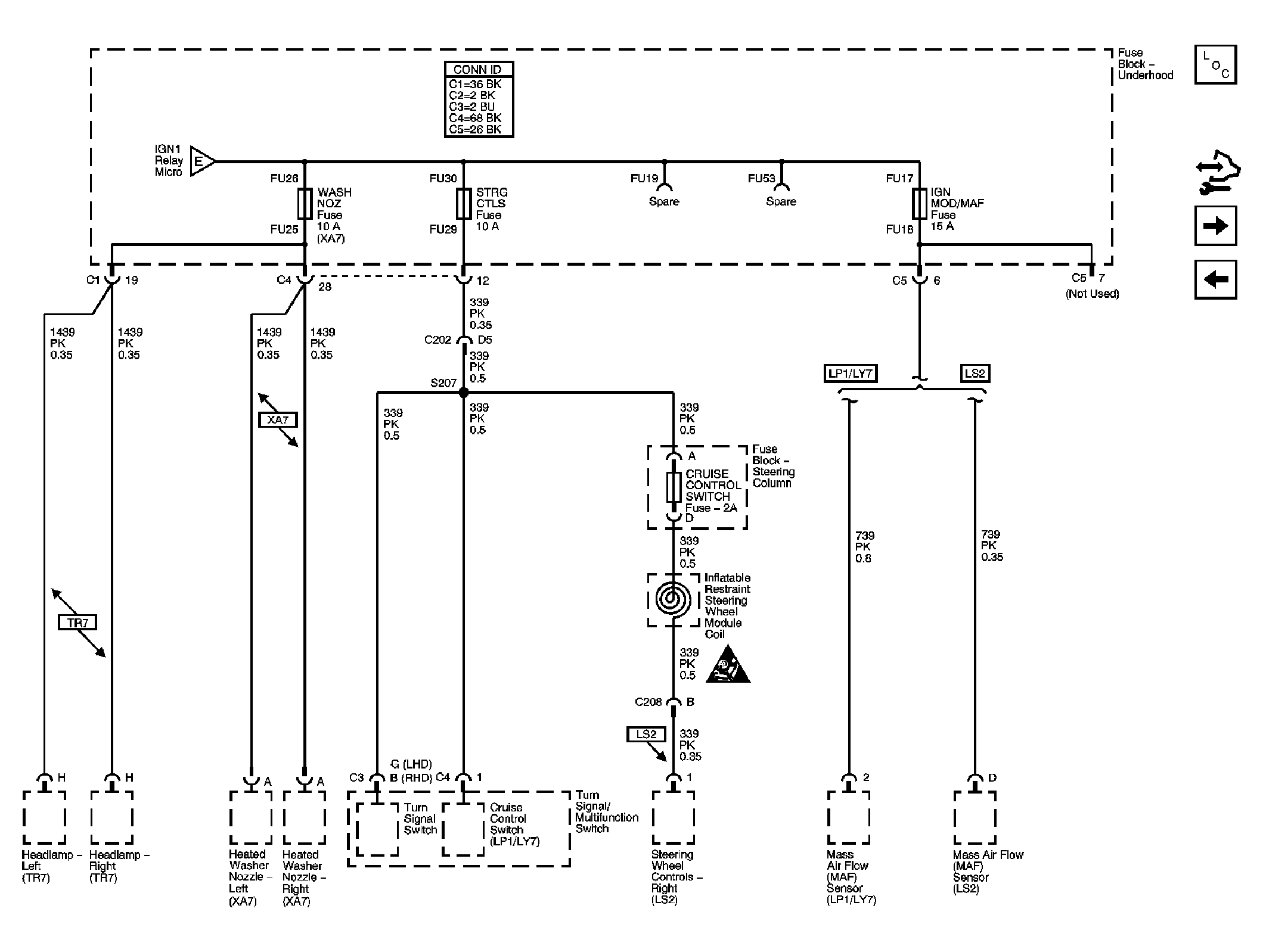

Fig 16: Underhood Fuse Block Schematic - WASH NOZ, STRG CTLS, and IGN MOD/MAF Fuses
GM1788785Courtesy of GENERAL MOTORS CORP.

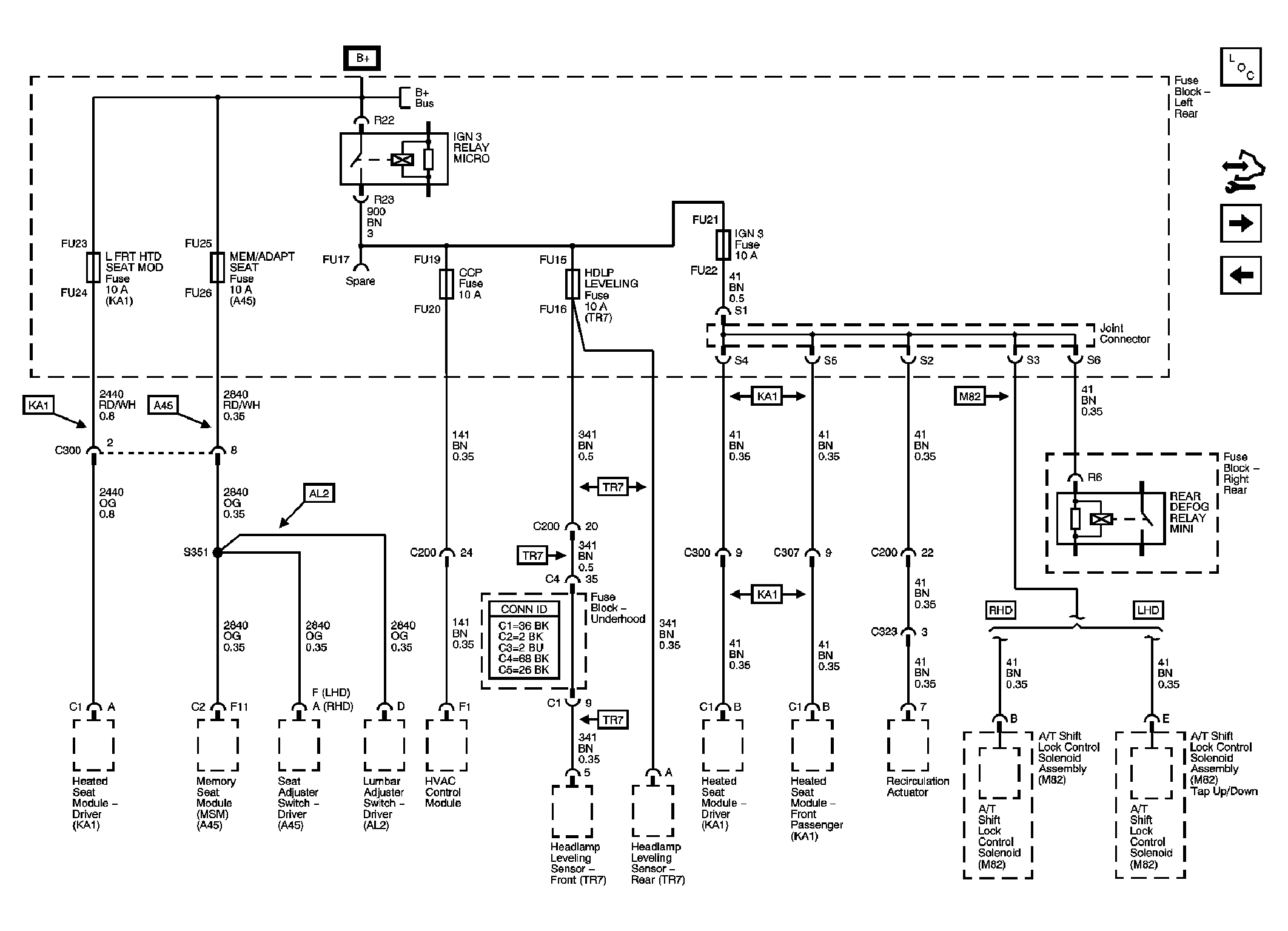

Fig 17: Left Rear Fuse Block Schematic - IGN 3 Relay, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, CCP, HDLP LEVELING, and IGN 3 Fuses
GM1788792Courtesy of GENERAL MOTORS CORP.

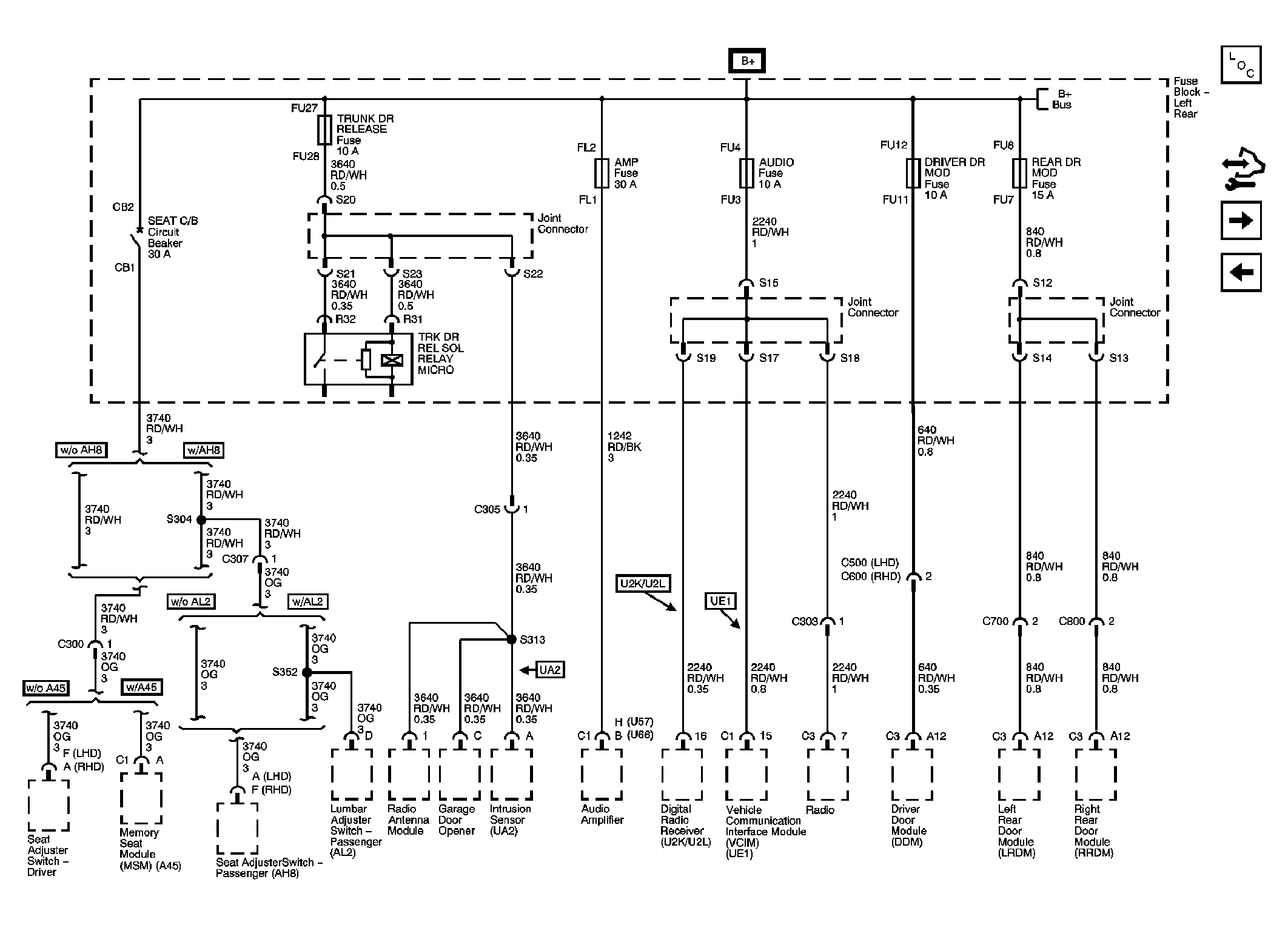

Fig 18: Left Rear Fuse Block Schematic - SEAT Circuit Breaker, TRUNK Relay/Fuse, AMP, AUDIO, DRIVER DR MOD, and REAR DR MOD Fuses
GM1788795Courtesy of GENERAL MOTORS CORP.

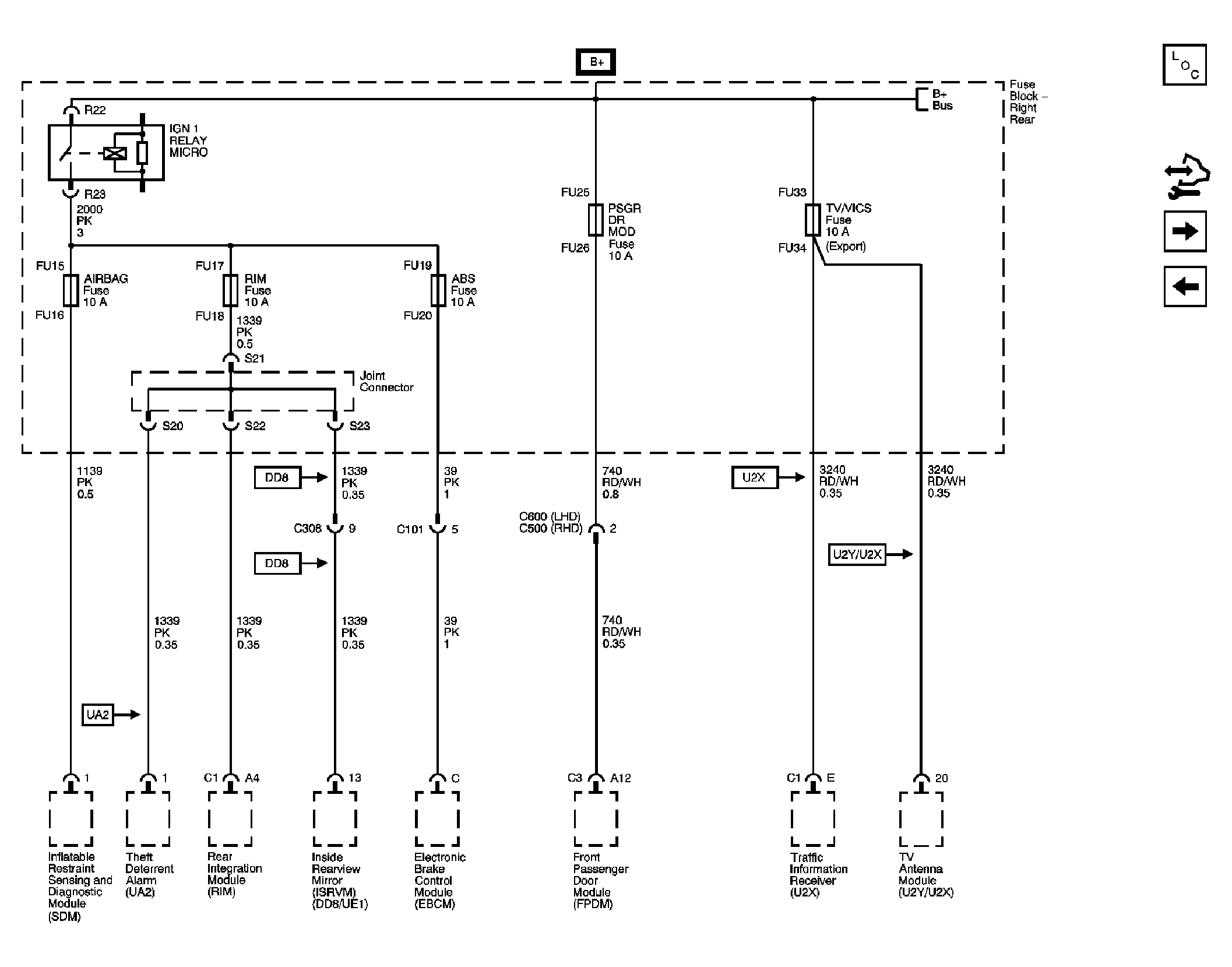

Fig 19: Right Rear Fuse Block Schematic - IGN 1 Relay, AIR BAG, RIM, ABS, PSGR DR MOD, and TV/VICS Fuses
GM1788796Courtesy of GENERAL MOTORS CORP.

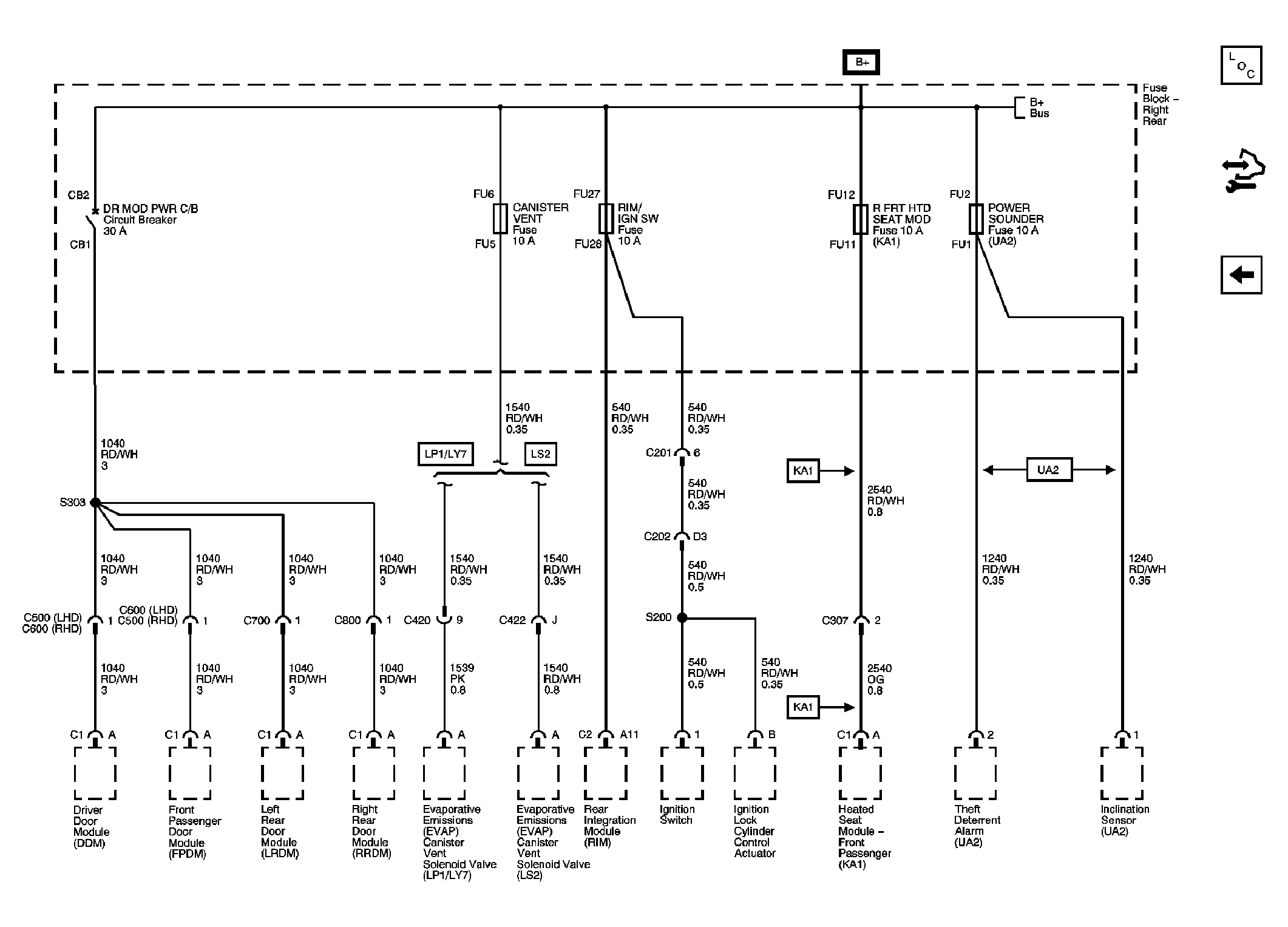

Fig 20: Right Rear Fuse Block Schematic - DR MOD PWR Circuit Breaker, CANISTER VENT, RUM/IGN SW, R FRT HTD SEAT MOD, and POWER SOUNDER Fuses
GM1788801Courtesy of GENERAL MOTORS CORP.
