Ground Distribution Schematics

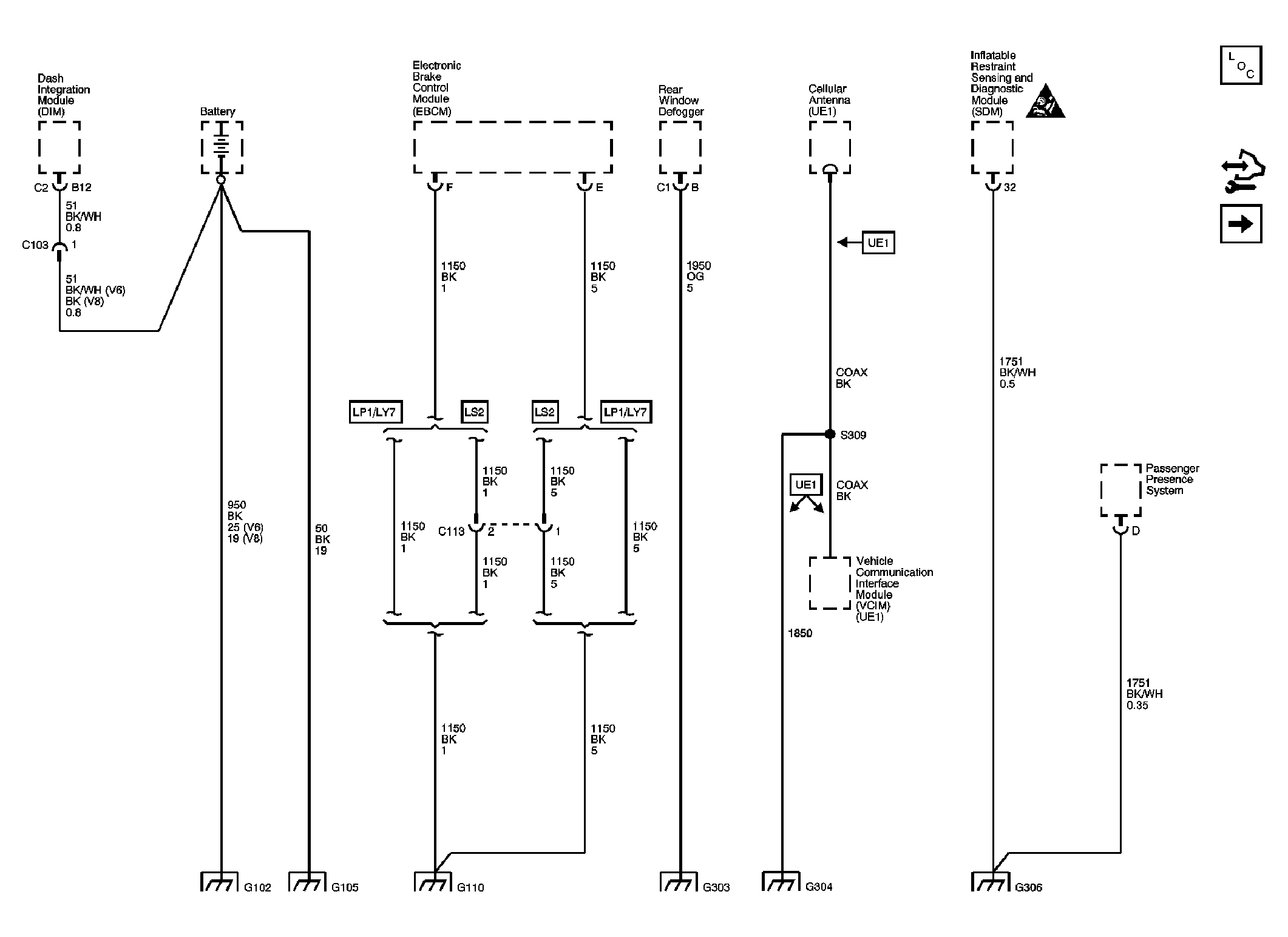

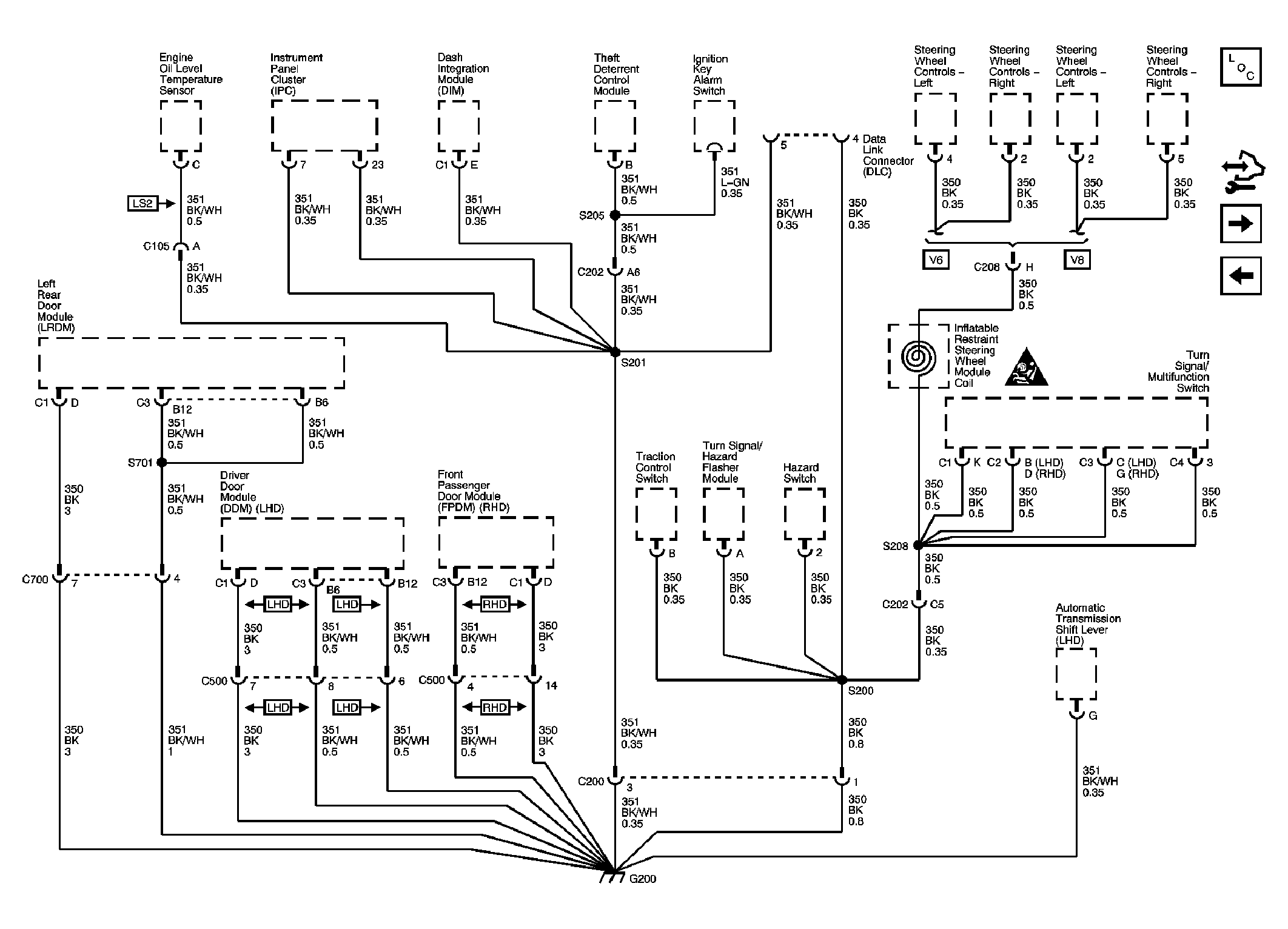

Fig 1: Ground Distribution Schematics - G102, G105, G110, G303, G304, and G306

Courtesy of GENERAL MOTORS CORP.

Fig 2: Ground Distribution Schematics - G101

Courtesy of GENERAL MOTORS CORP.

Fig 3: Ground Distribution Schematics - G104 1 of 2

Courtesy of GENERAL MOTORS CORP.

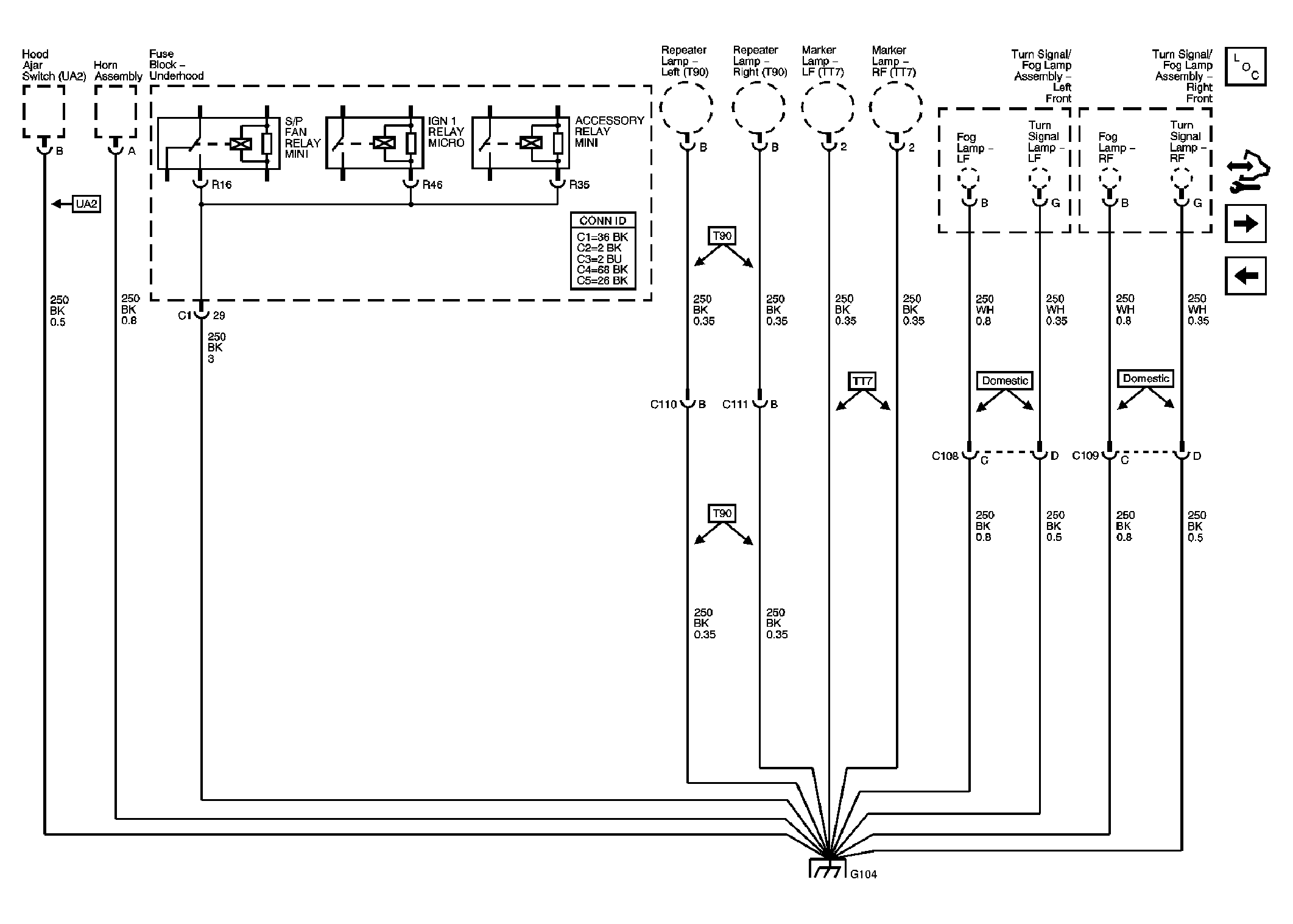

Fig 4: Ground Distribution Schematics - G104 2 of 2

Courtesy of GENERAL MOTORS CORP.

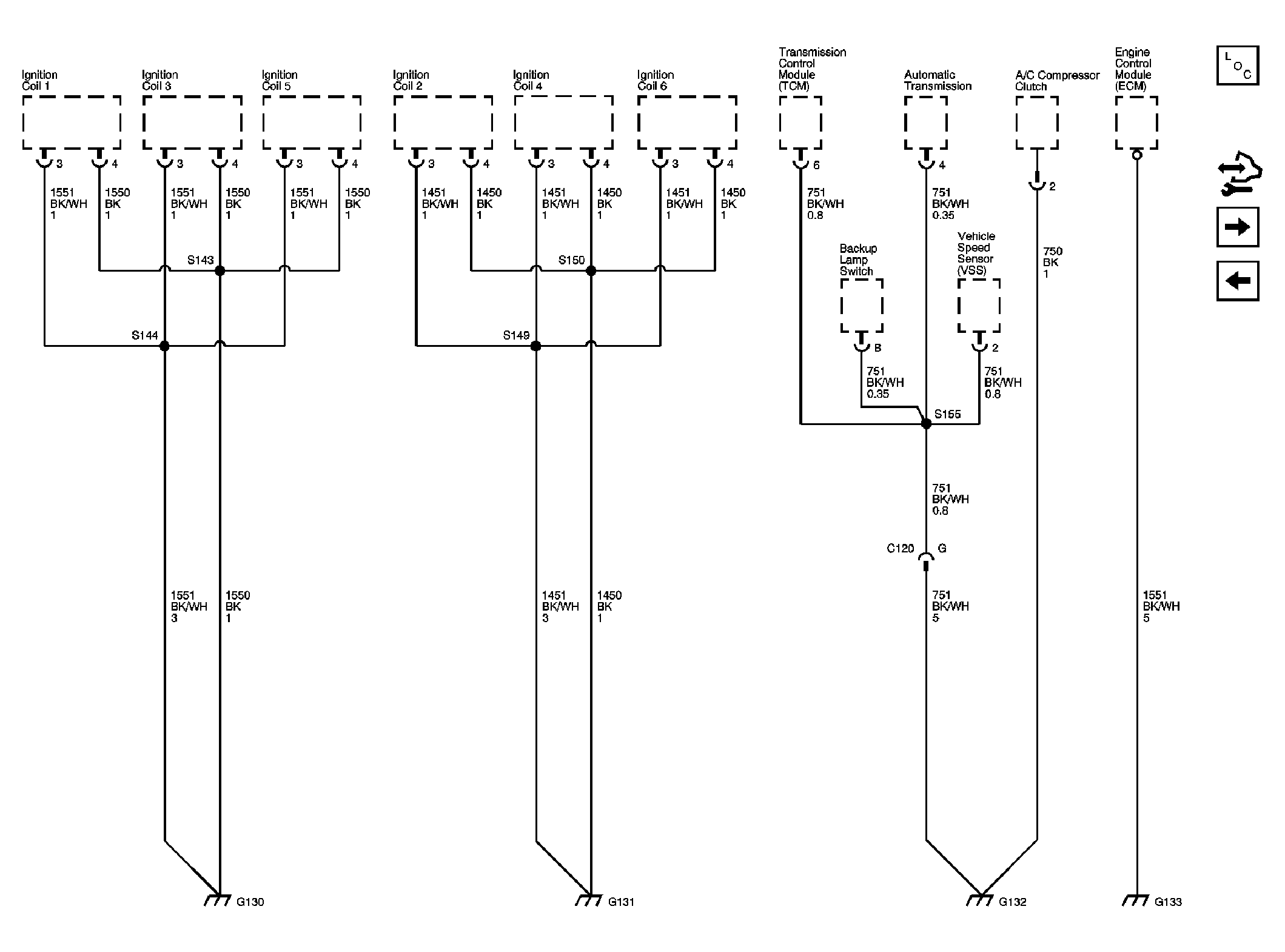

Fig 5: Ground Distribution Schematics - G130, G131, G132, and G133 (LP1/LY7)

Courtesy of GENERAL MOTORS CORP.

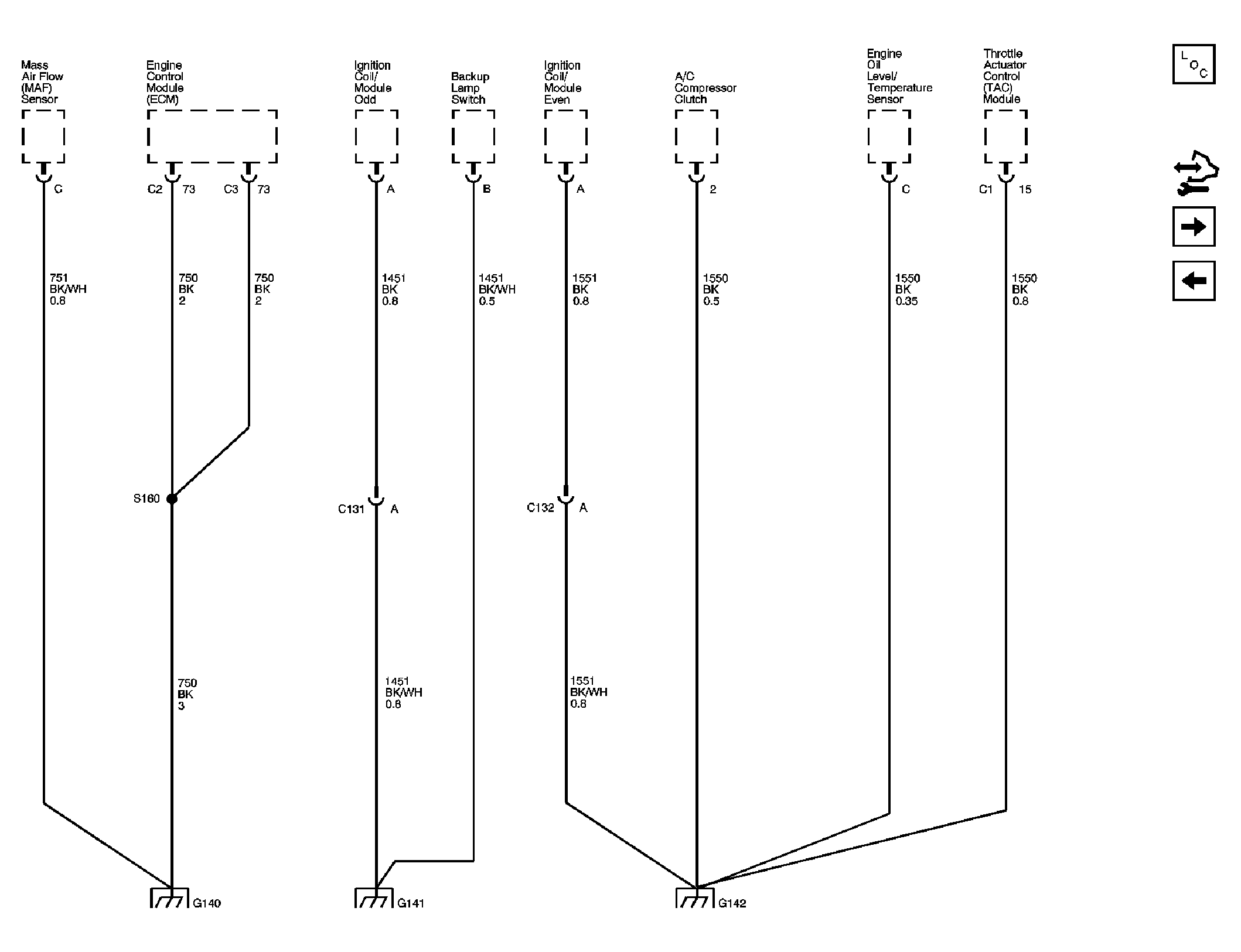

Fig 6: Ground Distribution Schematics - G140, G141, and G142 (LS2)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ground Distribution Schematics - G200

Courtesy of GENERAL MOTORS CORP.

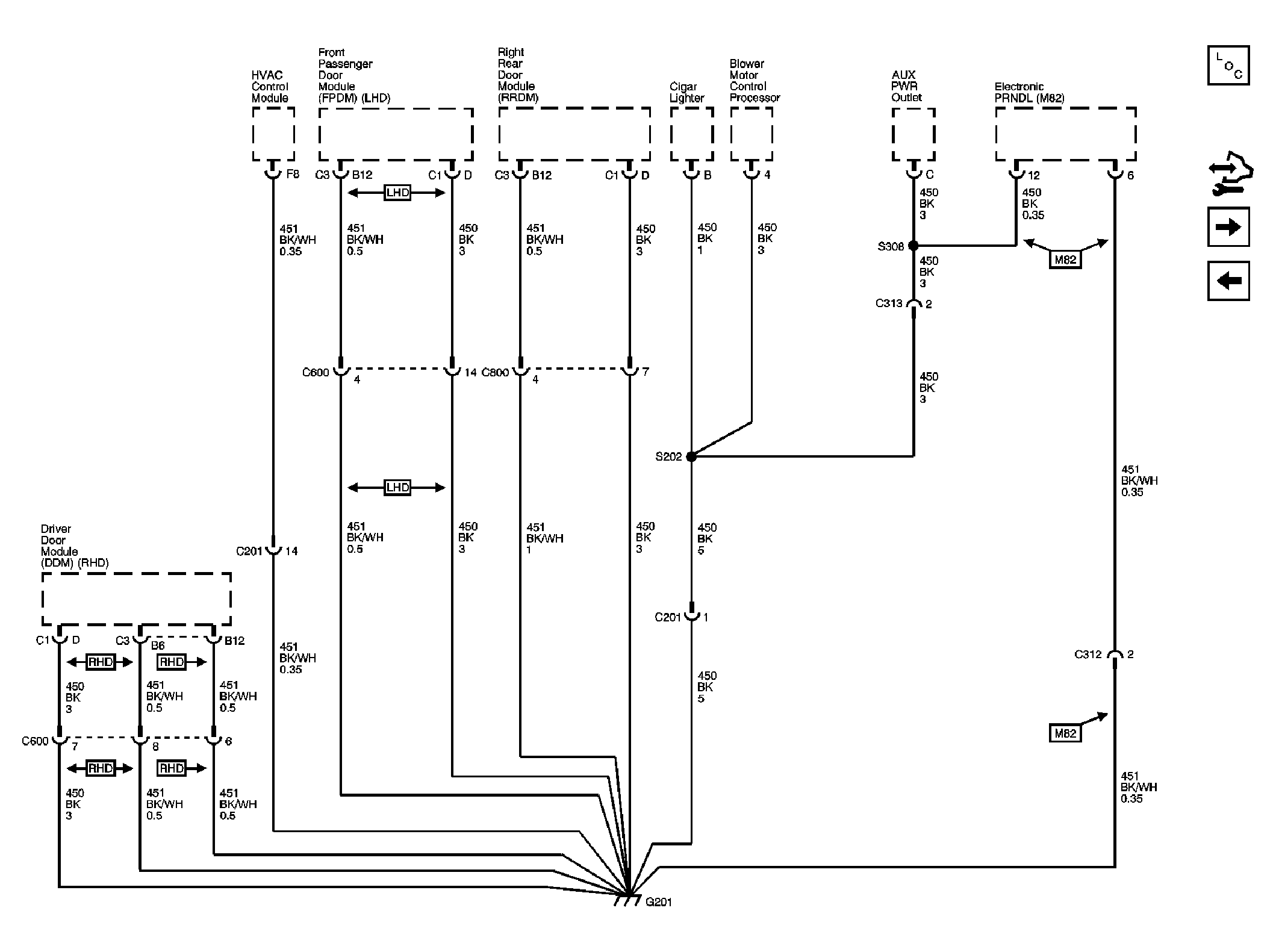

Fig 8: Ground Distribution Schematics - G201

Courtesy of GENERAL MOTORS CORP.

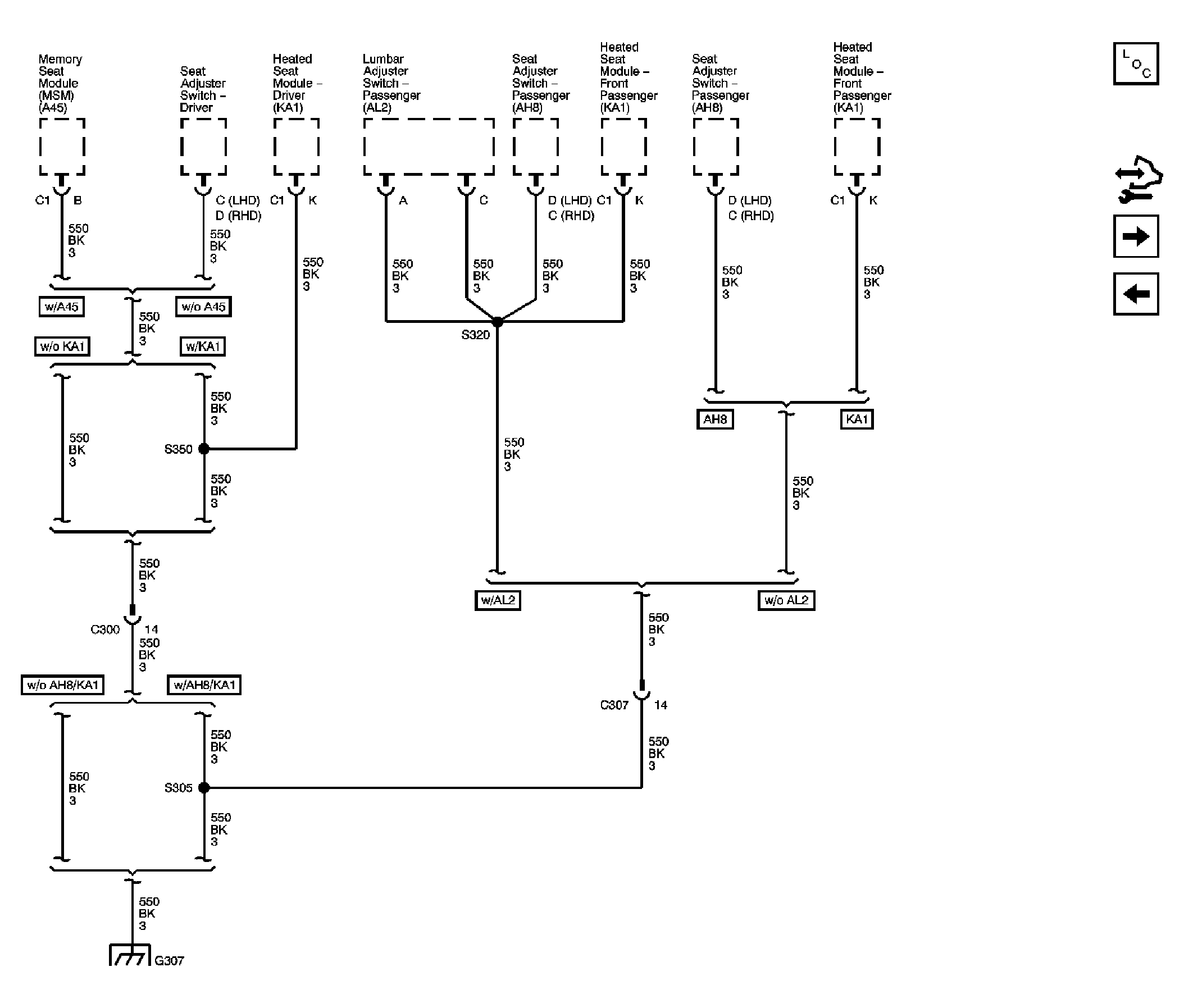

Fig 9: Ground Distribution Schematics - G307

Courtesy of GENERAL MOTORS CORP.

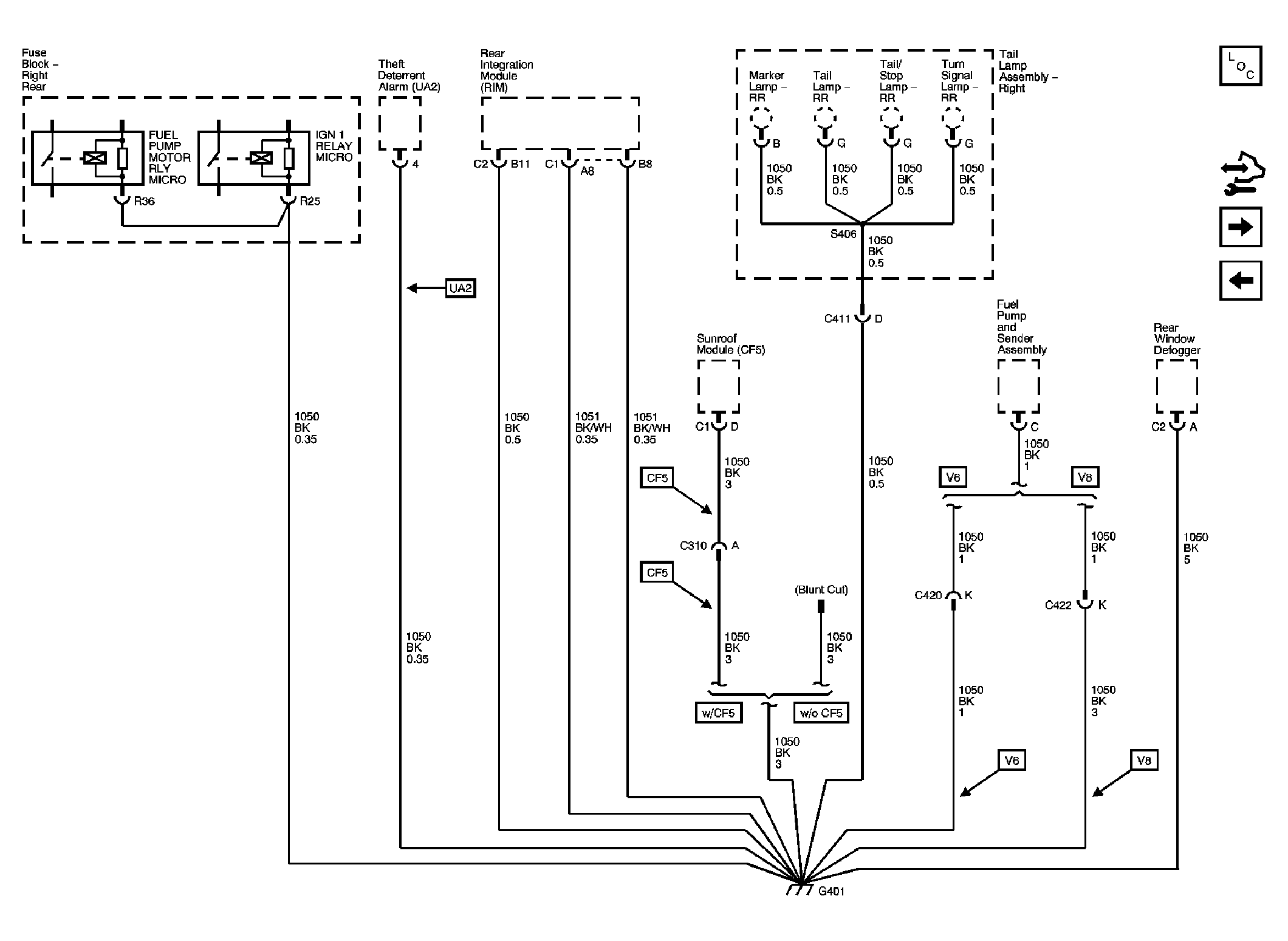

Fig 10: Ground Distribution Schematics - G401

Courtesy of GENERAL MOTORS CORP.

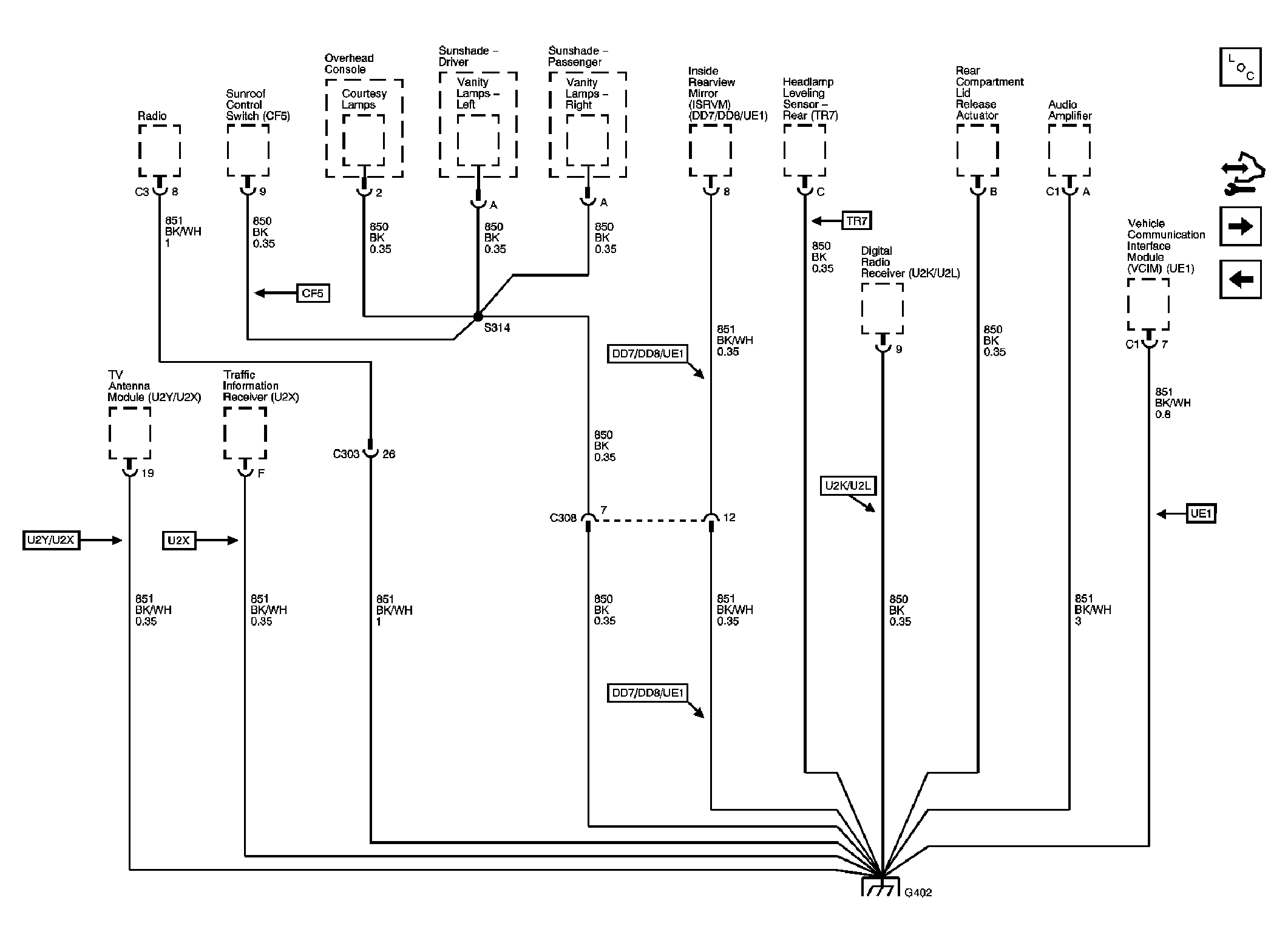

Fig 11: Ground Distribution Schematics - G402 1 of 2

Courtesy of GENERAL MOTORS CORP.

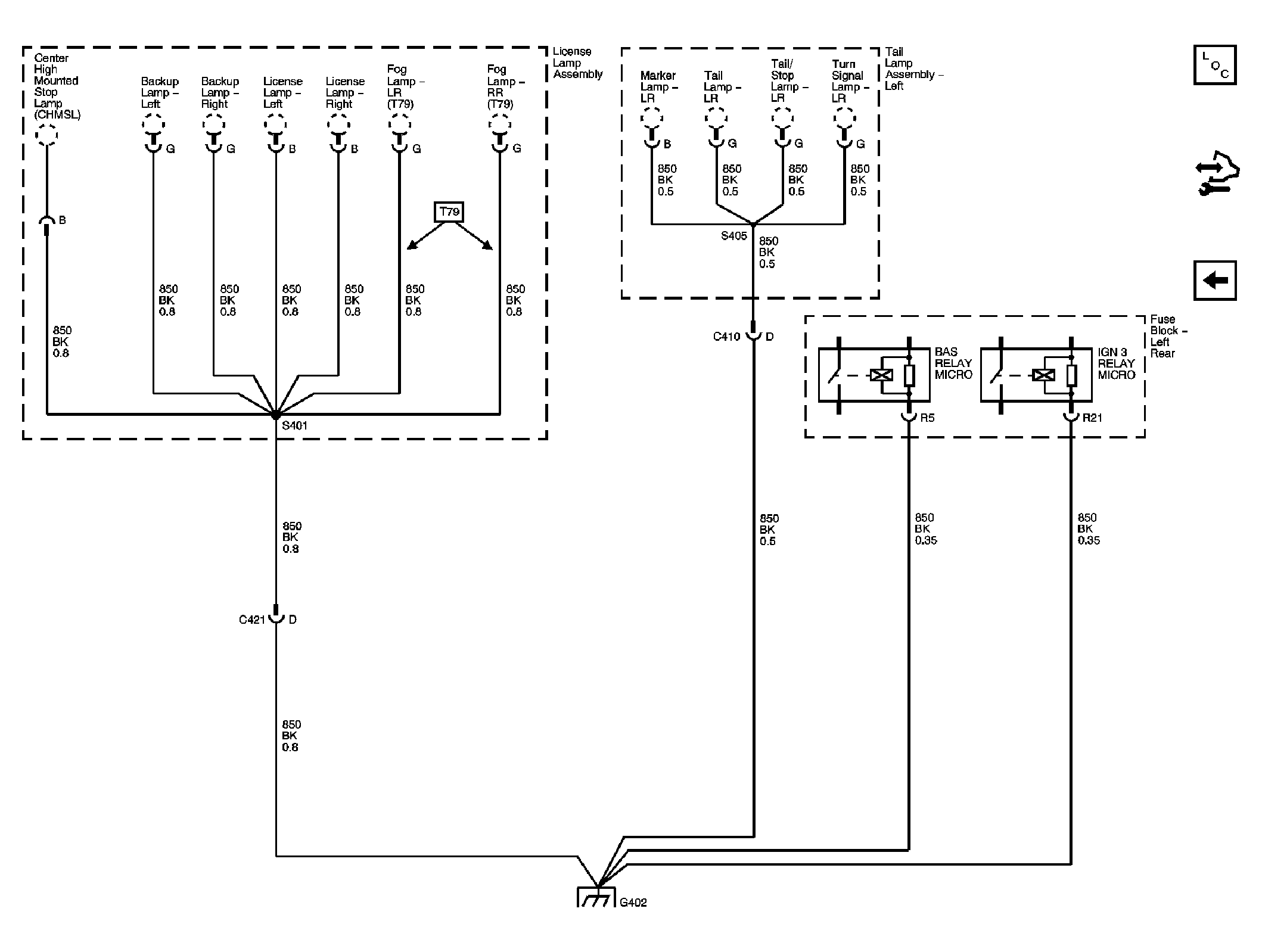

Fig 12: Ground Distribution Schematics - G402 2 of 2

Courtesy of GENERAL MOTORS CORP.
