Passenger Seat Schematics

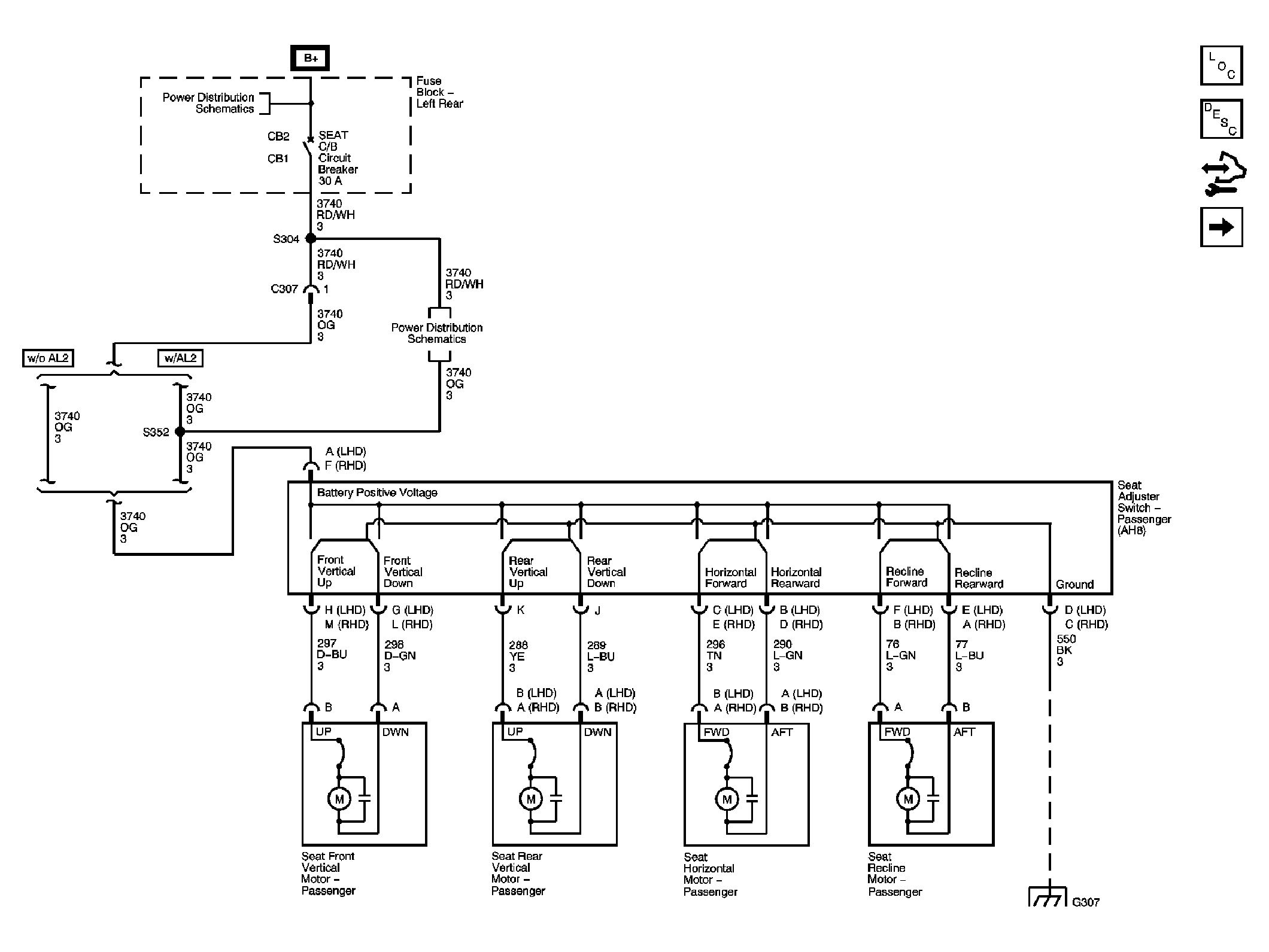

Fig 1: Power Seat Schematics - Messenger (AH8)

GM1787424

Courtesy of GENERAL MOTORS CORP.

Fig 2: Power Lumbar Schematics - Passenger (AL2)

GM1787429

Courtesy of GENERAL MOTORS CORP.
