Driver Seat Schematics

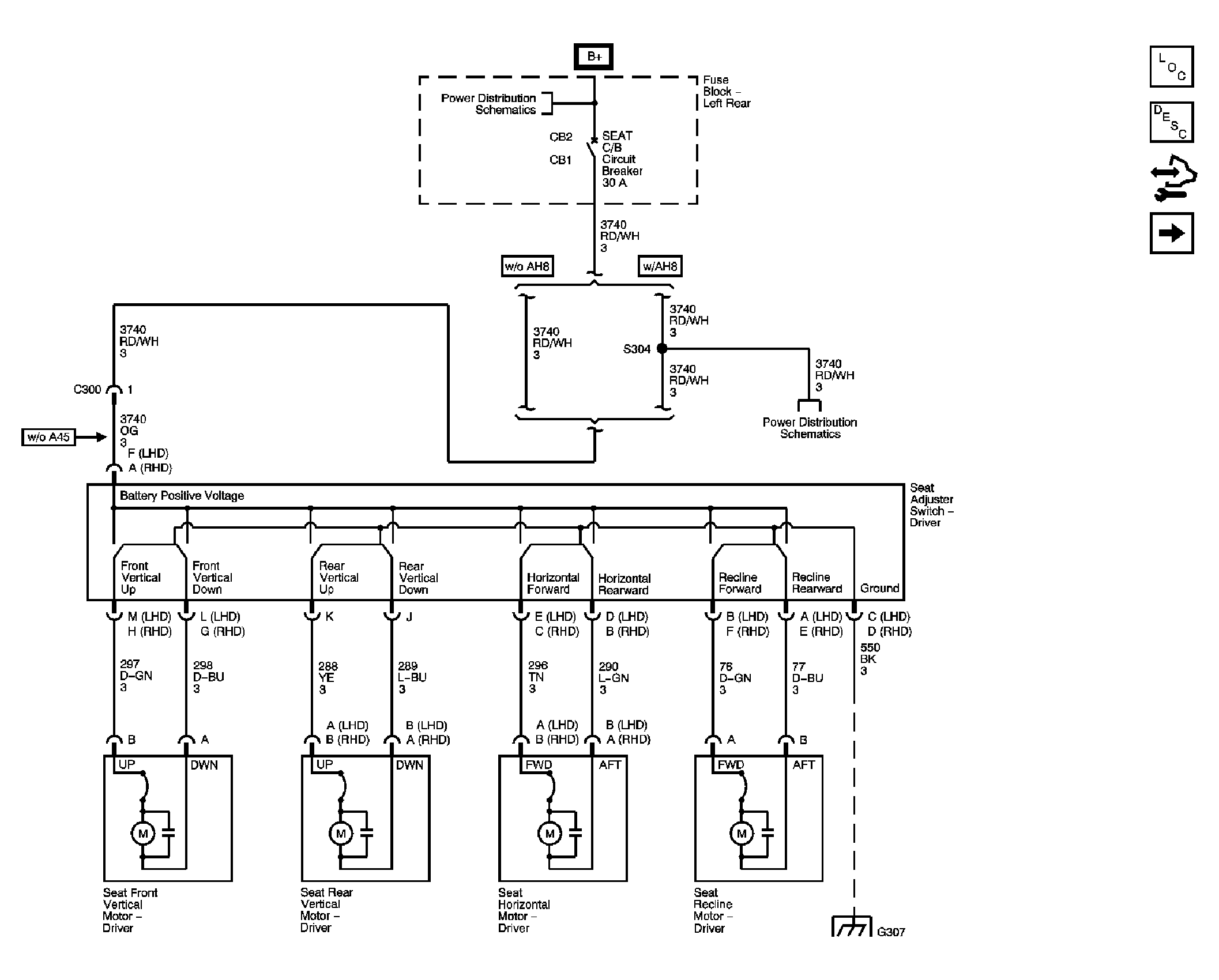

Fig 1: Power Seat Schematics - Driver
GM1787368Courtesy of GENERAL MOTORS CORP.
Fig 2: Memory Seat Module (MSM) Power, Ground, and Driver Seat Adjuster Switch Schematics (A45)
GM1471168Courtesy of GENERAL MOTORS CORP.

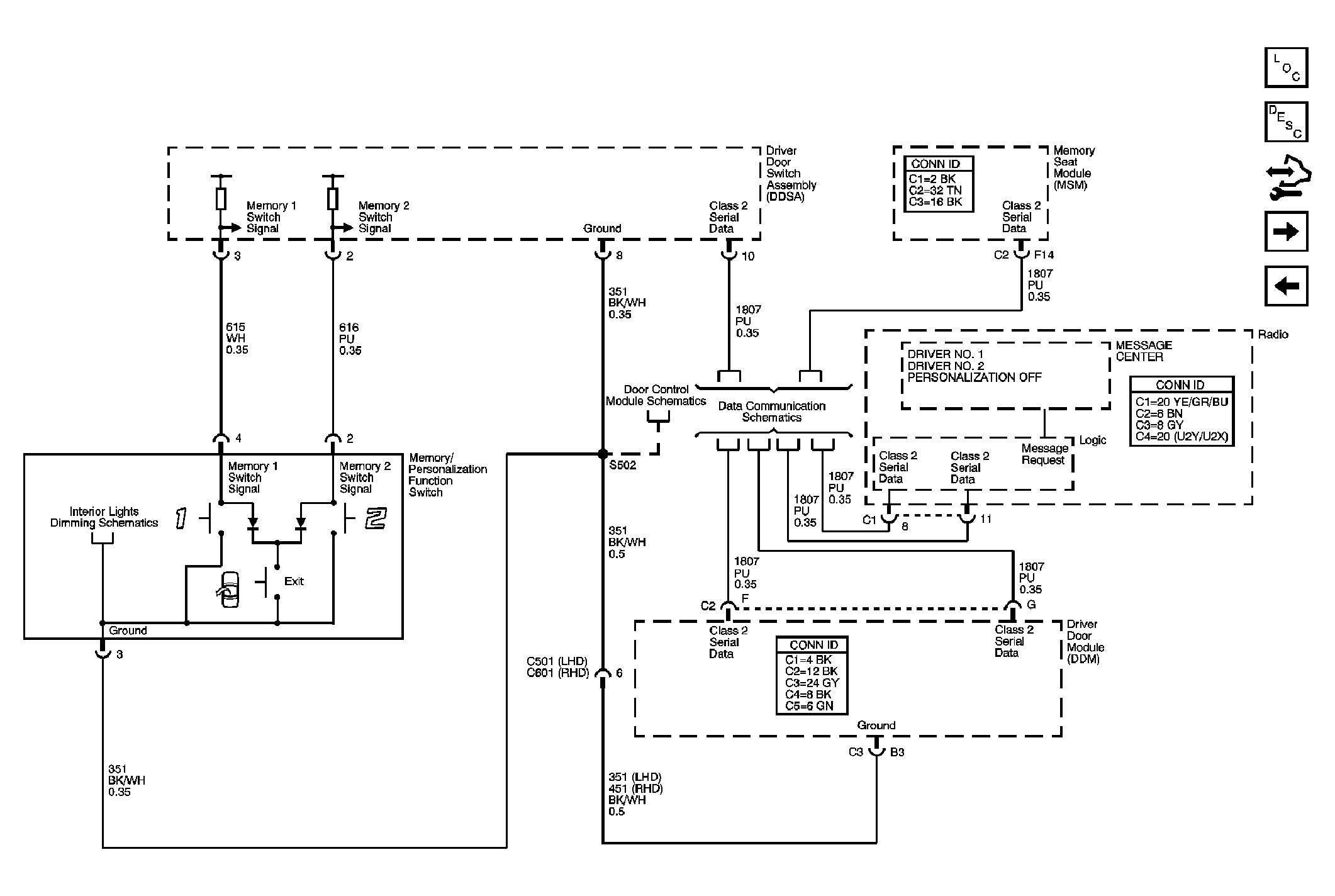

Fig 3: Memory/Personalization Function Switch Schematics (A45)
GM1787407Courtesy of GENERAL MOTORS CORP.

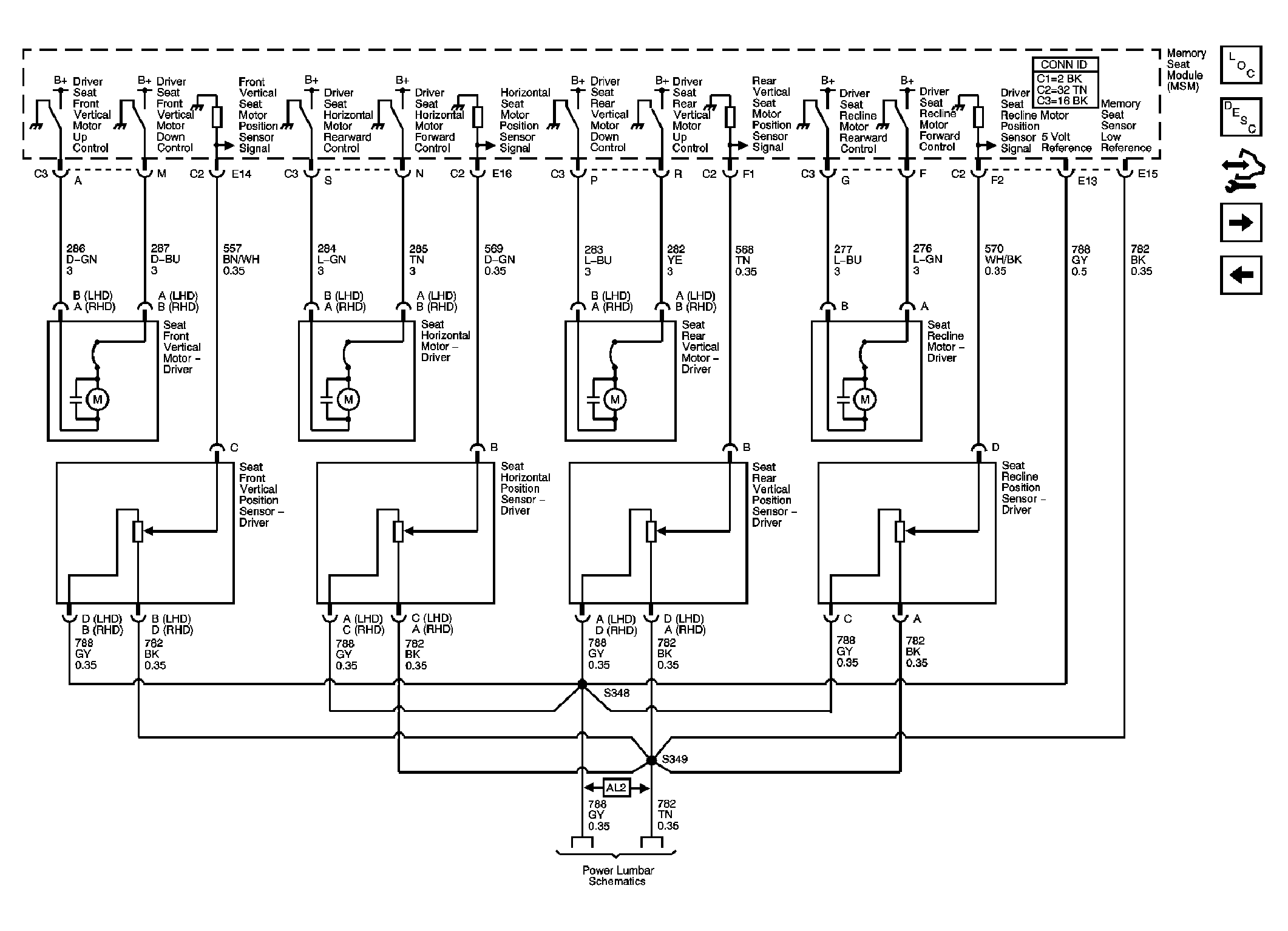

Fig 4: Memory Seat Position Sensors and Motors Schematics (A45)
GM1787411Courtesy of GENERAL MOTORS CORP.
Fig 5: Power Lumbar Schematics (AL2)
GM1471175Courtesy of GENERAL MOTORS CORP.
